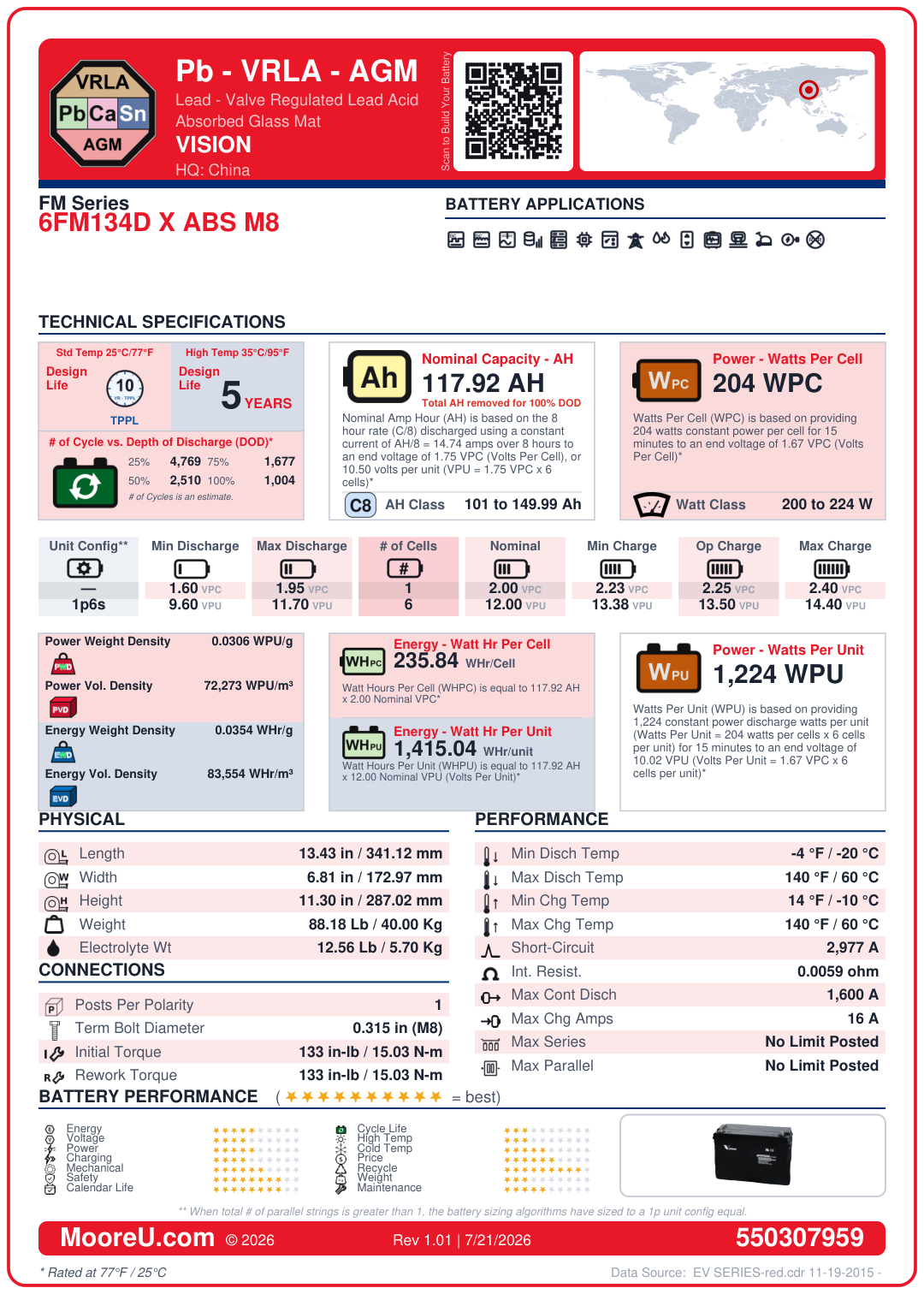

Furnish New Battery Vision FM Series 6FM134D X ABS M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Vision FM Series 6FM134D X ABS M8
$546.35
Build my Battery
Recycle My Battery
Furnish New Battery Vision FM Series 6FM134D X ABS M8
| Battery Model | Vision FM Series 6FM134D X ABS M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 117.92 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.45) |
| Discharge VPC | Min: 1.6, Max: 1.92 |
| Operational Temp Comp | -0.001 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -10°C to 60°C |
| ISC Amps | 2977 |
| Internal Resistance | 0.0059 Ohms |
| Dimensions (L x W x H) | 13.43 x 6.81 x 11.3 in |
| Weight | 88.18 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 1600 Amps |
| Max Charge Amps | 16 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 204 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 12.56 lbs |
