Furnish New Battery Vision Iron V Series LFP12 80EV ABS M8

Technology: Li_LFP.png
Furnish New Battery Vision Iron V Series LFP12 80EV ABS M8

$936.04

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Vision Iron V Series LFP12 80EV ABS M8

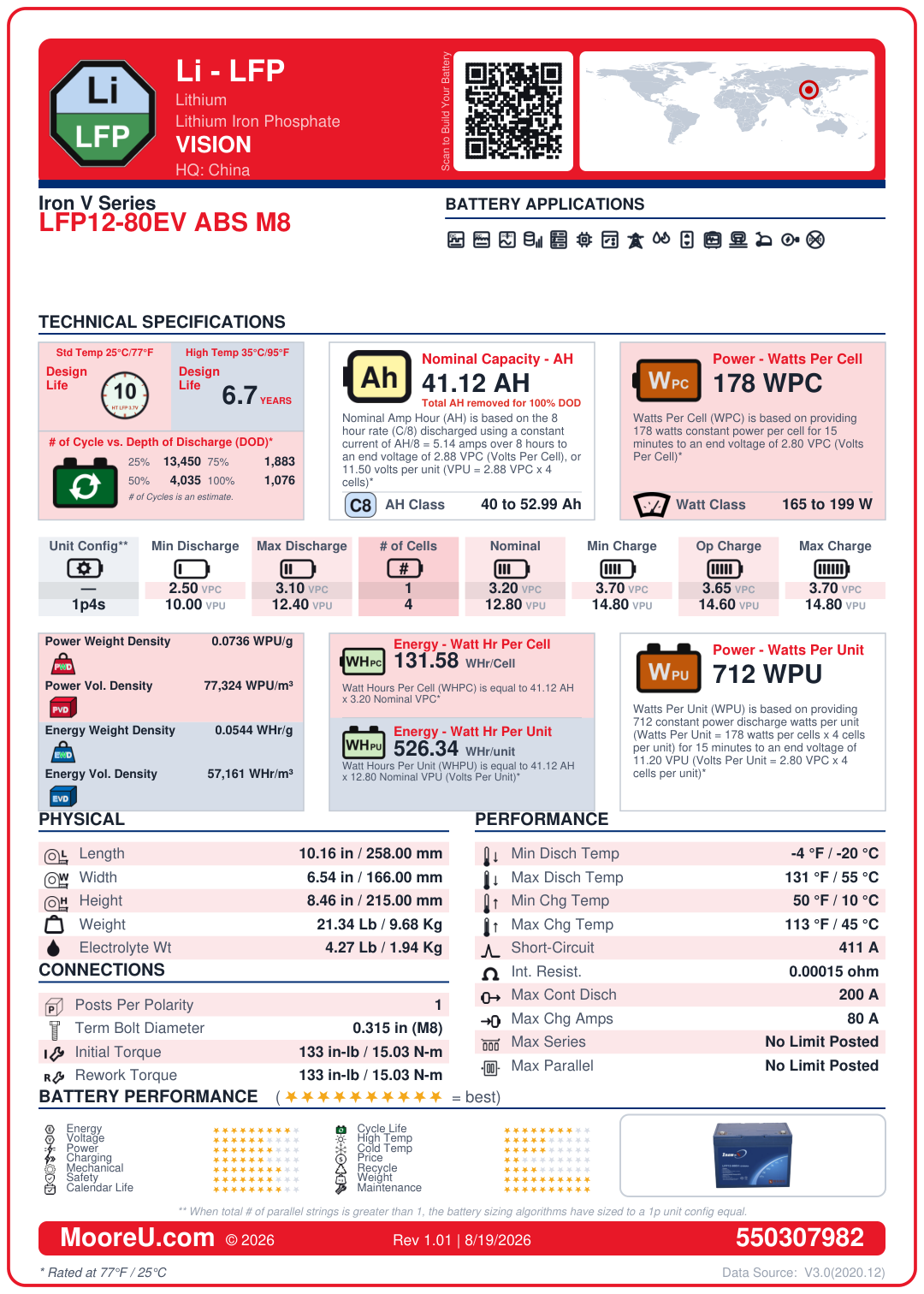

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Vision Iron V Series LFP12 80EV ABS M8
Adjustment	1
AH Per String	41.12
AH Per String Rating	8 hr @ 2.875 VPC
Cells Per Unit	4
Nominal VPC	3.2
Model KWH	1
Charge VPC	3.65 (Min: 3.65, Max: 3.65)
Discharge VPC	Min: 2.7, Max: 3.05
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	10°C to 45°C
ISC Amps	411
Internal Resistance	0.00015 Ohms
Dimensions (L x W x H)	10.1575 x 6.53543 x 8.46457 in
Weight	21.34075 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	200 Amps
Max Charge Amps	80 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	178
Watts Per Cell Rating	15 min @ 2.8 VPC
Weight of Electrolyte	4.26815 lbs
