Furnish New Battery Vision LFP Series LFP24 40EV ABS M8

Technology: Li_LFP.png
Furnish New Battery Vision LFP Series LFP24 40EV ABS M8

$607.66

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Vision LFP Series LFP24 40EV ABS M8

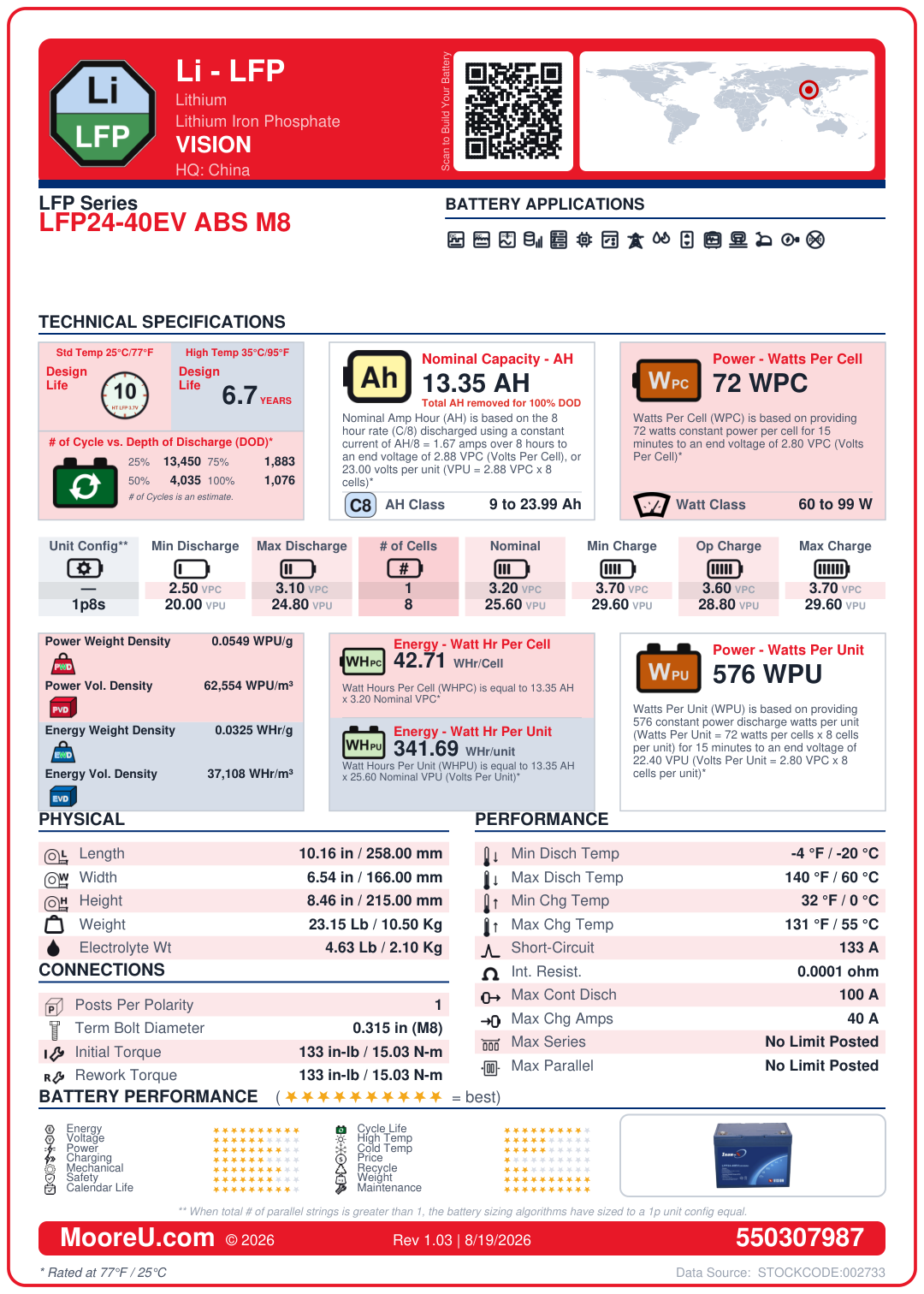

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Vision LFP Series LFP24 40EV ABS M8
Adjustment	1
AH Per String	13.3472
AH Per String Rating	8 hr @ 2.875 VPC
Cells Per Unit	8
Nominal VPC	3.2
Model KWH	0
Charge VPC	3.6 (Min: 3.6, Max: 3.6)
Discharge VPC	Min: 2.7, Max: 3.05
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 55°C
ISC Amps	133
Internal Resistance	0.0001 Ohms
Dimensions (L x W x H)	10.1575 x 6.53543 x 8.46457 in
Weight	23.14854 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	100 Amps
Max Charge Amps	40 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	72
Watts Per Cell Rating	15 min @ 2.8 VPC
Weight of Electrolyte	4.629708 lbs
