Furnish New Battery Vision LFP Series LFP24 60EV ABS M8
Technology: Li_LFP.pngFurnish New Battery Vision LFP Series LFP24 60EV ABS M8
$906.02
Build my Battery
Recycle My Battery

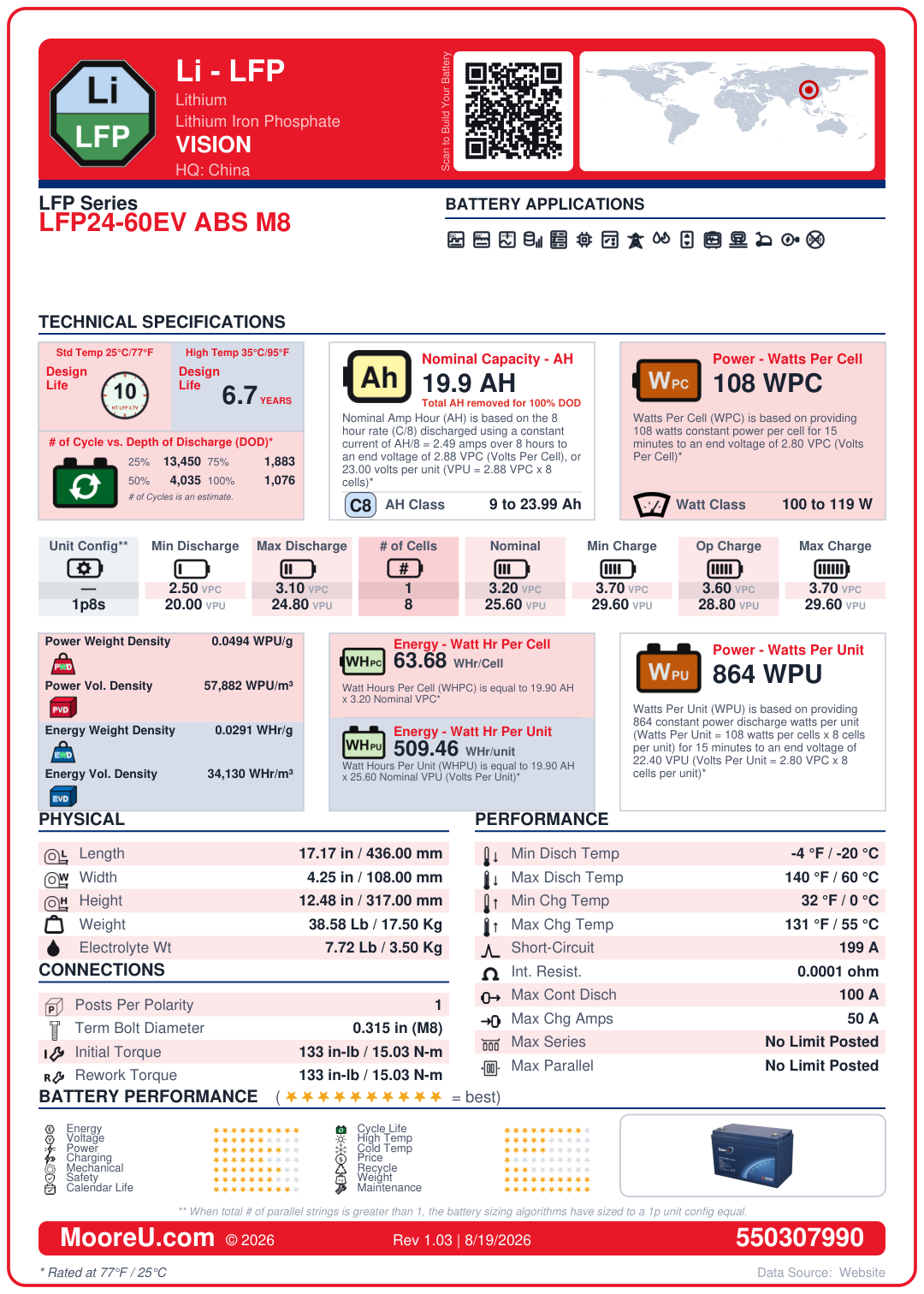

Furnish New Battery Vision LFP Series LFP24 60EV ABS M8
| Battery Model | Vision LFP Series LFP24 60EV ABS M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 19.9008 |
| AH Per String Rating | 8 hr @ 2.875 VPC |
| Cells Per Unit | 8 |
| Nominal VPC | 3.2 |
| Model KWH | 1 |
| Charge VPC | 3.6 (Min: 3.6, Max: 3.6) |
| Discharge VPC | Min: 2.7, Max: 3.05 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 55°C |
| ISC Amps | 199 |
| Internal Resistance | 0.0001 Ohms |
| Dimensions (L x W x H) | 17.1654 x 4.25197 x 12.4803 in |
| Weight | 38.5809 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3149 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 100 Amps |
| Max Charge Amps | 50 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 108 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 7.71618 lbs |
