Furnish New Battery Vision SNA Series SNA12 75 PP M6

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Vision SNA Series SNA12 75 PP M6

$459.04

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Vision SNA Series SNA12 75 PP M6

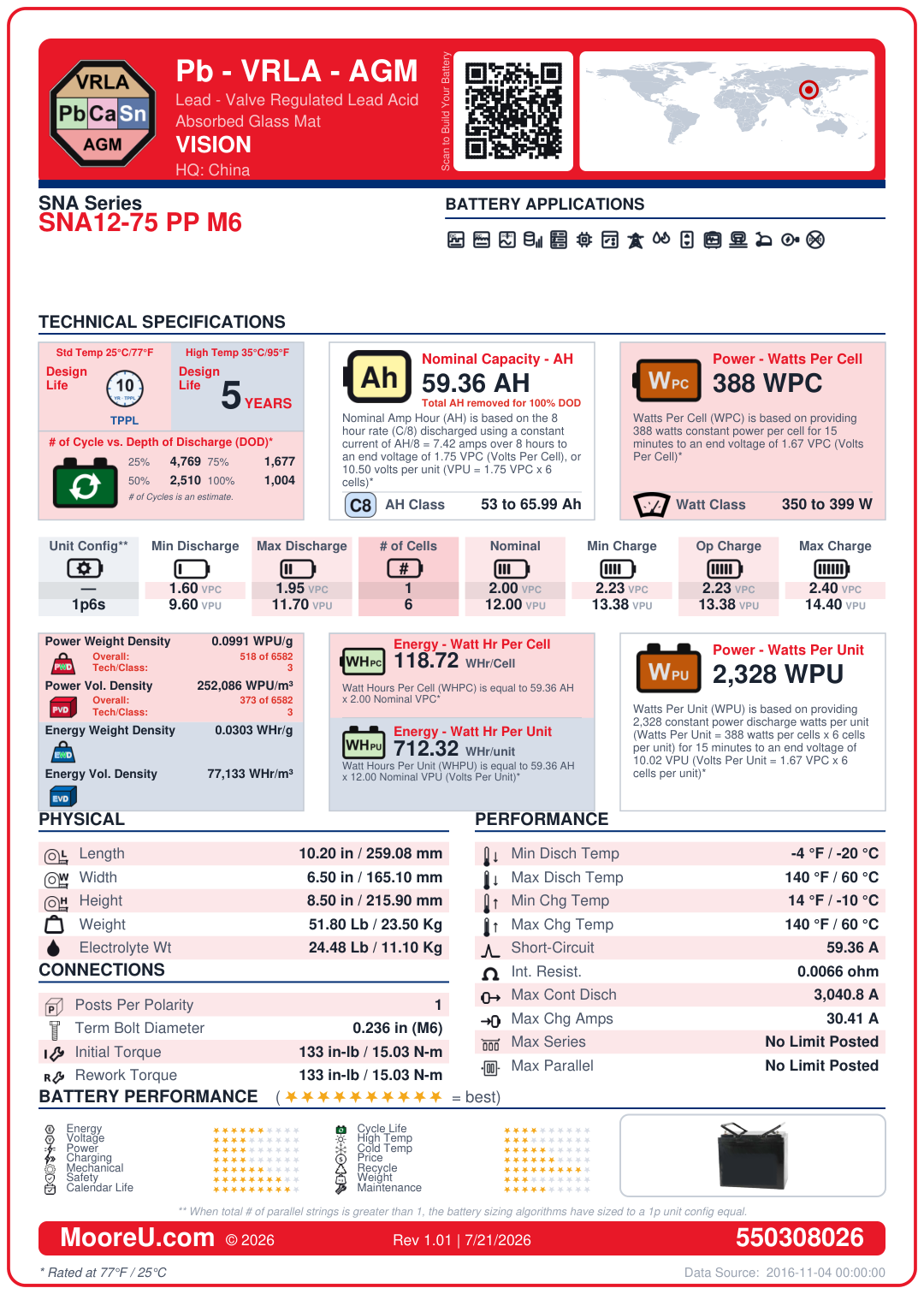

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Vision SNA Series SNA12 75 PP M6
Adjustment	1
AH Per String	59.36
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.3 (Min: 2.3, Max: 2.35)
Discharge VPC	Min: 1.6, Max: 1.92
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	-10°C to 60°C
ISC Amps	59.36
Internal Resistance	0.0066 Ohms
Dimensions (L x W x H)	10.2 x 6.5 x 8.5 in
Weight	51.8 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	AT
FOB	T
Max Continuous Discharge	3040.8 Amps
Max Charge Amps	30.408 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	388
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	24.48 lbs
