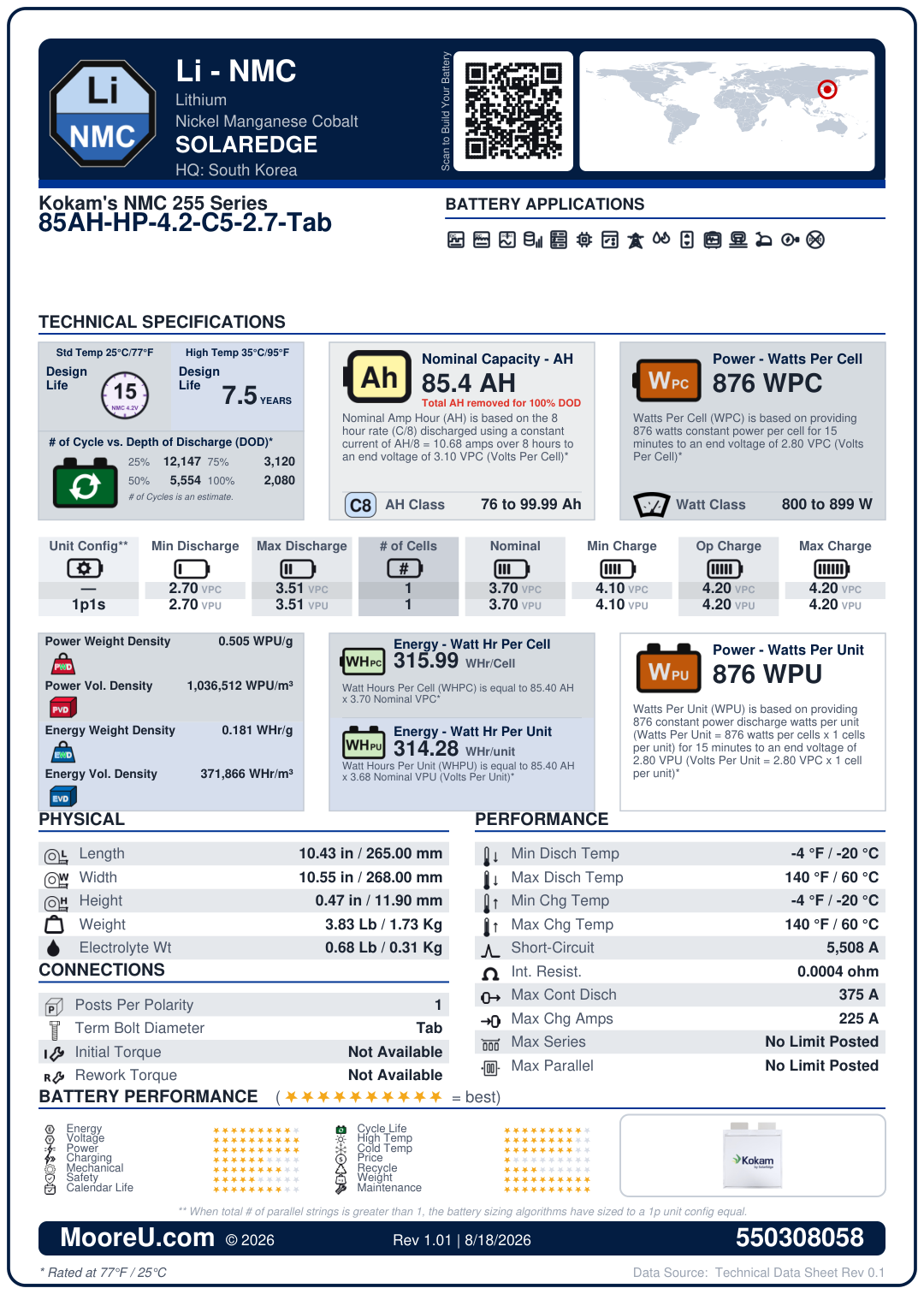

Furnish New Battery Kokam NMC 255 Series 85AH HP 4 2 C5 2 7 Tab
Technology: Li_NMC.pngFurnish New Battery Kokam NMC 255 Series 85AH HP 4 2 C5 2 7 Tab
$992.81
Build my Battery
Recycle My Battery
Furnish New Battery Kokam NMC 255 Series 85AH HP 4 2 C5 2 7 Tab
| Battery Model | Kokam NMC 255 Series 85AH HP 4 2 C5 2 7 Tab |
|---|---|
| Adjustment | 1 |
| AH Per String | 85.402 |
| AH Per String Rating | 8 hr @ 3.105 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.68 |
| Model KWH | 0 |
| Charge VPC | 4.2 (Min: 4.2, Max: 4.2) |
| Discharge VPC | Min: 2.7, Max: 3.51 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | -20°C to 60°C |
| ISC Amps | 5508 |
| Internal Resistance | 0.0004 Ohms |
| Dimensions (L x W x H) | 10.4331 x 10.5512 x 0.4685039 in |
| Weight | 3.5825118 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Tab mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Tab |
| FOB | T |
| Max Continuous Discharge | 375 Amps |
| Max Charge Amps | 225 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 876 |
| Watts Per Cell Rating | 15 min @ 2.8 VPC |
| Weight of Electrolyte | 0.67681914 lbs |
| Part Number | Description | Dimensions (L x W x H) | Max Capacity |
|---|---|---|---|
| Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle | 29.000 x 14.500 x 10.82 in |
4 units |
| Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 10.82 in |
12 units |
| Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a | 28.500 x 26.250 x 10.82 in |
8 units |
| Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated | 28.500 x 26.250 x 10.82 in |
8 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
8 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
8 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
8 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
8 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
8 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
8 units |
