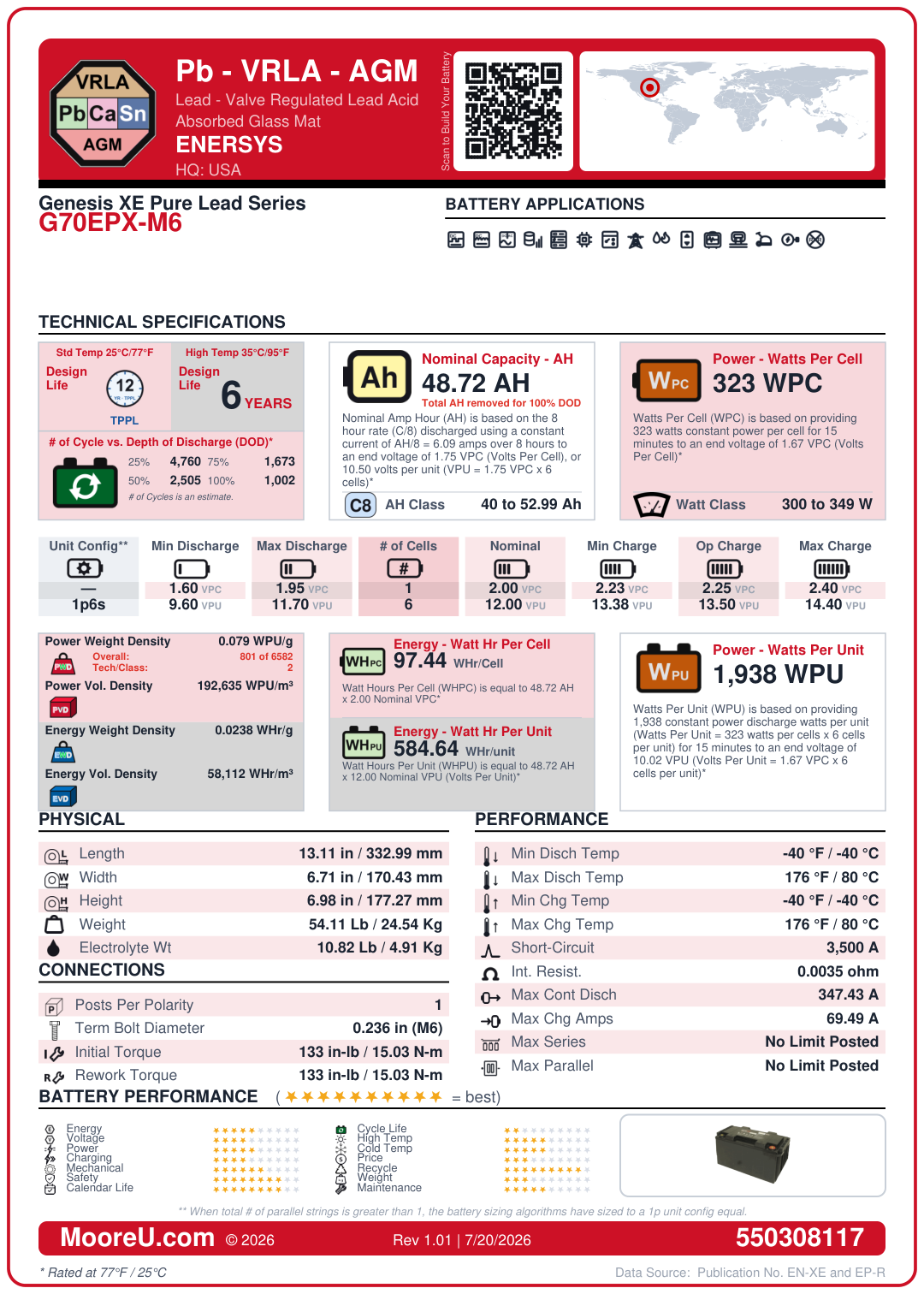

Furnish New Battery Enersys Genesis Pure Lead Series G70EPX M6

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Enersys Genesis Pure Lead Series G70EPX M6

$191.53

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Enersys Genesis Pure Lead Series G70EPX M6

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Enersys Genesis Pure Lead Series G70EPX M6
Adjustment	1
AH Per String	48.72
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.45, Max: 2.5)
Discharge VPC	Min: 1.5, Max: 1.94
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-40°C to 80°C
Charge Temp Range	-40°C to 80°C
ISC Amps	3500
Internal Resistance	0.0035 Ohms
Dimensions (L x W x H)	13.11 x 6.71 x 6.979 in
Weight	54.1057 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	347.43 Amps
Max Charge Amps	69.486 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	323
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	10.82114 lbs
