Furnish New Battery Enersys PowerSafe Pure Lead Carbon Series SBS XC Plus 190F FT M6M
Technology: Pb_Sn_VRLA_AGM.pngFurnish New Battery Enersys PowerSafe Pure Lead Carbon Series SBS XC Plus 190F FT M6M
$1,096.53
Build my Battery
Recycle My Battery
Furnish New Battery Enersys PowerSafe Pure Lead Carbon Series SBS XC Plus 190F FT M6M

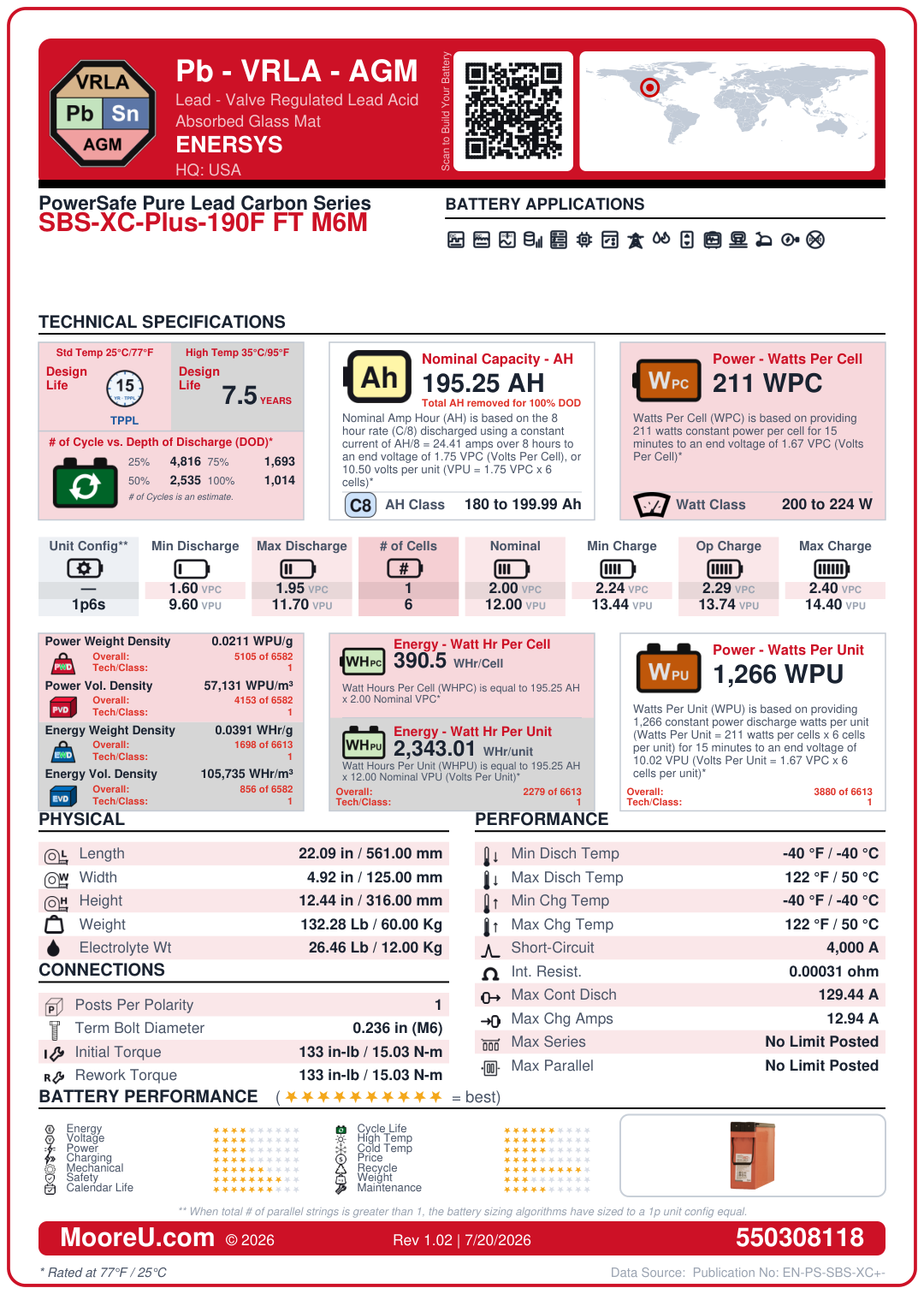

| Battery Model | Enersys PowerSafe Pure Lead Carbon Series SBS XC Plus 190F FT M6M |
|---|---|
| Adjustment | 1 |
| AH Per String | 195.2512 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -40°C to 50°C |
| Charge Temp Range | -40°C to 50°C |
| ISC Amps | 4000 |
| Internal Resistance | 0.00031 Ohms |
| Dimensions (L x W x H) | 22.0866 x 4.92126 x 12.4409 in |
| Weight | 132.277 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 129.44 Amps |
| Max Charge Amps | 12.944 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 211 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 26.4554 lbs |
