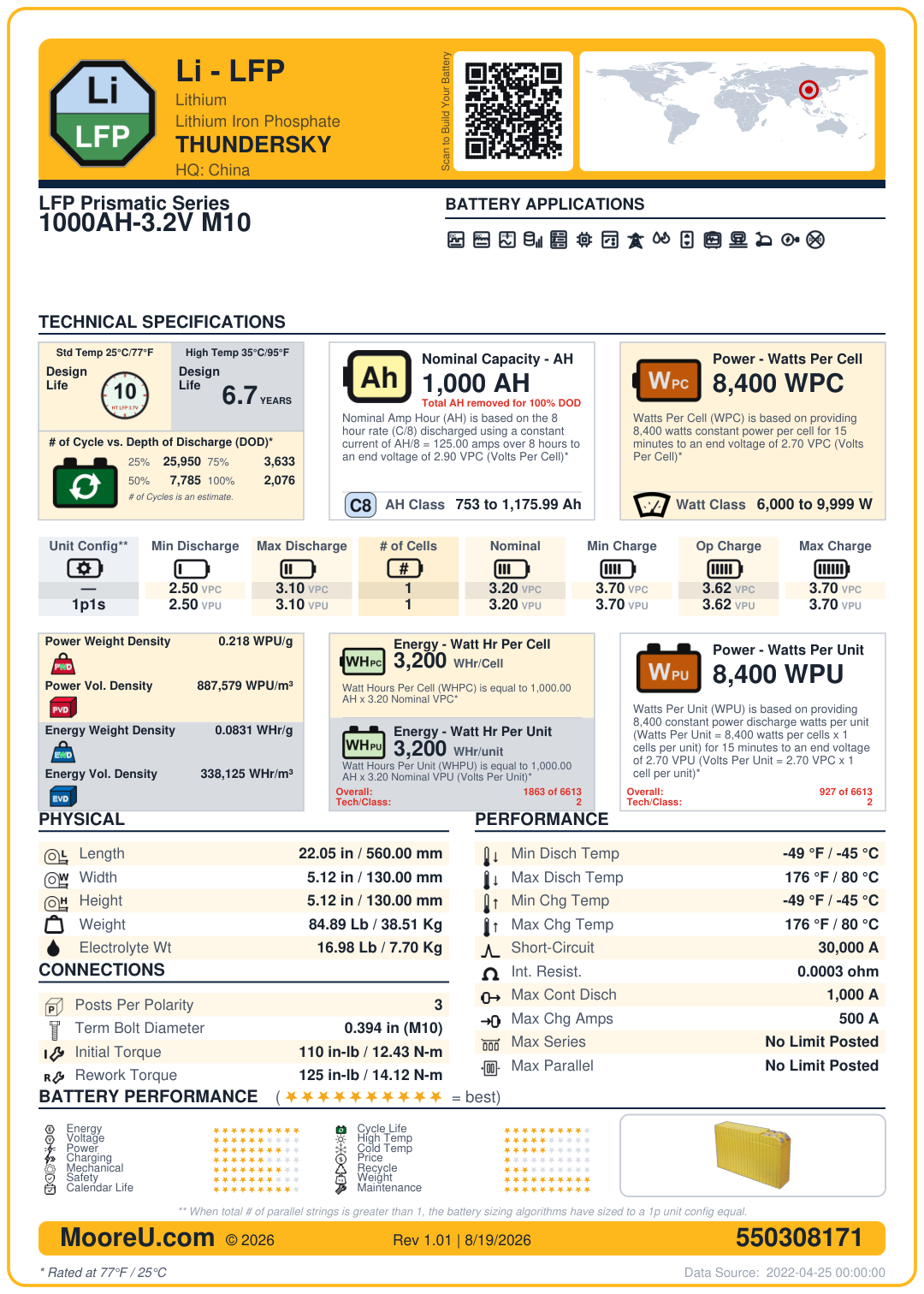

Furnish New Battery Thundersky Winston LFP Prismatic Series 1000AH 3 2V M10
Technology: Li_LFP.pngFurnish New Battery Thundersky Winston LFP Prismatic Series 1000AH 3 2V M10
$4,268.16
Build my Battery
Recycle My Battery
Furnish New Battery Thundersky Winston LFP Prismatic Series 1000AH 3 2V M10
| Battery Model | Thundersky Winston LFP Prismatic Series 1000AH 3 2V M10 |
|---|---|
| Adjustment | 1 |
| AH Per String | 1000 |
| AH Per String Rating | 8 hr @ 2.9 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.2 |
| Model KWH | 3 |
| Charge VPC | 3.625 (Min: 3.625, Max: 3.625) |
| Discharge VPC | Min: 2.7, Max: 3.1 |
| Operational Temp Comp | -0.002 V/°C/cell |
| Cycle Temp Comp | -0.003 V/°C/cell |
| Discharge Temp Range | -45°C to 80°C |
| Charge Temp Range | -45°C to 80°C |
| ISC Amps | 30000 |
| Internal Resistance | 0.0003 Ohms |
| Dimensions (L x W x H) | 22.0472 x 5.1181 x 5.1181 in |
| Weight | 84.8925 lbs |
| Number of Posts | 3 |
| Terminal Bolt Diameter | 0.393701 in (M10 mm) |
| Torque (Initial / Maintenance) | 110 / 125 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 1000 Amps |
| Max Charge Amps | 500 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 8400 |
| Watts Per Cell Rating | 15 min @ 2.7 VPC |
| Weight of Electrolyte | 16.9785 lbs |
