Furnish New Battery Sinopoly LFP Prismatic Series 3 2V 300AH M8

Technology: Li_LFP.png
Furnish New Battery Sinopoly LFP Prismatic Series 3 2V 300AH M8

$1,280.45

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Sinopoly LFP Prismatic Series 3 2V 300AH M8

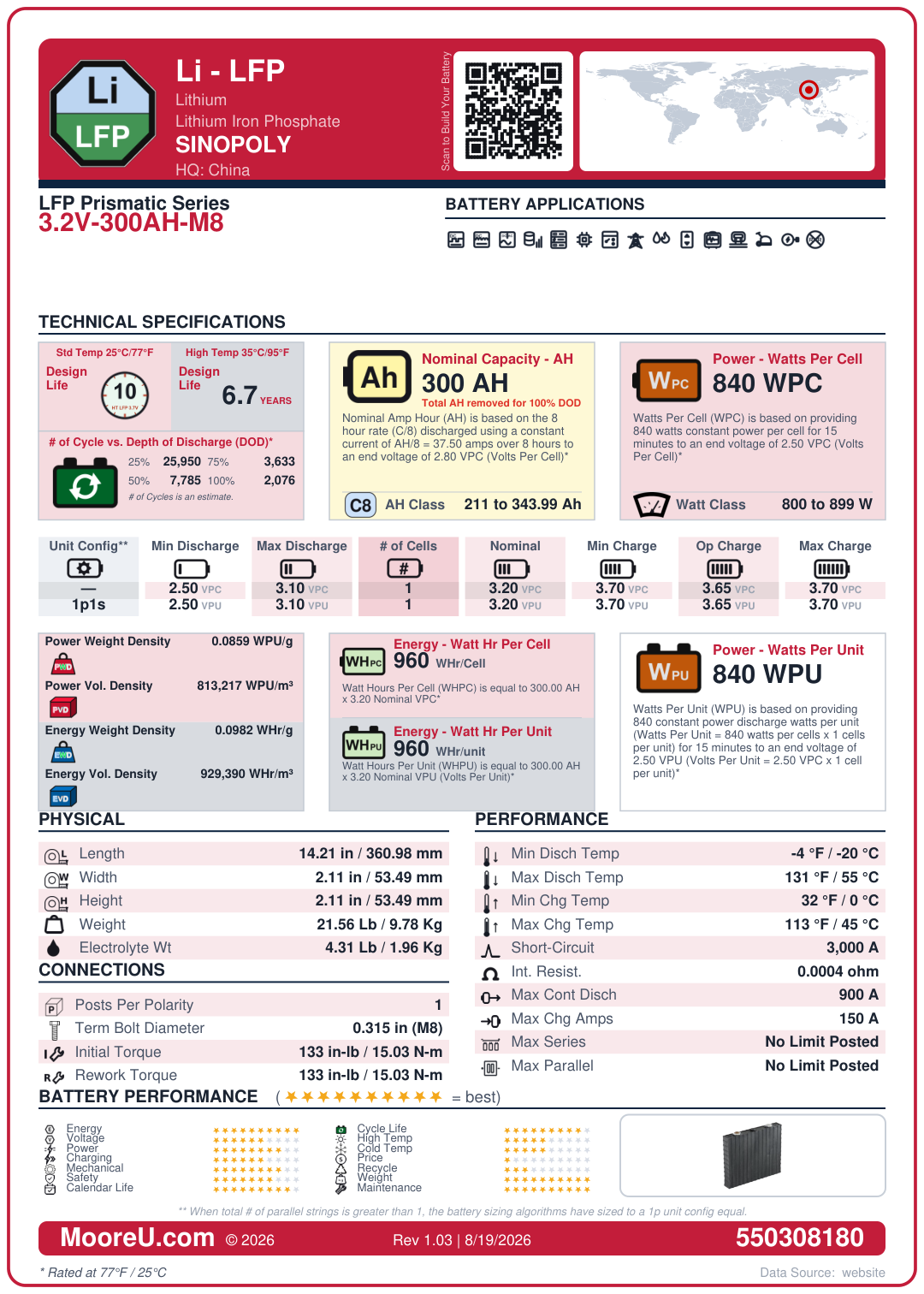

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Sinopoly LFP Prismatic Series 3 2V 300AH M8
Adjustment	1
AH Per String	300
AH Per String Rating	8 hr @ 2.8 VPC
Cells Per Unit	1
Nominal VPC	3.2
Model KWH	1
Charge VPC	3.65 (Min: 3.65, Max: 3.65)
Discharge VPC	Min: 2.5, Max: 3.1
Operational Temp Comp	-0.002 V/°C/cell
Cycle Temp Comp	-0.003 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	0°C to 45°C
ISC Amps	3000
Internal Resistance	0.0004 Ohms
Dimensions (L x W x H)	14.212 x 2.106 x 2.106 in
Weight	21.56 lbs
Number of Posts	1
Terminal Bolt Diameter	0.3149 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	900 Amps
Max Charge Amps	150 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	840
Watts Per Cell Rating	15 min @ 2.5 VPC
Weight of Electrolyte	4.312 lbs
