Furnish New Battery CSB GPL Series GPL12800 M6

Name: Furnish_New_Battery_CSB_GPL_Series_GPL12800_M6
Brand: Pb_VRLA_AGM_500.png
SKU: Furnish_New_Battery_CSB_GPL_Series_GPL12800_M6
Price: 238.63 USD
Availability: InStock

Technology: Pb_VRLA_AGM_500.png
Furnish New Battery CSB GPL Series GPL12800 M6

$238.63

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery CSB GPL Series GPL12800 M6

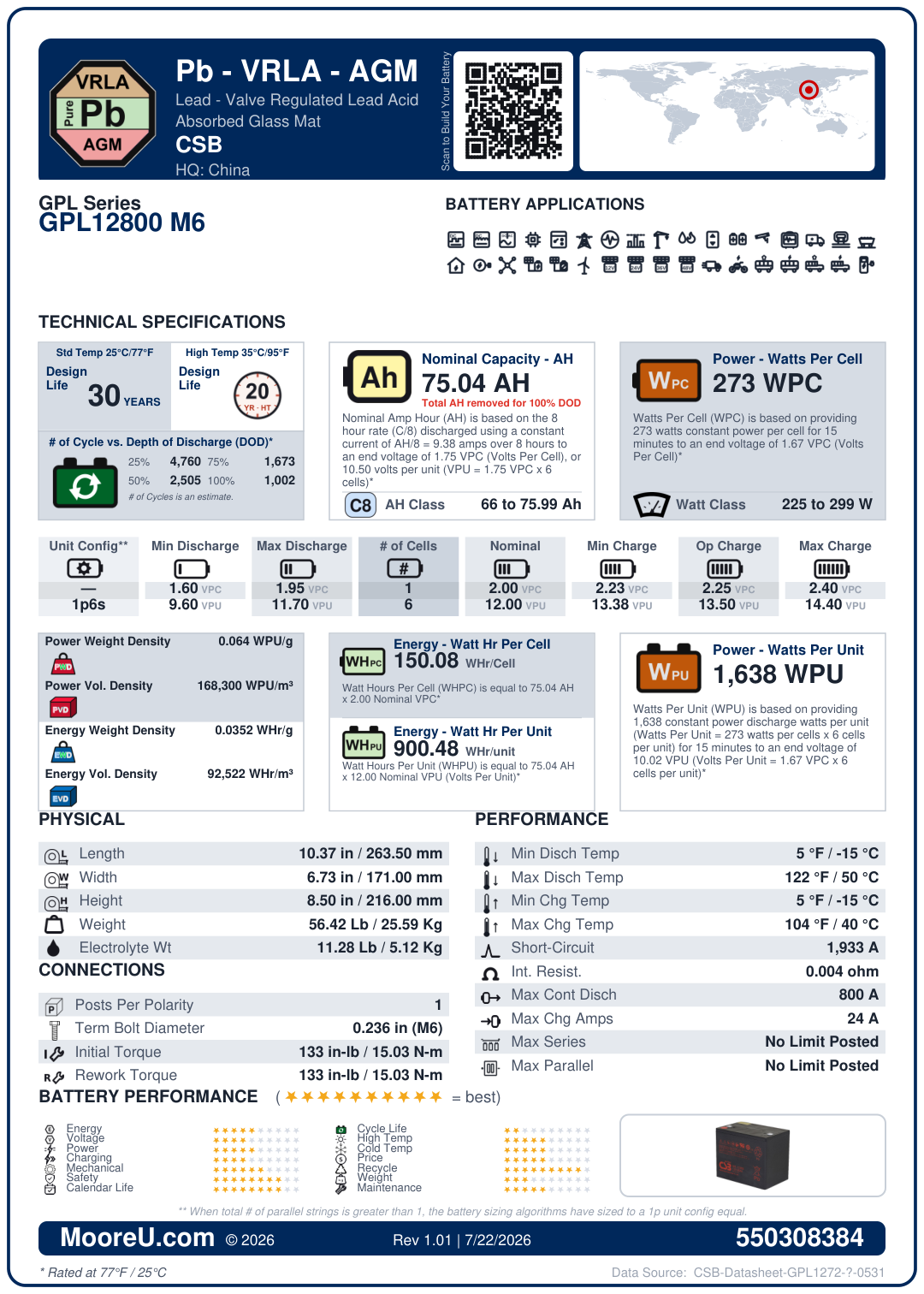

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CSB GPL Series GPL12800 M6
Adjustment	1
AH Per String	75.04
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.85
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 50°C
Charge Temp Range	-15°C to 40°C
ISC Amps	1933
Internal Resistance	0.004 Ohms
Dimensions (L x W x H)	10.37401574 x 6.732283458 x 8.503936999 in
Weight	56.42 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	800 Amps
Max Charge Amps	24 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	273
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	11.284 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	48 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	48 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	48 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	48 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	48 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC55 620WPC 620W UPS12 620MR ccpower.com	na	40.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC43 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	60 units Quantity
Furnish New Battery Enclosure BC25 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 620WPC 620W UPS12 620MR ccpower.com	na	29.000 x 31.500 x 8.94 in	16 units Quantity
Furnish New Battery Enclosure BC39 620WPC 620W UPS12 620MR ccpower.com	na	36.000 x 29.500 x 8.94 in	48 units Quantity
Furnish New Battery Enclosure BC25 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	32 units Quantity
Furnish New Battery Enclosure BC55 400WPC 400W UPS12 400MR ccpower.com	na	40.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC39 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	48 units Quantity
Furnish New Battery Enclosure BC43 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC25 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	16 units Quantity
Furnish New Battery Enclosure BC39 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	48 units Quantity
Furnish New Battery Enclosure BC55 400WPC 400W UPS12 400MR ccpower.com	na	40.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC43 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC25 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	32 units Quantity
Furnish New Battery Enclosure BC55 400WPC 400W UPS12 400MR ccpower.com	na	40.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	16 units Quantity
Furnish New Battery Enclosure BC39 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	48 units Quantity
Furnish New Battery Enclosure BC43 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	16 units Quantity
Furnish New Battery Enclosure BC55 400WPC 400W UPS12 400MR ccpower.com	na	40.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC43 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC25 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	16 units Quantity
Furnish New Battery Enclosure BC39 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	48 units Quantity
Furnish New Battery Enclosure BC25 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	32 units Quantity
Furnish New Battery Enclosure BC55 400WPC 400W UPS12 400MR ccpower.com	na	40.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC39 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	48 units Quantity
Furnish New Battery Enclosure BC43 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	16 units Quantity
Furnish New Battery Enclosure BC55 400WPC 400W UPS12 400MR ccpower.com	na	40.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC43 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	60 units Quantity
Furnish New Battery Enclosure BC25 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 400WPC 400W UPS12 400MR ccpower.com	na	29.000 x 31.500 x 8.52 in	16 units Quantity
Furnish New Battery Enclosure BC39 400WPC 400W UPS12 400MR ccpower.com	na	36.000 x 29.500 x 8.52 in	48 units Quantity
Furnish New Battery Enclosure MNBE A (1 shelf) Group 31 Group 31 midnitesolar.com	Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle	29.000 x 14.500 x 9.64 in	8 units Quantity
Furnish New Battery Enclosure MNBE D (1 shelf) Group 31 Group 31 midnitesolar.com	Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br	34.000 x 15.250 x 9.64 in	12 units Quantity
Furnish New Battery Enclosure MNBE D (2 shelf) Group 31 Group 31 midnitesolar.com	Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br	34.000 x 15.250 x 9.64 in	18 units Quantity
Furnish New Battery Enclosure MNBE D3R (1 shelf) Group 31 Group 31 midnitesolar.com	Rain tight white powder coated aluminum battery enclosure with locking door and two shelves. This unit is vented. MNBE-D holds 8 PVX3050T or 8 golf cart or 8 group 31 batteries. Ships knocked down in two boxes. An aluminum outdoor enclosure which is ident	34.000 x 15.250 x 9.64 in	12 units Quantity
Furnish New Battery Enclosure MNBE C (2 Shelf) Group 31 Group 31 midnitesolar.com	MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two	34.000 x 15.250 x 9.64 in	18 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC14 500WPC 500W 12HX 505 ccpower.com	na	18.440 x 31.750 x 10.7 in	8 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W 12HX505 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W 12HX540 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC14 500WPC 500W 12HX 505 ccpower.com	na	18.440 x 31.750 x 10.7 in	12 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W 12HX505 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W 12HX540 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W 12HX505 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W 12HX540 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC14 500WPC 500W 12HX 505 ccpower.com	na	18.440 x 31.750 x 10.7 in	12 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W 12HX505 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W 12HX540 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC14 500WPC 500W 12HX 505 ccpower.com	na	18.440 x 31.750 x 10.7 in	12 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W 12HX505 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W 12HX540 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC14 500WPC 500W 12HX 505 ccpower.com	na	18.440 x 31.750 x 10.7 in	12 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W 12HX505 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W 12HX540 ccpower.com	na	40.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W 12HX505 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W 12HX540 ccpower.com	na	29.000 x 31.500 x 10.7 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W 12HX505 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W 12HX540 ccpower.com	na	36.000 x 29.500 x 10.7 in	48 units Quantity
Furnish New Battery Enclosure BC14 500WPC 500W 12HX 505 ccpower.com	na	18.440 x 31.750 x 10.7 in	12 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC55 500WPC 500W UPS12 490MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC55 540WPC 540W UPS12 540MR ccpower.com	na	40.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC43 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC43 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	60 units Quantity
Furnish New Battery Enclosure BC25 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	32 units Quantity
Furnish New Battery Enclosure BC25 Spares 500WPC 500W UPS12 490MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC25 Spares 540WPC 540W UPS12 540MR ccpower.com	na	29.000 x 31.500 x 10.93 in	16 units Quantity
Furnish New Battery Enclosure BC39 500WPC 500W UPS12 490MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure BC39 540WPC 540W UPS12 540MR ccpower.com	na	36.000 x 29.500 x 10.93 in	48 units Quantity
Furnish New Battery Enclosure MNBE D (1 shelf) L16 L16 midnitesolar.com	Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br	34.000 x 15.250 x 16.41 in	12 units Quantity
Furnish New Battery Enclosure MNBE C (2 Shelf) L16 L16 midnitesolar.com	MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two	34.000 x 15.250 x 16.41 in	18 units Quantity
Furnish New Battery Enclosure MNBE CL16 (1 Shelf) L16 L16 midnitesolar.com	MNBE-CL16 Battery Enclosure with locking door and two shelves. Holds eight sealed L-16 batteries. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosure size: 36.5" wide x 16" deep x 55" tall/261 Lbs including pallet (tr	34.000 x 15.250 x 16.41 in	12 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	32 units Quantity
Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle	29.000 x 14.500 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com	MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two	34.000 x 15.250 x 10.82 in	24 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a	28.500 x 26.250 x 10.82 in	16 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated	28.500 x 26.250 x 10.82 in	16 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	100 units Quantity

Furnish New Battery CSB GPL Series GPL12800 M6

Glossary

Furnish_New_Battery_A123_NMC_Module_Series_78AH_22S3P_22cells_x_26AH_x_3cells_4_1_0_25

Furnish_New_Battery_A123_NMC_Module_Series_78AH_22S3P_22cells_x_26AH_x_3cells_4_2_0_25

Furnish_New_Battery_A123_NMC_Pouch_Cell_Series_NMC26AH_3_7_V_4_1_Tin_Plated_Tabs

Furnish New Battery CSB GPL Series GPL12800 M6

Glossary

Related Products

Furnish_New_Battery_A123_NMC_Module_Series_78AH_22S3P_22cells_x_26AH_x_3cells_4_1_0_25

Furnish_New_Battery_A123_NMC_Module_Series_78AH_22S3P_22cells_x_26AH_x_3cells_4_2_0_25

Furnish_New_Battery_A123_NMC_Pouch_Cell_Series_NMC26AH_3_7_V_4_1_Tin_Plated_Tabs
