Furnish New Battery CSB GPL Series GPL12800G M6

Name: Furnish_New_Battery_CSB_GPL_Series_GPL12800G_M6
Brand: Pb_VRLA_AGM_500.png
SKU: Furnish_New_Battery_CSB_GPL_Series_GPL12800G_M6
Price: 238.63 USD
Availability: InStock

Technology: Pb_VRLA_AGM_500.png
Furnish New Battery CSB GPL Series GPL12800G M6

$238.63

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery CSB GPL Series GPL12800G M6

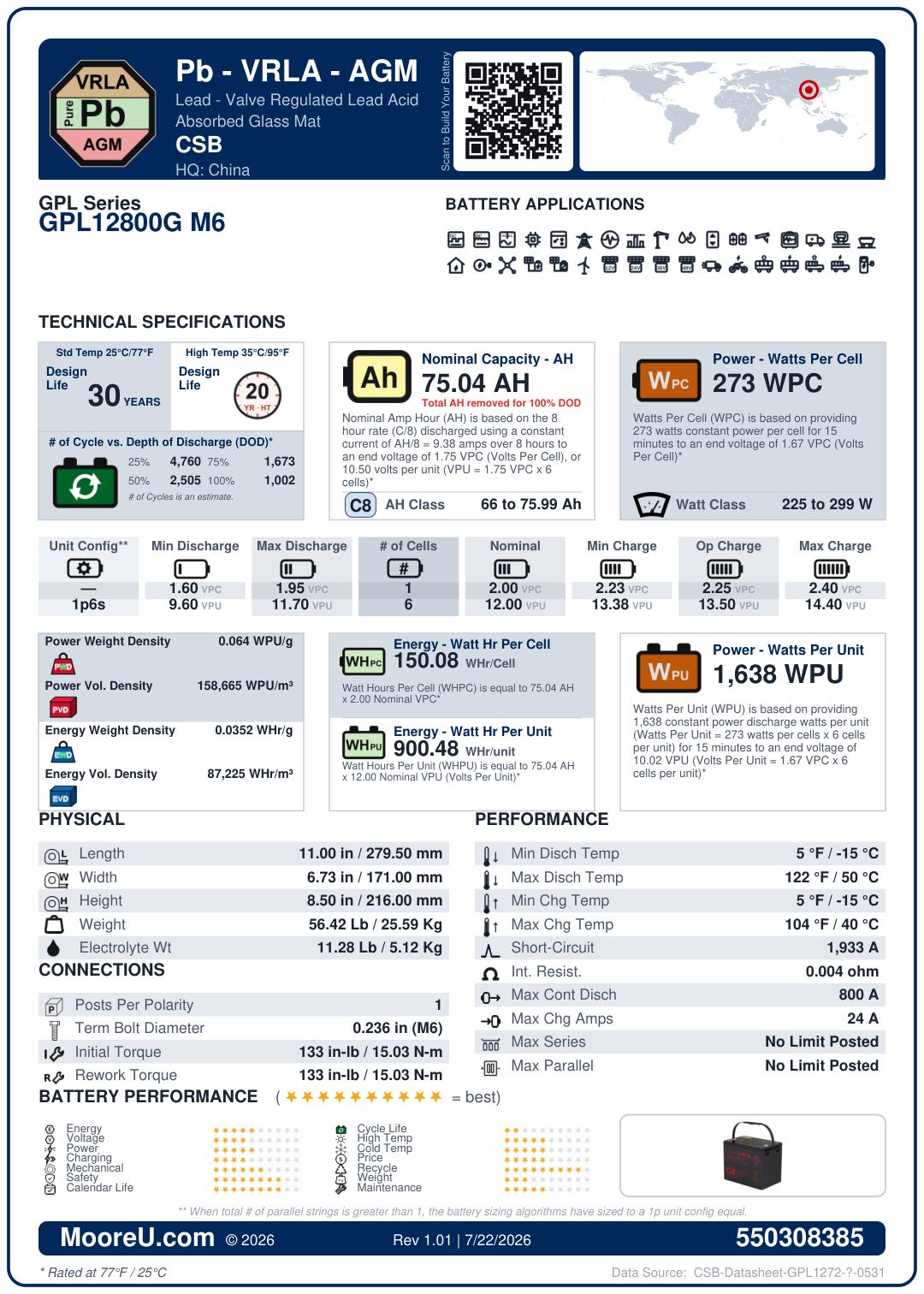

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	CSB GPL Series GPL12800G M6
Adjustment	1
AH Per String	75.04
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.85
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-15°C to 50°C
Charge Temp Range	-15°C to 40°C
ISC Amps	1933
Internal Resistance	0.004 Ohms
Dimensions (L x W x H)	11.003937 x 6.732283458 x 8.503936999 in
Weight	56.42 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	800 Amps
Max Charge Amps	24 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	273
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	11.284 lbs
