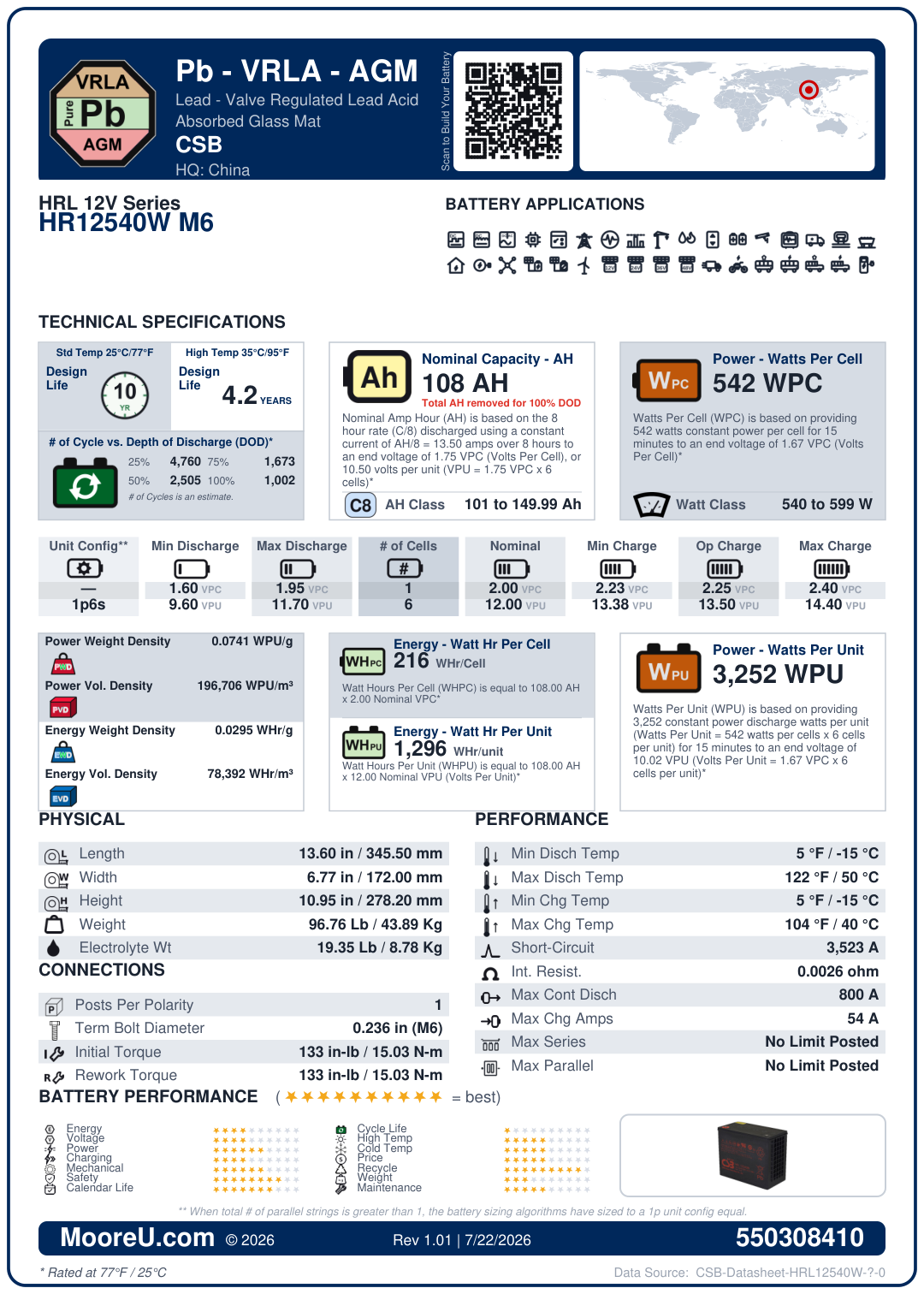

Furnish New Battery CSB HRL 12V Series HR12540W M6
Technology: Pb_VRLA_AGM_500.pngFurnish New Battery CSB HRL 12V Series HR12540W M6
$401.76
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery CSB HRL 12V Series HR12540W M6
| Battery Model | CSB HRL 12V Series HR12540W M6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 108 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.85 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | -15°C to 40°C |
| ISC Amps | 3523 |
| Internal Resistance | 0.0026 Ohms |
| Dimensions (L x W x H) | 13.60236219 x 6.771653536 x 10.95275589 in |
| Weight | 96.76 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 800 Amps |
| Max Charge Amps | 54 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 542 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 19.352 lbs |
