Furnish New Battery CSB MSV Series MSV 650 M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery CSB MSV Series MSV 650 M8
$394.82
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery CSB MSV Series MSV 650 M8

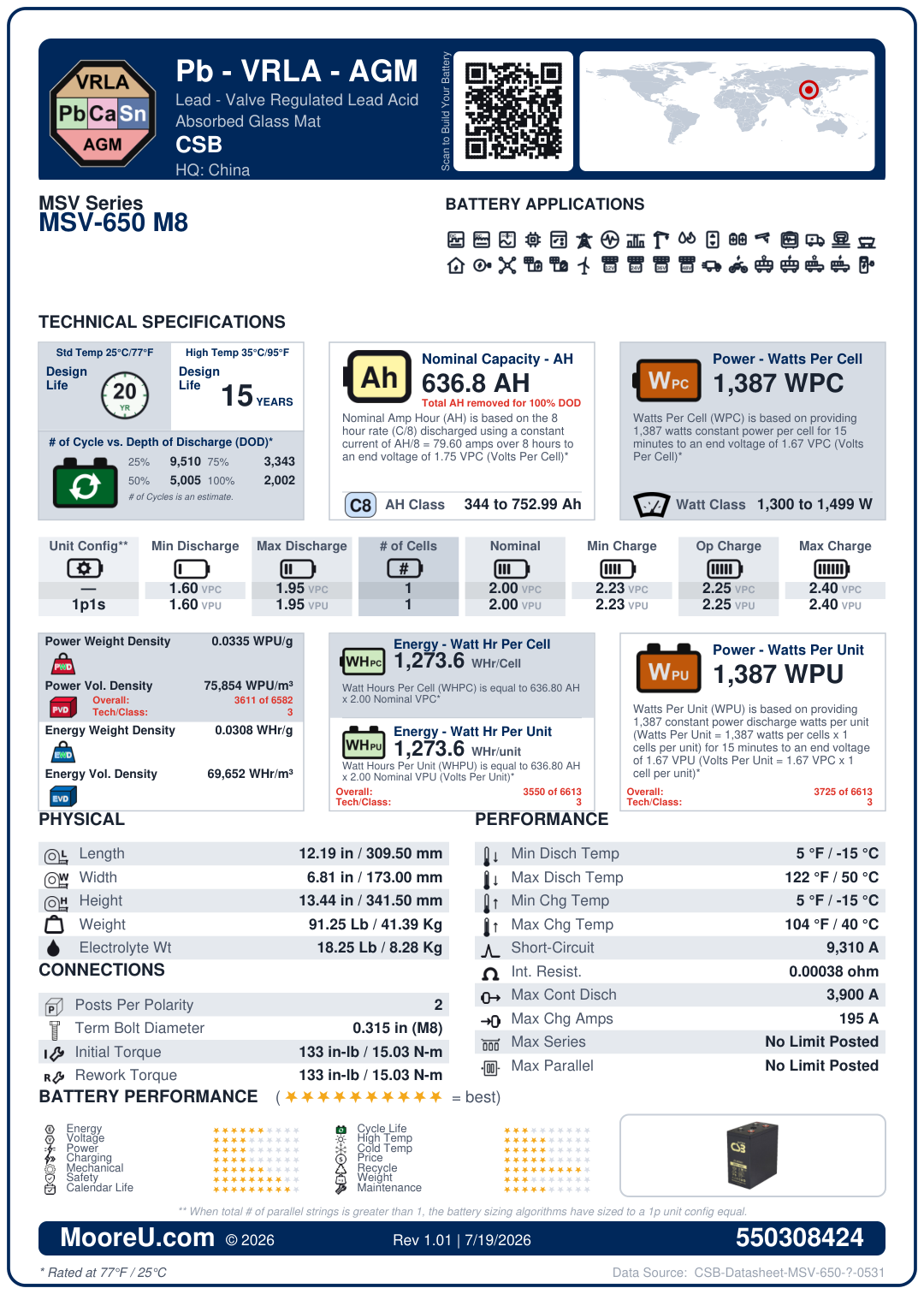

| Battery Model | CSB MSV Series MSV 650 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 636.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.35 (Min: 2.21, Max: 2.35) |
| Discharge VPC | Min: 1.6, Max: 1.83 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -15°C to 50°C |
| Charge Temp Range | -15°C to 40°C |
| ISC Amps | 9310 |
| Internal Resistance | 0.00038 Ohms |
| Dimensions (L x W x H) | 12.18503936 x 6.811023615 x 13.44488188 in |
| Weight | 91.25 lbs |
| Number of Posts | 2 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 3900 Amps |
| Max Charge Amps | 195 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 1387 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 18.25 lbs |
