Furnish New Battery Ritar DG Series DG12 100S V24B HB L4

Name: Furnish_New_Battery_Ritar_DG_Series_DG12_100S_V24B_HB_L4
Brand: Pb_Ca_VRLA_GEL.png
SKU: Furnish_New_Battery_Ritar_DG_Series_DG12_100S_V24B_HB_L4
Price: 269.02 USD
Availability: InStock

Technology: Pb_Ca_VRLA_GEL.png
Furnish New Battery Ritar DG Series DG12 100S V24B HB L4

$269.02

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar DG Series DG12 100S V24B HB L4

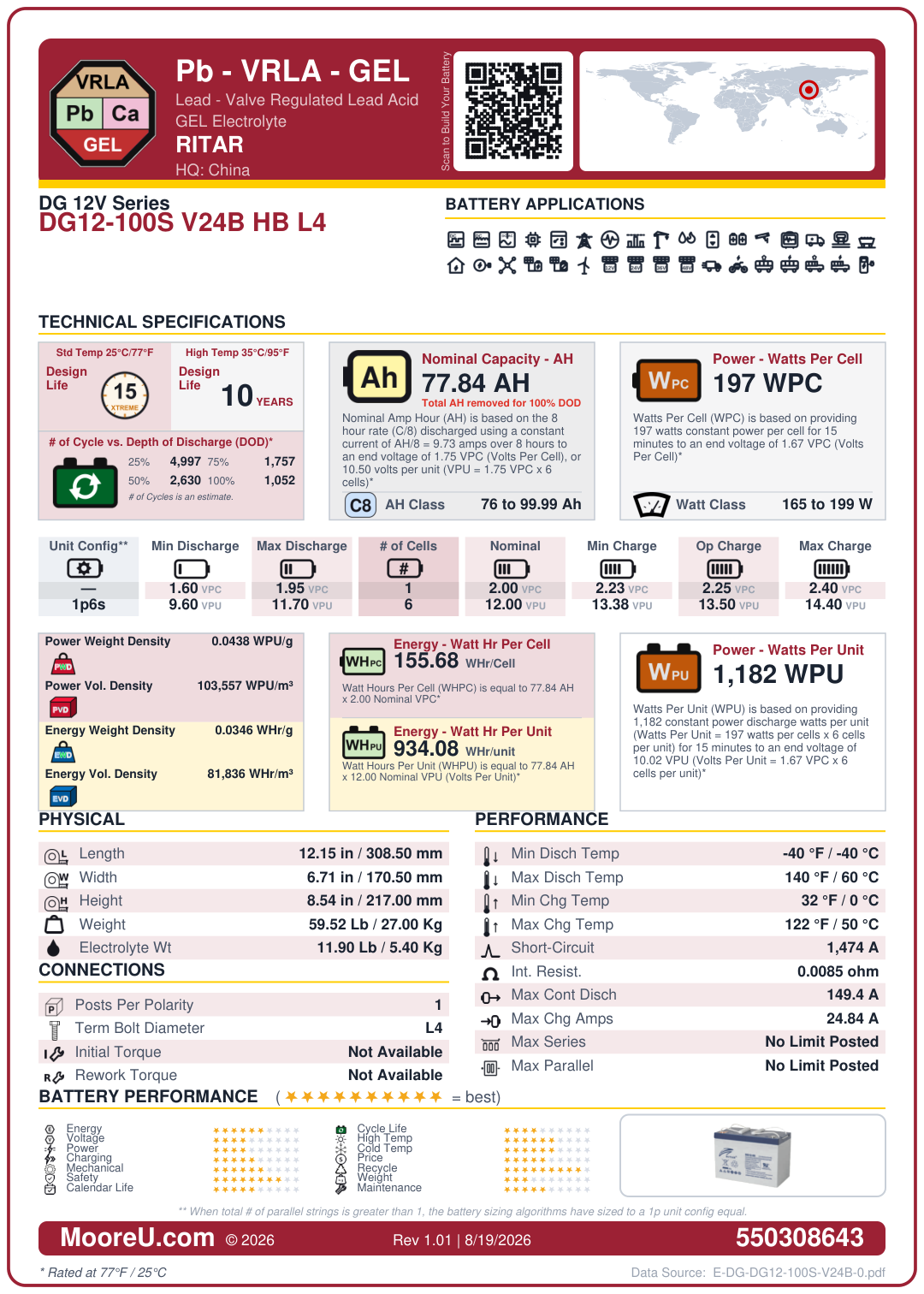

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar DG Series DG12 100S V24B HB L4
Adjustment	1
AH Per String	77.84
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.25, Max: 2.47)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	1474
Internal Resistance	0.0085 Ohms
Dimensions (L x W x H)	12.14567585 x 6.71260205 x 8.5433117 in
Weight	59.52474 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (L4 mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	HB
Terminal	L4
FOB	T
Max Continuous Discharge	149.4 Amps
Max Charge Amps	24.84255318 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	197
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	11.904948 lbs
