Furnish New Battery Ritar EV Series EV12 90S V22A HB F11 M6

Name: Furnish_New_Battery_Ritar_EV_Series_EV12_90S_V22A_HB_F11_M6
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_EV_Series_EV12_90S_V22A_HB_F11_M6
Price: 182.84 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar EV Series EV12 90S V22A HB F11 M6

$182.84

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar EV Series EV12 90S V22A HB F11 M6

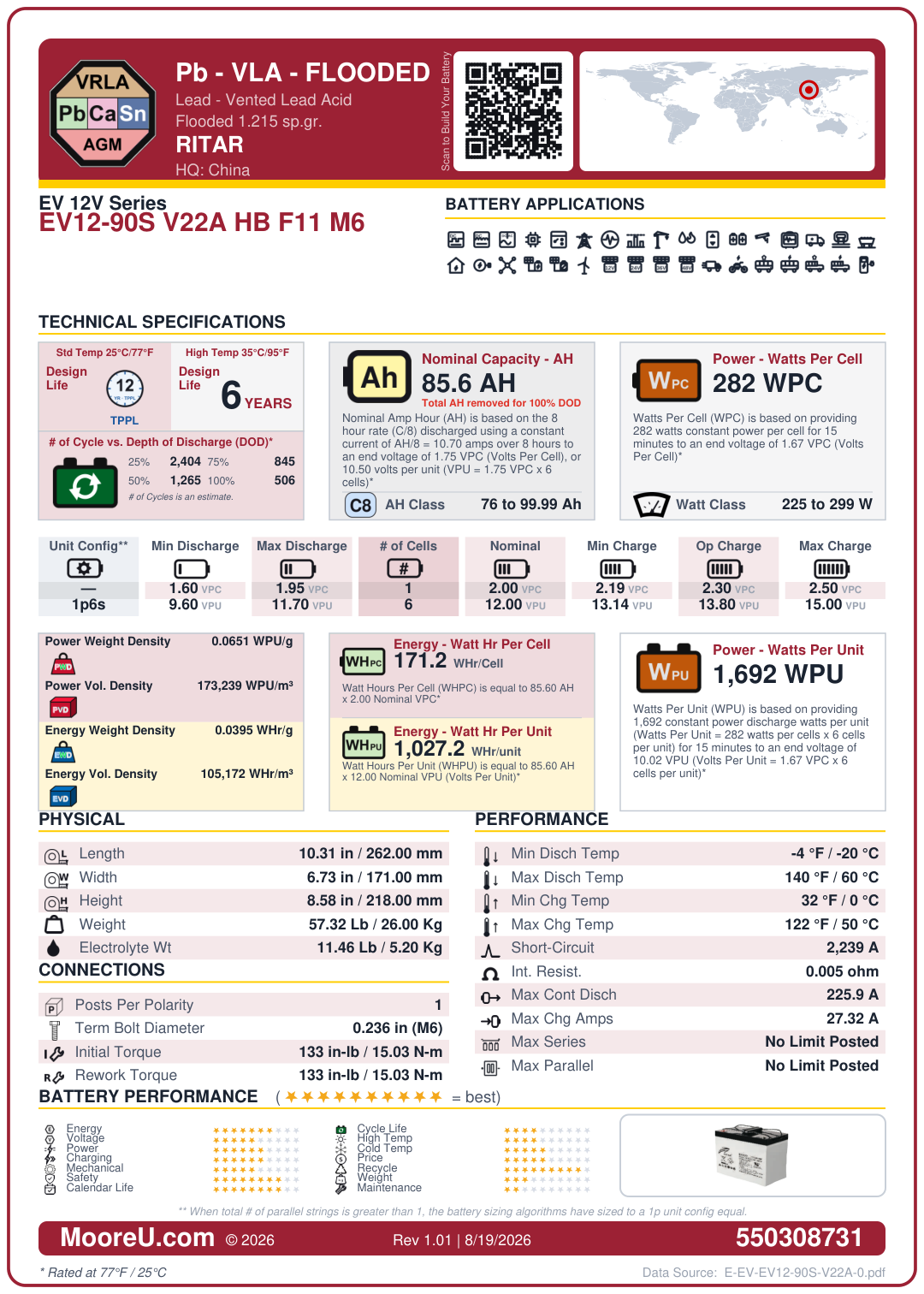

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar EV Series EV12 90S V22A HB F11 M6
Adjustment	1
AH Per String	85.6
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.25, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	2239
Internal Resistance	0.005 Ohms
Dimensions (L x W x H)	10.3149662 x 6.7322871 x 8.5826818 in
Weight	57.32012 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	HB
Terminal	M6
FOB	T
Max Continuous Discharge	225.9 Amps
Max Charge Amps	27.31914892 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	282
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	11.464024 lbs
