Furnish New Battery Ritar EV Marine Series M27 EV12 100SH V25A HB F22 M8

Name: Furnish_New_Battery_Ritar_EV_Marine_Series_M27_EV12_100SH_V25A_HB_F22_M8
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_EV_Marine_Series_M27_EV12_100SH_V25A_HB_F22_M8
Price: 203.35 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar EV Marine Series M27 EV12 100SH V25A HB F22 M8

$203.35

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar EV Marine Series M27 EV12 100SH V25A HB F22 M8

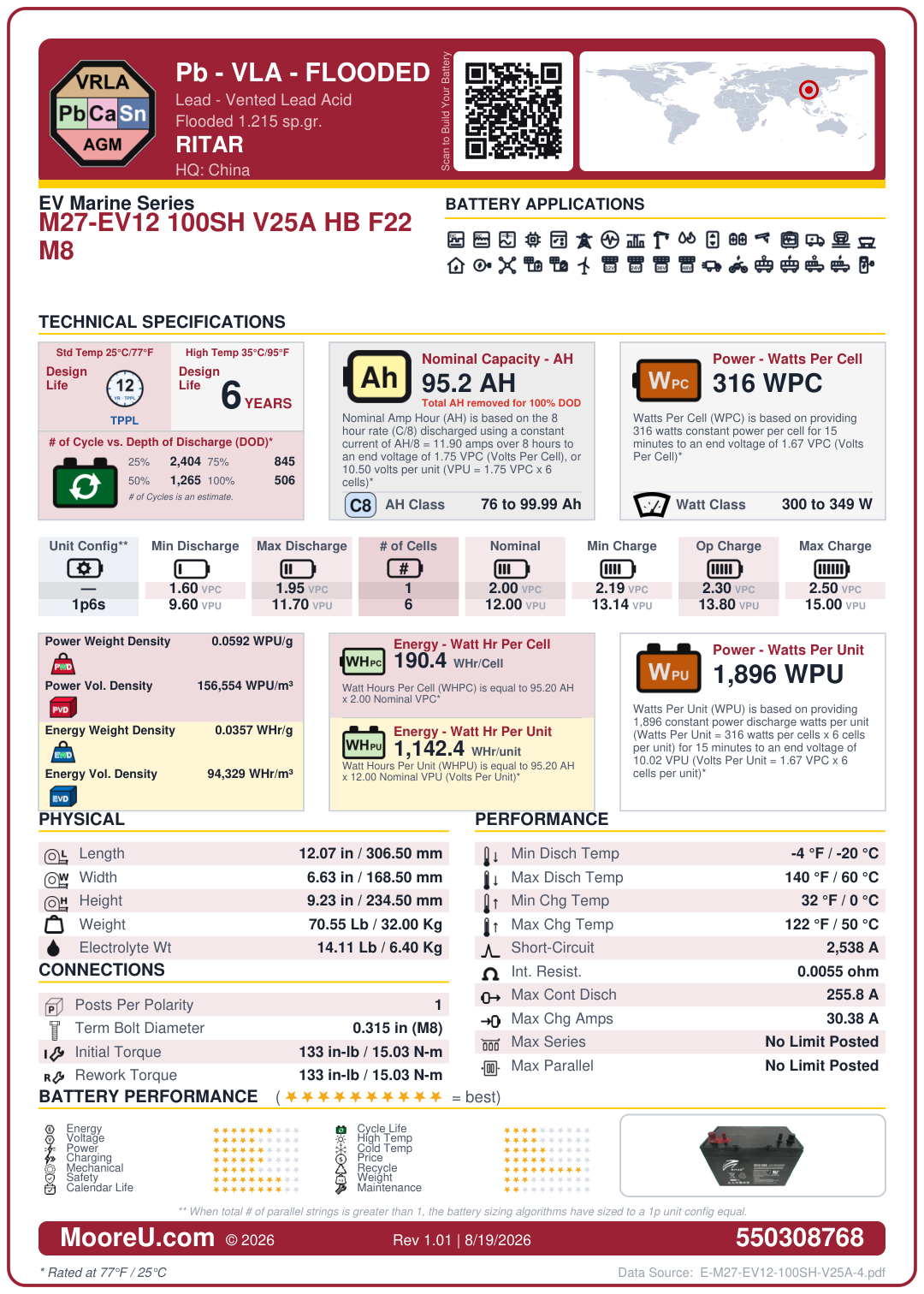

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar EV Marine Series M27 EV12 100SH V25A HB F22 M8
Adjustment	1
AH Per String	95.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.25, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	2538
Internal Resistance	0.0055 Ohms
Dimensions (L x W x H)	12.06693565 x 6.63386185 x 9.23228845 in
Weight	70.54784 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	HB
Terminal	M8
FOB	T
Max Continuous Discharge	255.8 Amps
Max Charge Amps	30.38297871 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	316
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	14.109568 lbs
