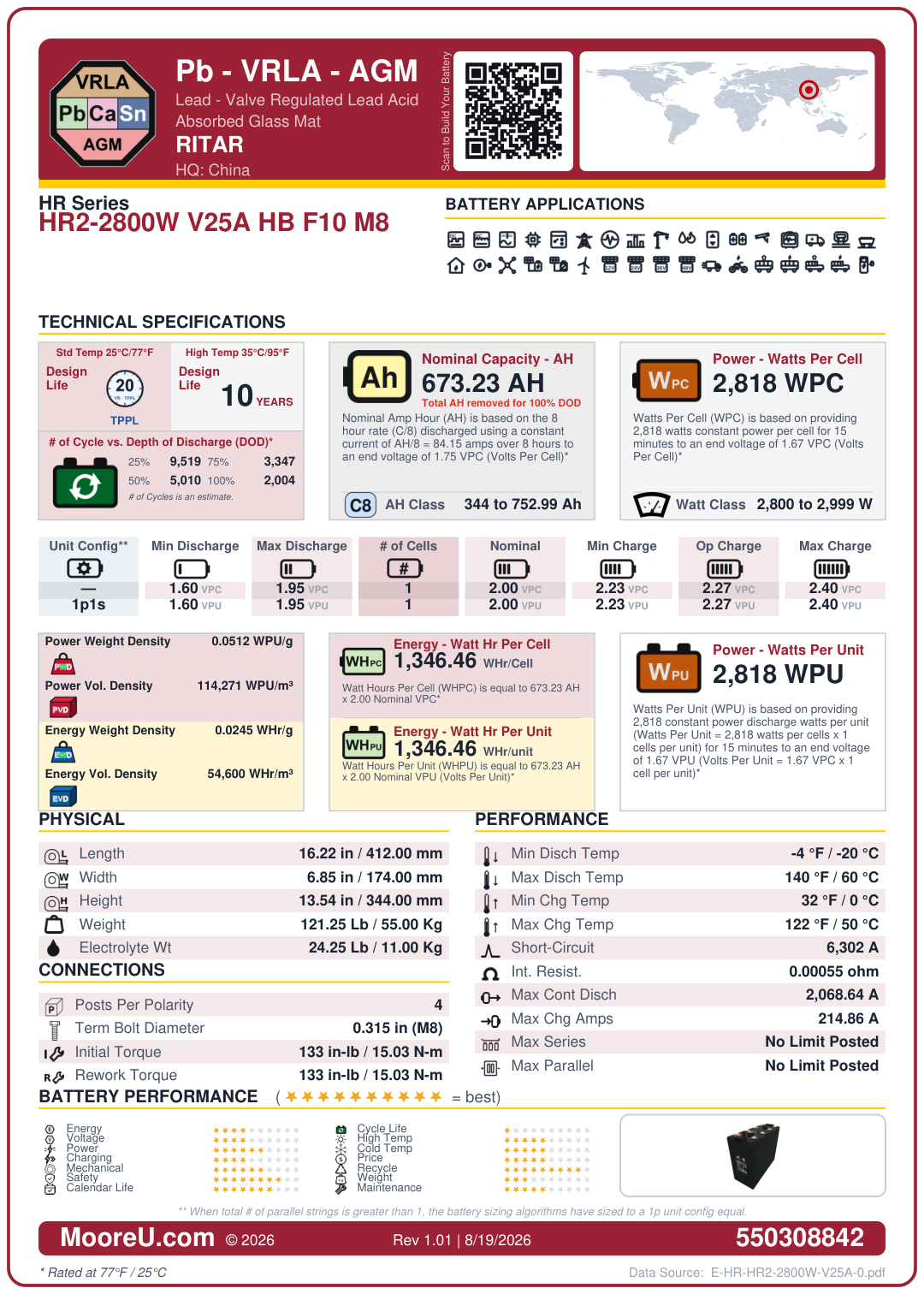

Furnish New Battery Ritar HR Series HR2 2800W V25A HB F10 M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Ritar HR Series HR2 2800W V25A HB F10 M8
$350.08
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery Ritar HR Series HR2 2800W V25A HB F10 M8
| Battery Model | Ritar HR Series HR2 2800W V25A HB F10 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 673.232 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.3, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 6302 |
| Internal Resistance | 0.00055 Ohms |
| Dimensions (L x W x H) | 16.2204812 x 6.8503974 x 13.5433144 in |
| Weight | 121.2541 lbs |
| Number of Posts | 4 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | HB |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 2068.64 Amps |
| Max Charge Amps | 214.8612765 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 2818 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 24.25082 lbs |
