Furnish New Battery Ritar RA Series RA12 100S V24A HB L4

Name: Furnish_New_Battery_Ritar_RA_Series_RA12_100S_V24A_HB_L4
Brand: Pb_Ca_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_RA_Series_RA12_100S_V24A_HB_L4
Price: 304.51 USD
Availability: InStock

Technology: Pb_Ca_VRLA_AGM.png
Furnish New Battery Ritar RA Series RA12 100S V24A HB L4

$304.51

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar RA Series RA12 100S V24A HB L4

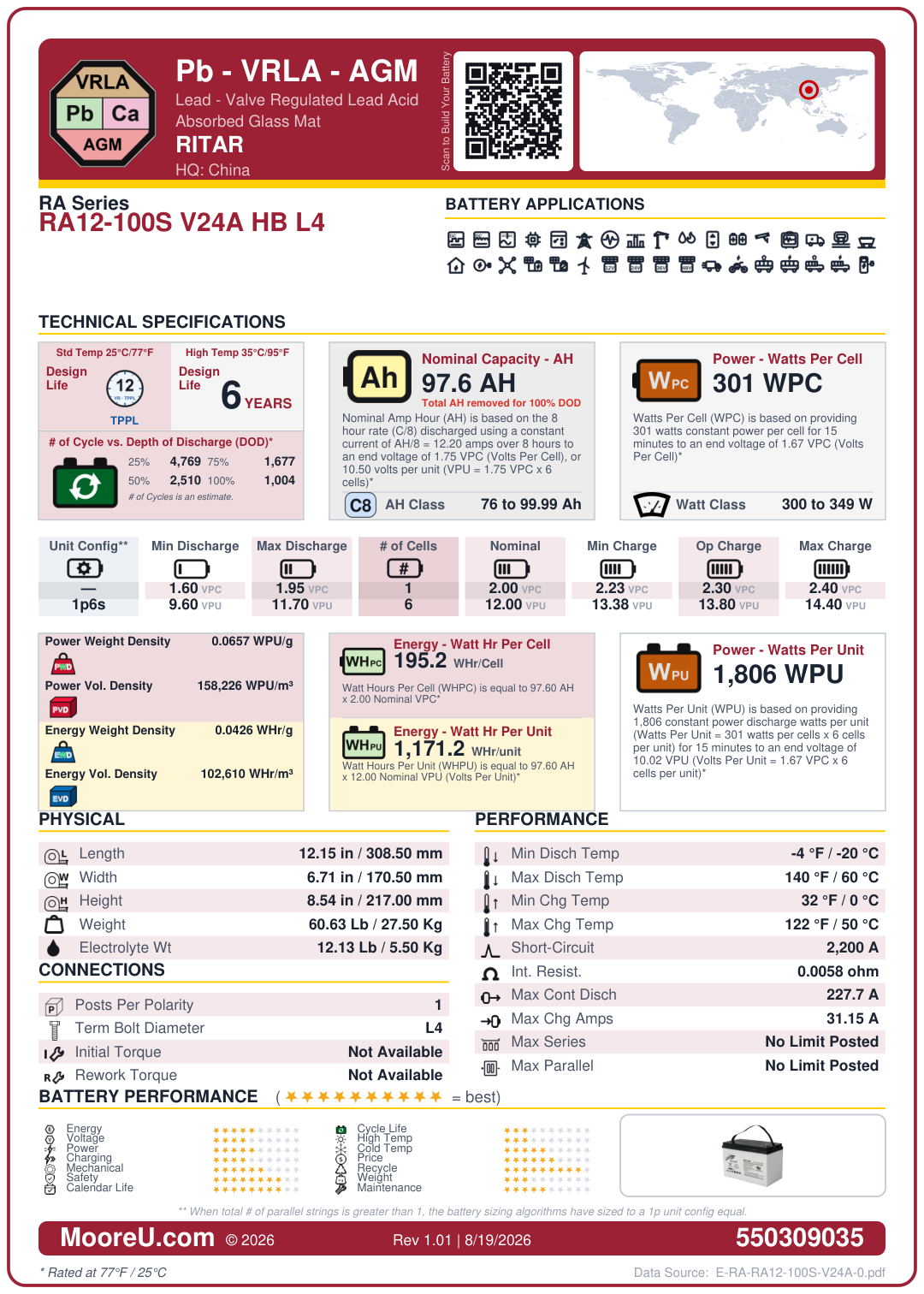

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar RA Series RA12 100S V24A HB L4
Adjustment	1
AH Per String	97.6
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	2200
Internal Resistance	0.0058 Ohms
Dimensions (L x W x H)	12.14567585 x 6.71260205 x 8.5433117 in
Weight	60.62705 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (L4 mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	HB
Terminal	L4
FOB	T
Max Continuous Discharge	227.7 Amps
Max Charge Amps	31.14893615 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	301
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.12541 lbs
