Furnish New Battery Ritar DC Series DC12 100S V22A V0 L4

Name: Furnish_New_Battery_Ritar_DC_Series_DC12_100S_V22A_V0_L4
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_DC_Series_DC12_100S_V22A_V0_L4
Price: 302.38 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar DC Series DC12 100S V22A V0 L4

$302.38

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar DC Series DC12 100S V22A V0 L4

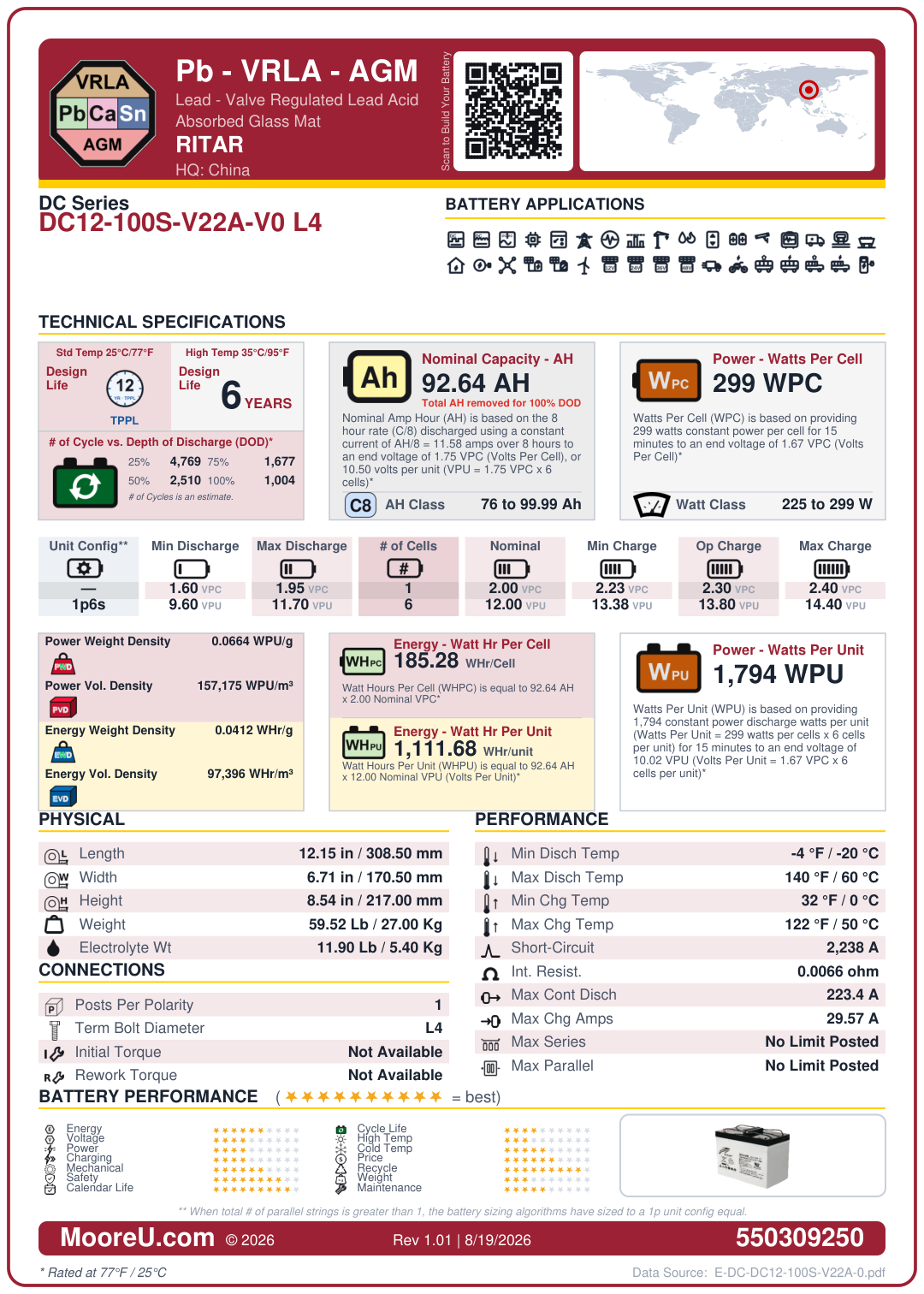

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar DC Series DC12 100S V22A V0 L4
Adjustment	1
AH Per String	92.64
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	2238
Internal Resistance	0.0066 Ohms
Dimensions (L x W x H)	12.14567585 x 6.71260205 x 8.5433117 in
Weight	59.52474 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (L4 mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	L4
FOB	T
Max Continuous Discharge	223.4 Amps
Max Charge Amps	29.56595743 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	299
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	11.904948 lbs
