Furnish New Battery Ritar DG Series DG12 60 V24A V0 F11 M6

Name: Furnish_New_Battery_Ritar_DG_Series_DG12_60_V24A_V0_F11_M6
Brand: Pb_Ca_VRLA_GEL.png
SKU: Furnish_New_Battery_Ritar_DG_Series_DG12_60_V24A_V0_F11_M6
Price: 179.16 USD
Availability: InStock

Technology: Pb_Ca_VRLA_GEL.png
Furnish New Battery Ritar DG Series DG12 60 V24A V0 F11 M6

$179.16

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar DG Series DG12 60 V24A V0 F11 M6

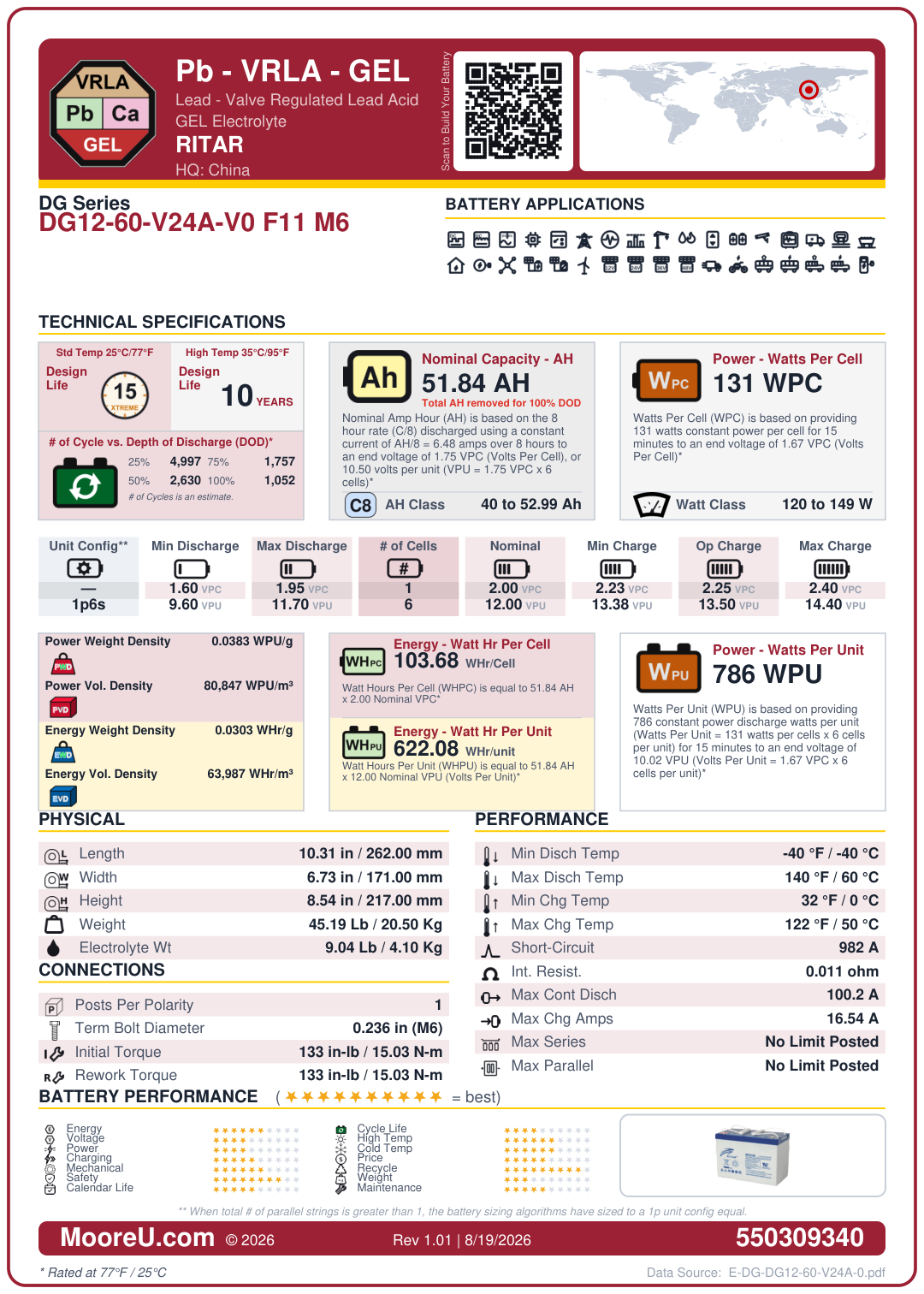

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar DG Series DG12 60 V24A V0 F11 M6
Adjustment	1
AH Per String	51.84
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	982
Internal Resistance	0.011 Ohms
Dimensions (L x W x H)	10.3149662 x 6.7322871 x 8.5433117 in
Weight	45.19471 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	100.2 Amps
Max Charge Amps	16.54468084 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	131
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	9.038942 lbs
