Furnish New Battery Ritar EV Series EV6 260 V24A V0 F22 M8
Technology: Pb_Ca_Sn_VRLA_AGM.pngFurnish New Battery Ritar EV Series EV6 260 V24A V0 F22 M8
$243.60
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery

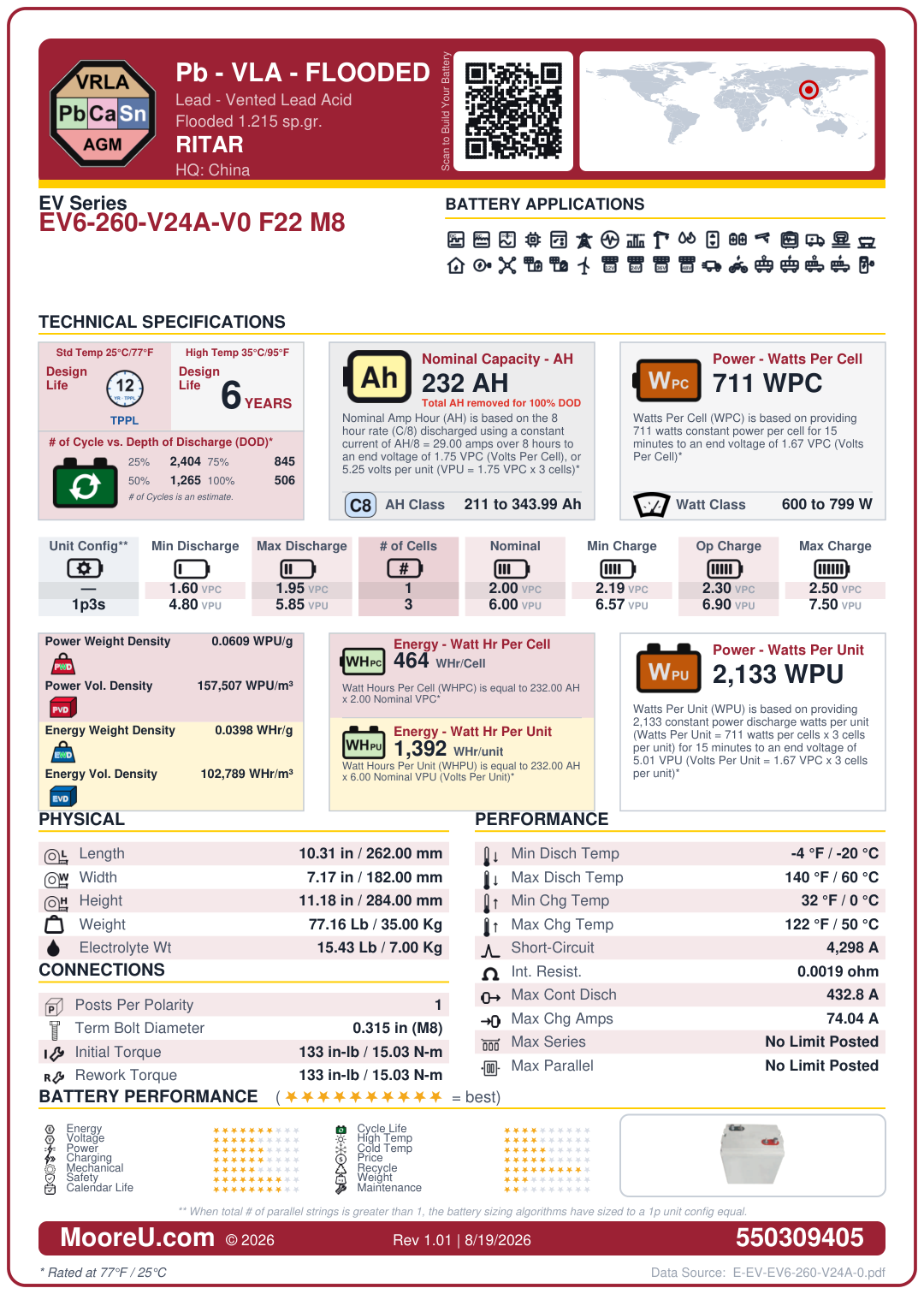

Furnish New Battery Ritar EV Series EV6 260 V24A V0 F22 M8
| Battery Model | Ritar EV Series EV6 260 V24A V0 F22 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 232 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 4298 |
| Internal Resistance | 0.0019 Ohms |
| Dimensions (L x W x H) | 10.3149662 x 7.1653582 x 11.1811084 in |
| Weight | 77.1617 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 432.8 Amps |
| Max Charge Amps | 74.04255315 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 711 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 15.43234 lbs |
