Furnish New Battery Ritar EV Series EV12 90S V22A V0 L4

Name: Furnish_New_Battery_Ritar_EV_Series_EV12_90S_V22A_V0_L4
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_EV_Series_EV12_90S_V22A_V0_L4
Price: 179.76 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar EV Series EV12 90S V22A V0 L4

$179.76

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar EV Series EV12 90S V22A V0 L4

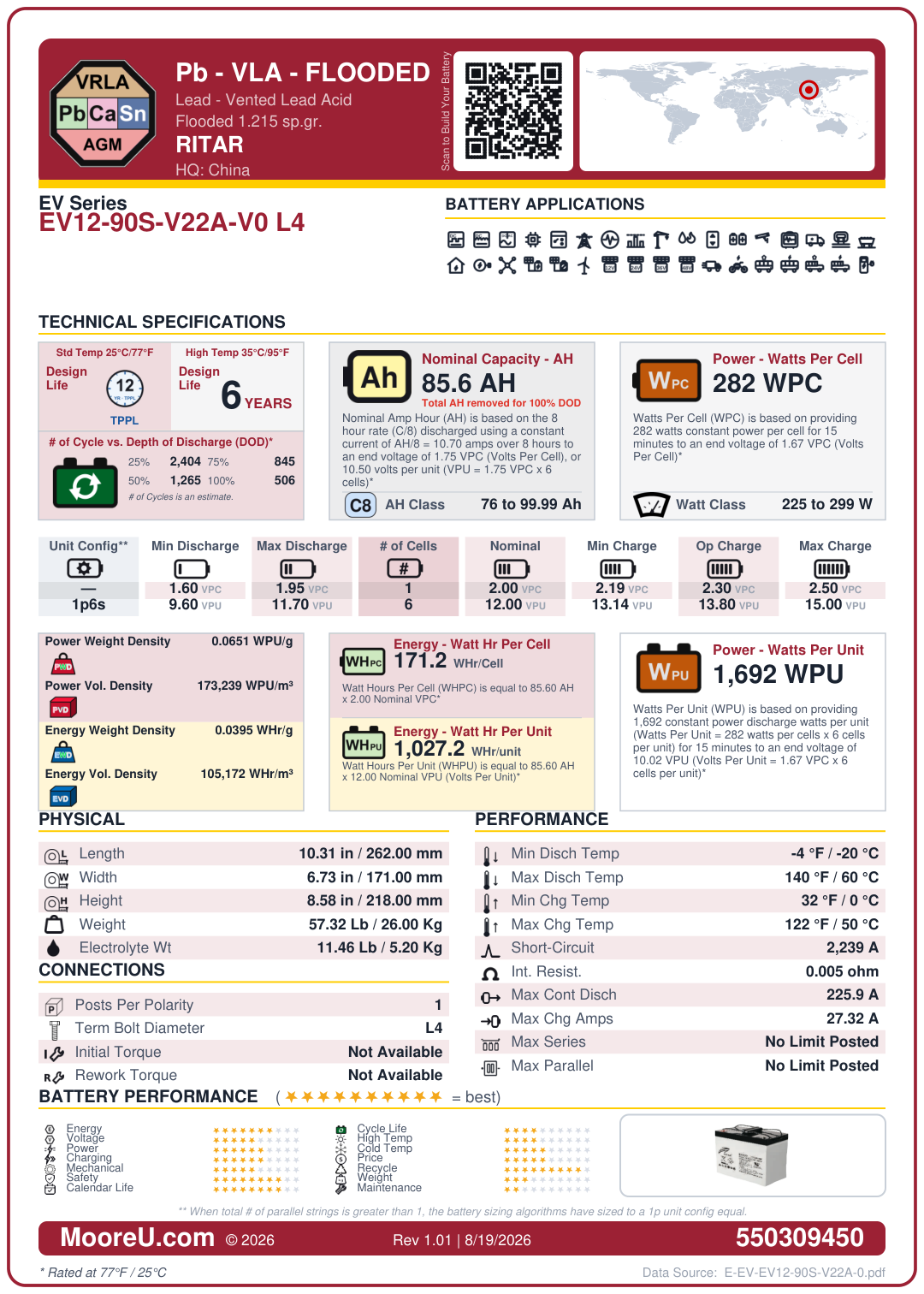

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar EV Series EV12 90S V22A V0 L4
Adjustment	1
AH Per String	85.6
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	2239
Internal Resistance	0.005 Ohms
Dimensions (L x W x H)	10.3149662 x 6.7322871 x 8.5826818 in
Weight	57.32012 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (L4 mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	L4
FOB	T
Max Continuous Discharge	225.9 Amps
Max Charge Amps	27.31914892 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	282
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	11.464024 lbs
