Furnish New Battery Ritar EV Series EV12 100S V22A V0 F15 M6

Name: Furnish_New_Battery_Ritar_EV_Series_EV12_100S_V22A_V0_F15_M6
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_EV_Series_EV12_100S_V22A_V0_F15_M6
Price: 199.92 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar EV Series EV12 100S V22A V0 F15 M6

$199.92

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar EV Series EV12 100S V22A V0 F15 M6

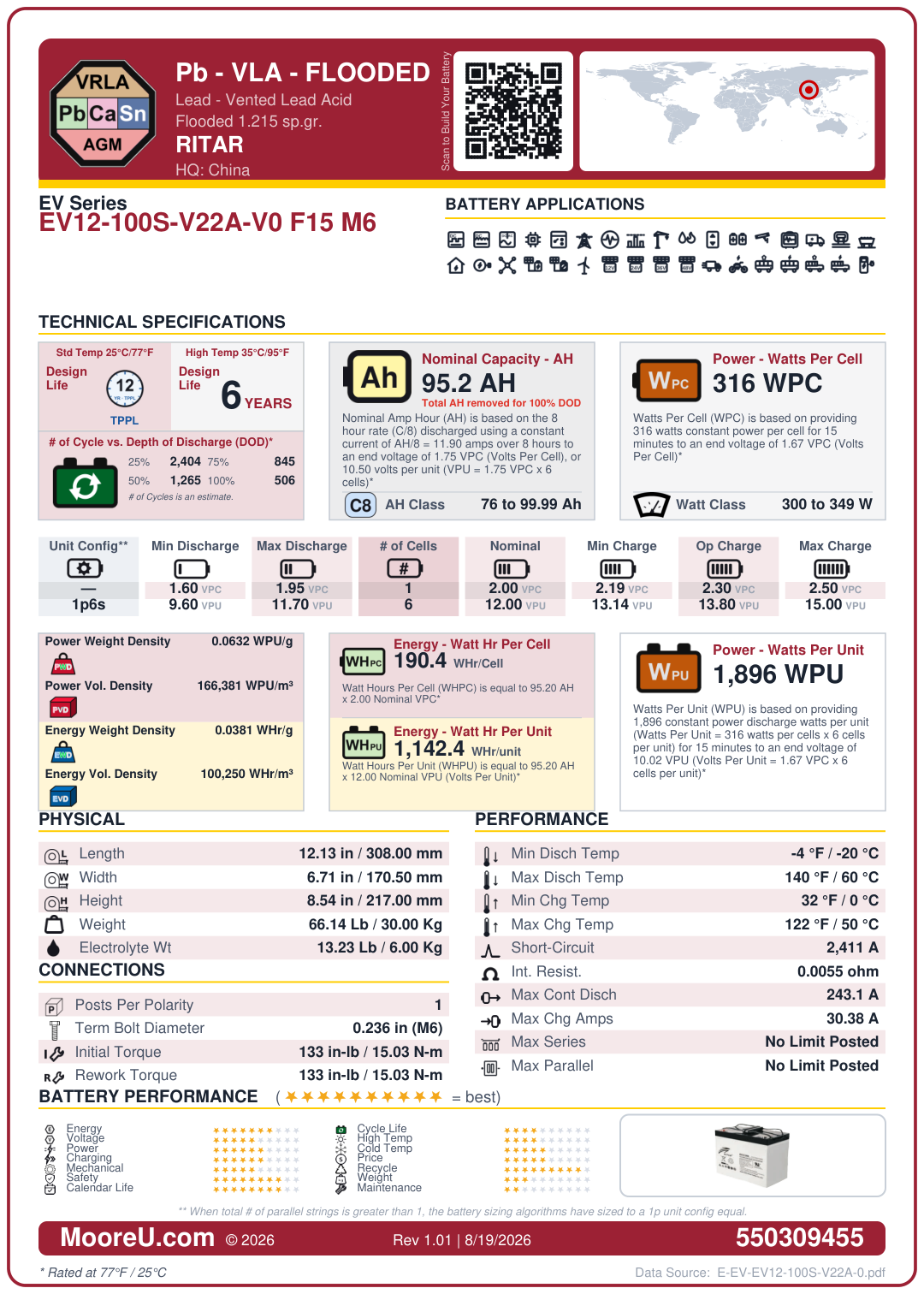

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar EV Series EV12 100S V22A V0 F15 M6
Adjustment	1
AH Per String	95.2
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	2411
Internal Resistance	0.0055 Ohms
Dimensions (L x W x H)	12.1259908 x 6.71260205 x 8.5433117 in
Weight	66.1386 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	243.1 Amps
Max Charge Amps	30.38297871 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	316
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	13.22772 lbs
