Furnish New Battery Ritar EV Marine Series M24 EV12 90S V25A V0 F22 M8

Name: Furnish_New_Battery_Ritar_EV_Marine_Series_M24_EV12_90S_V25A_V0_F22_M8
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_EV_Marine_Series_M24_EV12_90S_V25A_V0_F22_M8
Price: 179.76 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar EV Marine Series M24 EV12 90S V25A V0 F22 M8

$179.76

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar EV Marine Series M24 EV12 90S V25A V0 F22 M8

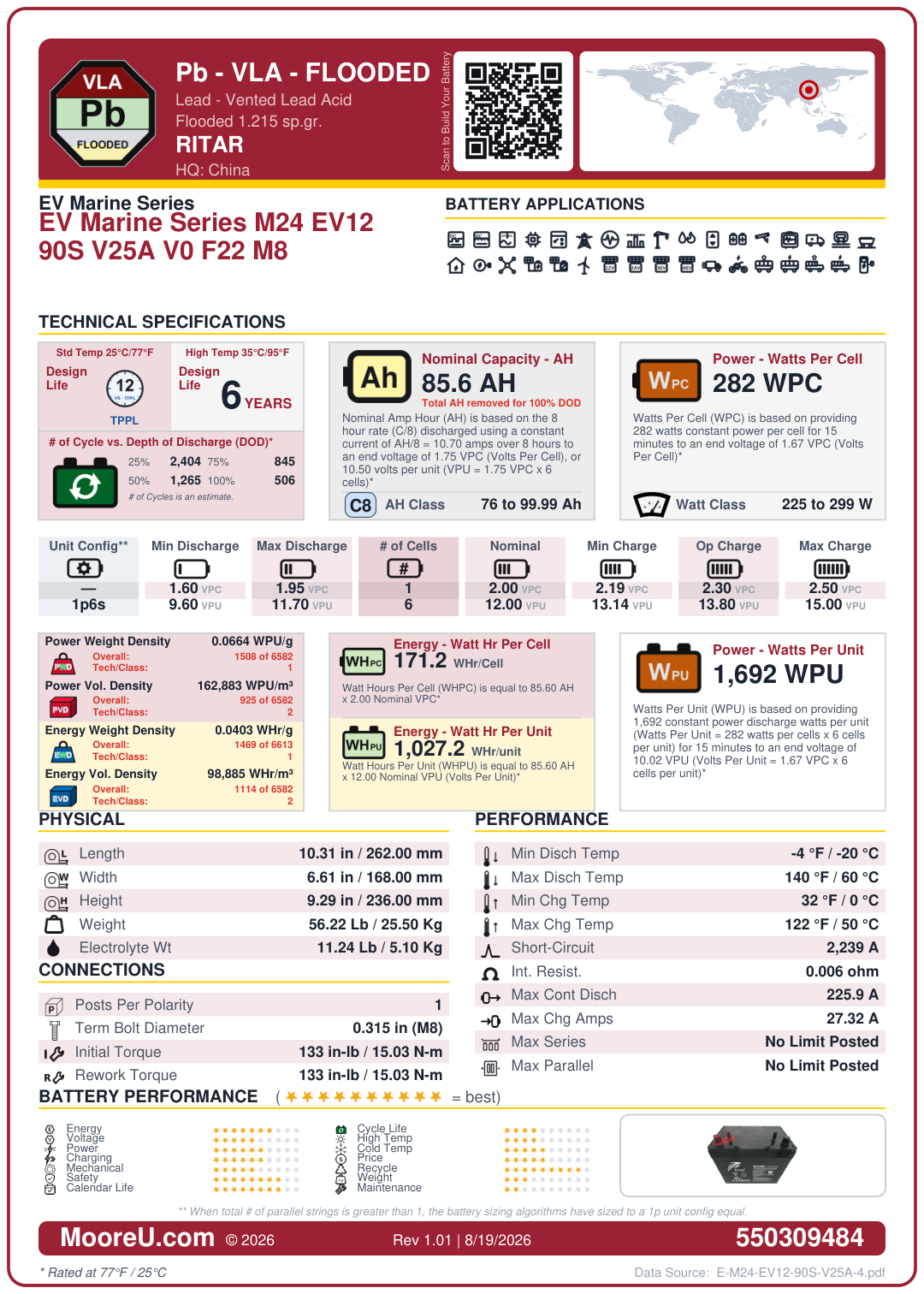

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar EV Marine Series M24 EV12 90S V25A V0 F22 M8
Adjustment	1
AH Per String	85.6
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	2239
Internal Resistance	0.006 Ohms
Dimensions (L x W x H)	10.3149662 x 6.6141768 x 9.2913436 in
Weight	56.21781 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	225.9 Amps
Max Charge Amps	27.31914892 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	282
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	11.243562 lbs
