Furnish New Battery Ritar FT Series FT12 55A V24A V0 F11 M6

Name: Furnish_New_Battery_Ritar_FT_Series_FT12_55A_V24A_V0_F11_M6
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_FT_Series_FT12_55A_V24A_V0_F11_M6
Price: 170.19 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar FT Series FT12 55A V24A V0 F11 M6

$170.19

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar FT Series FT12 55A V24A V0 F11 M6

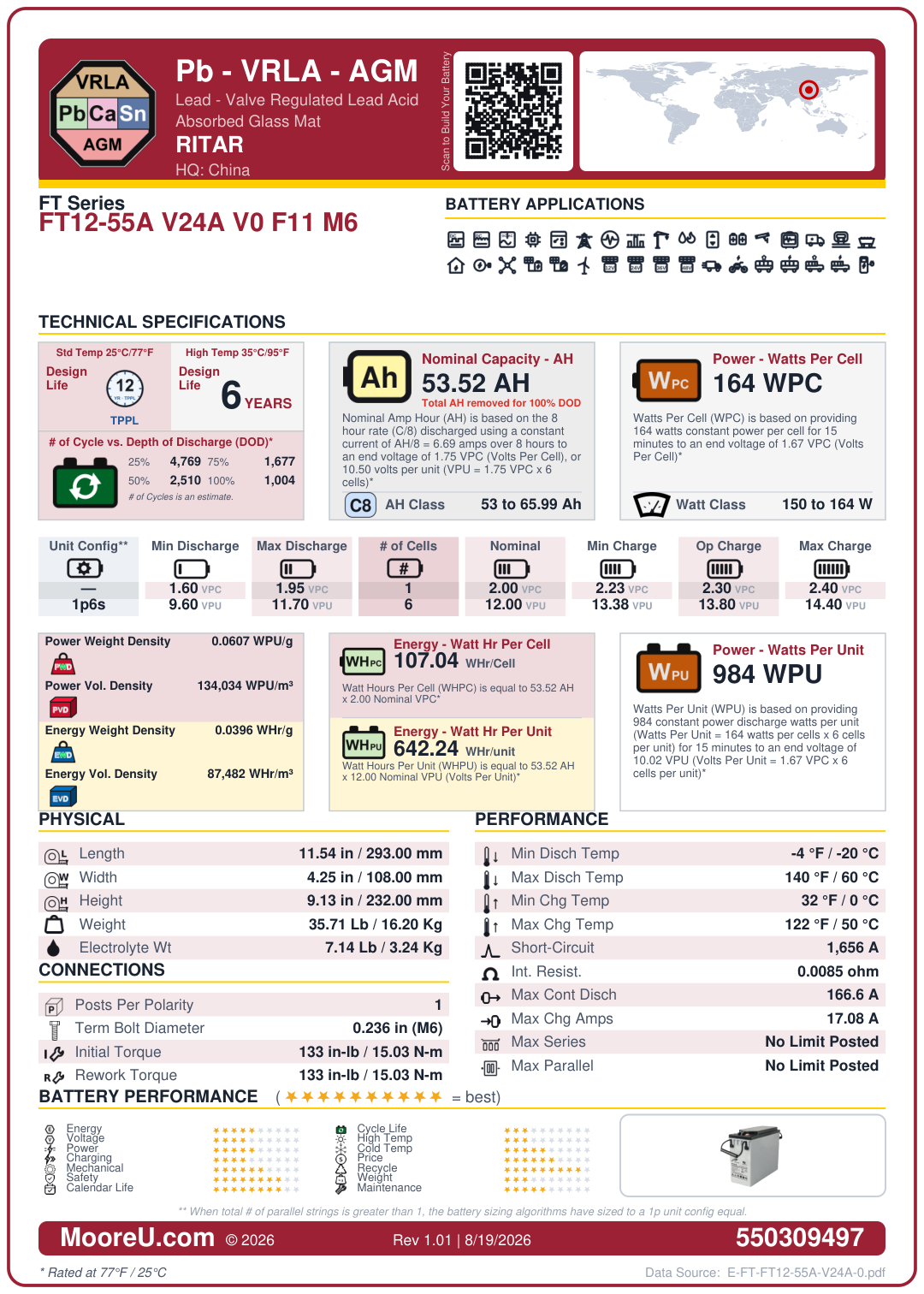

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar FT Series FT12 55A V24A V0 F11 M6
Adjustment	1
AH Per String	53.52
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	1656
Internal Resistance	0.0085 Ohms
Dimensions (L x W x H)	11.5354393 x 4.2519708 x 9.1338632 in
Weight	35.714844 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	166.6 Amps
Max Charge Amps	17.08085105 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	164
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	7.1429688 lbs
