Furnish New Battery Ritar FT D Series FT12 105D V24A V0 F14 M8

Name: Furnish_New_Battery_Ritar_FT_D_Series_FT12_105D_V24A_V0_F14_M8
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Ritar_FT_D_Series_FT12_105D_V24A_V0_F14_M8
Price: 310.37 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Ritar FT D Series FT12 105D V24A V0 F14 M8

$310.37

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar FT D Series FT12 105D V24A V0 F14 M8

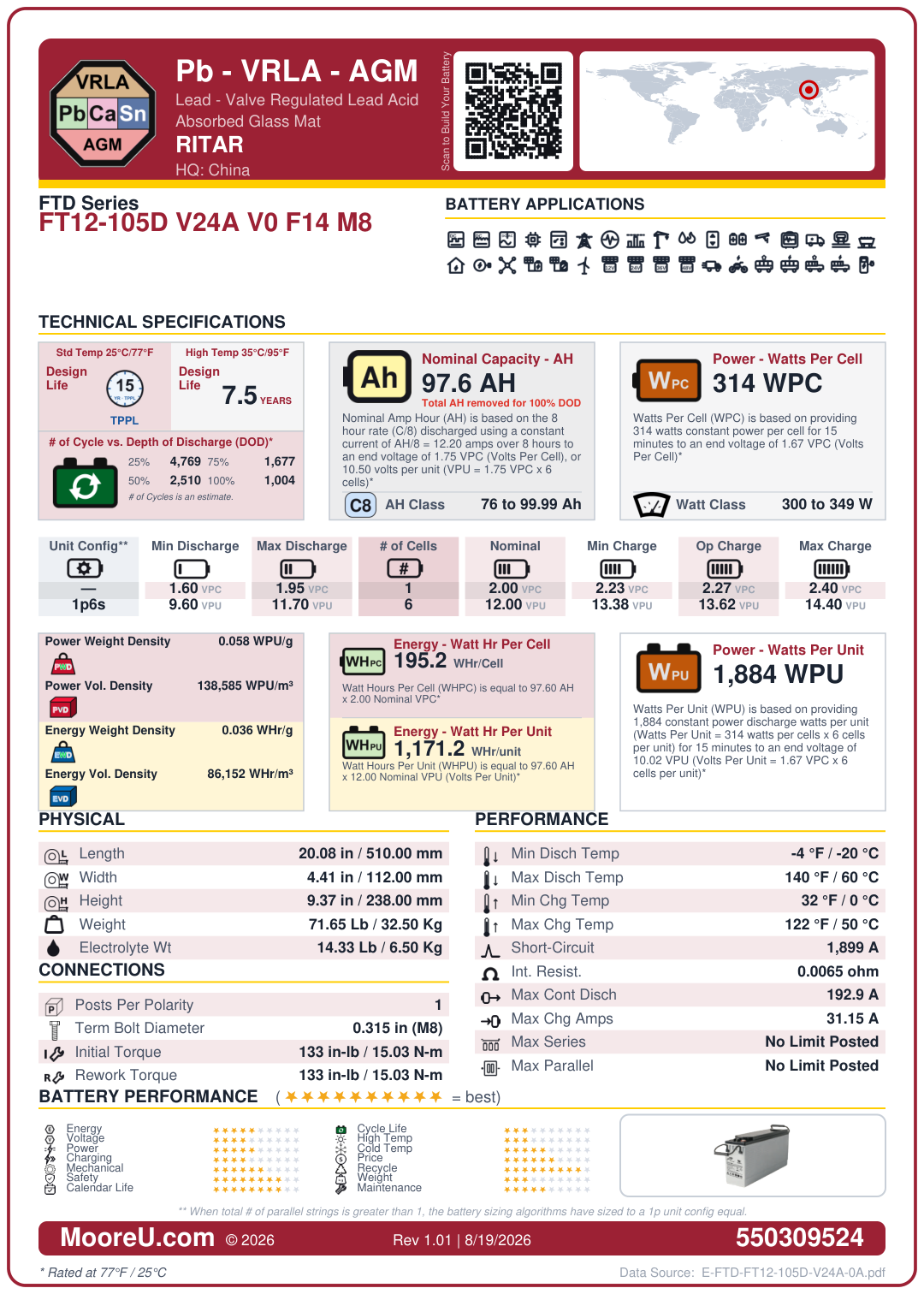

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar FT D Series FT12 105D V24A V0 F14 M8
Adjustment	1
AH Per String	97.6
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	1899
Internal Resistance	0.0065 Ohms
Dimensions (L x W x H)	20.078751 x 4.4094512 x 9.3700838 in
Weight	71.65015 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	192.9 Amps
Max Charge Amps	31.14893615 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	314
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	14.33003 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBC75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 33.600 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure UBR75 170AH 170AH FT TEL12 170FG ccpower.com	na	48.500 x 32.440 x 11.2 in	70 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure BC25 Spares 170AH 170AH FT TEL12 170FG ccpower.com	na	29.000 x 31.500 x 11.2 in	14 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	28 units Quantity
Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle	29.000 x 14.500 x 10.82 in	6 units Quantity
Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com	MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two	34.000 x 15.250 x 10.82 in	12 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a	28.500 x 26.250 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated	28.500 x 26.250 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	10 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 550WPC 550W 16V 16HX550F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	80 units Quantity
