Furnish New Battery Ritar FT G Series FT12 55G V24A V0 F11 M6

Name: Furnish_New_Battery_Ritar_FT_G_Series_FT12_55G_V24A_V0_F11_M6
Brand: Pb_Ca_VRLA_GEL.png
SKU: Furnish_New_Battery_Ritar_FT_G_Series_FT12_55G_V24A_V0_F11_M6
Price: 162.52 USD
Availability: InStock

Technology: Pb_Ca_VRLA_GEL.png
Furnish New Battery Ritar FT G Series FT12 55G V24A V0 F11 M6

$162.52

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar FT G Series FT12 55G V24A V0 F11 M6

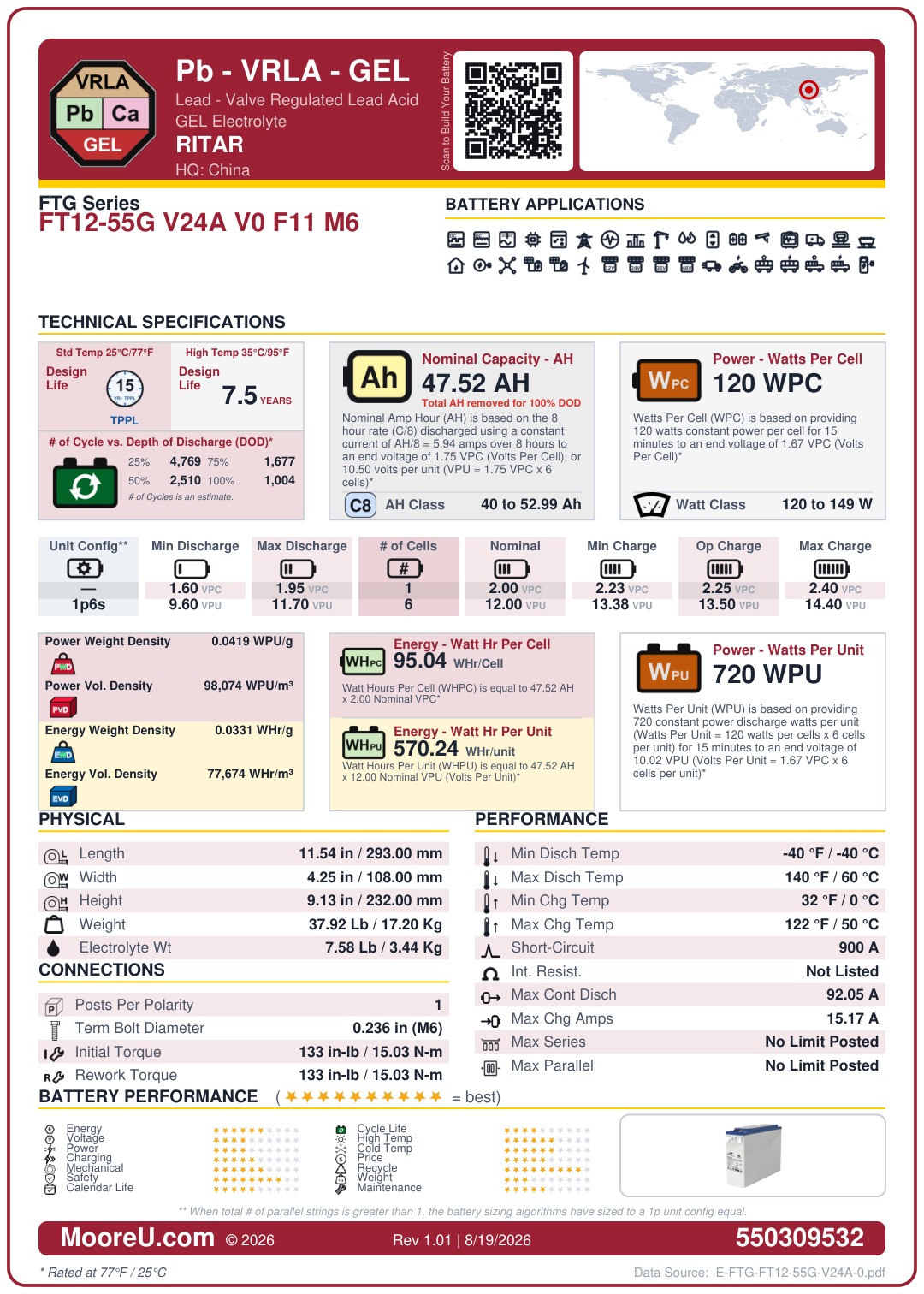

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar FT G Series FT12 55G V24A V0 F11 M6
Adjustment	1
AH Per String	47.52
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	900
Internal Resistance	0.0011 Ohms
Dimensions (L x W x H)	11.5354393 x 4.2519708 x 9.1338632 in
Weight	37.919464 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (M6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M6
FOB	T
Max Continuous Discharge	92.05 Amps
Max Charge Amps	15.16595744 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	120
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	7.5838928 lbs
