Furnish New Battery Ritar FT G Series FT12 100G V24A V0 F14 M8

Name: Furnish_New_Battery_Ritar_FT_G_Series_FT12_100G_V24A_V0_F14_M8
Brand: Pb_Ca_VRLA_GEL.png
SKU: Furnish_New_Battery_Ritar_FT_G_Series_FT12_100G_V24A_V0_F14_M8
Price: 295.49 USD
Availability: InStock

Technology: Pb_Ca_VRLA_GEL.png
Furnish New Battery Ritar FT G Series FT12 100G V24A V0 F14 M8

$295.49

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Ritar FT G Series FT12 100G V24A V0 F14 M8

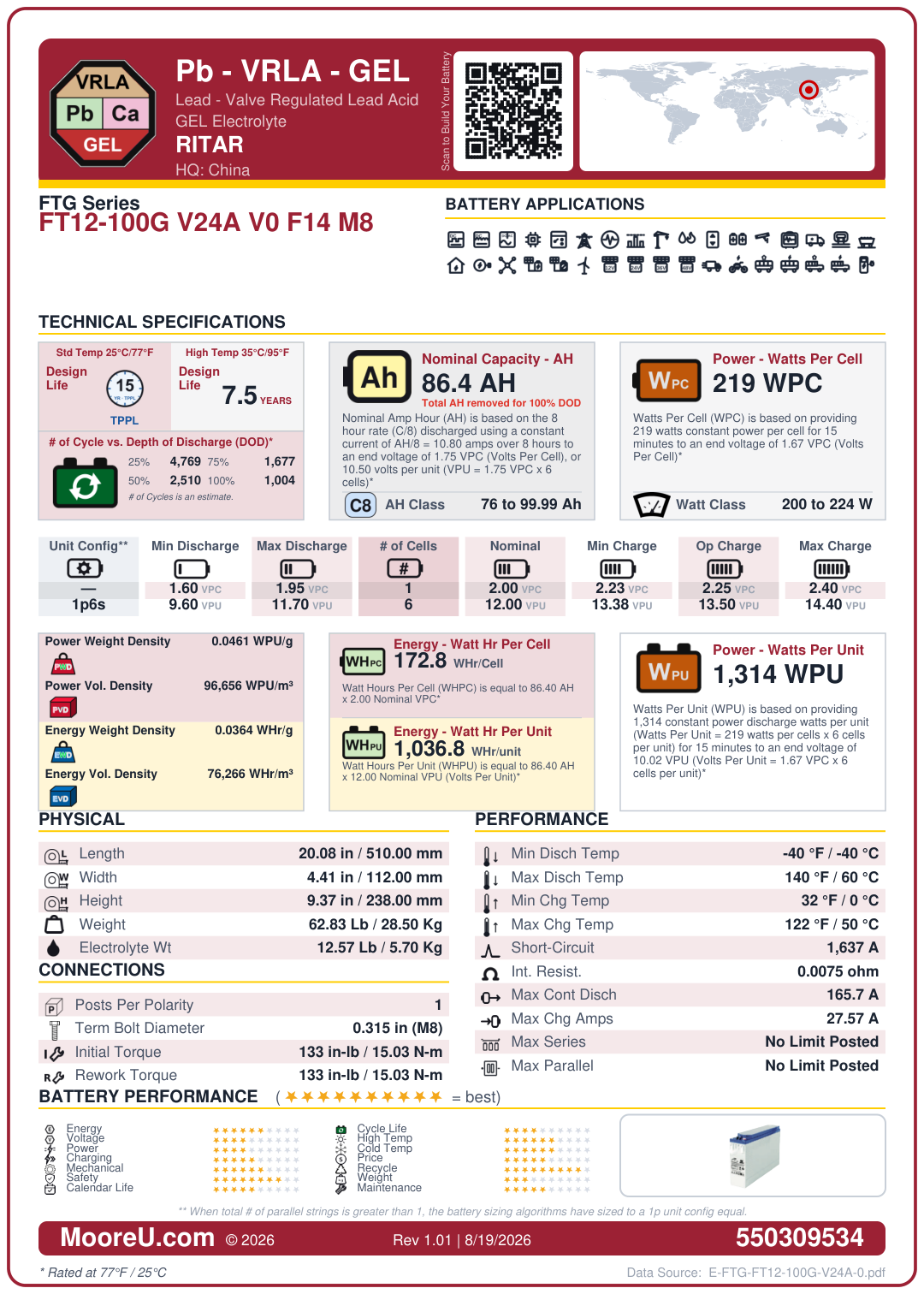

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Ritar FT G Series FT12 100G V24A V0 F14 M8
Adjustment	1
AH Per String	86.4
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.4, Max: 2.5)
Discharge VPC	Min: 1.6, Max: 1.9
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-40°C to 60°C
Charge Temp Range	0°C to 50°C
ISC Amps	1637
Internal Resistance	0.0075 Ohms
Dimensions (L x W x H)	20.078751 x 4.4094512 x 9.3700838 in
Weight	62.83167 lbs
Number of Posts	1
Terminal Bolt Diameter	0.315 in (M8 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	M8
FOB	T
Max Continuous Discharge	165.7 Amps
Max Charge Amps	27.57446807 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	219
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.566334 lbs
