Furnish New Battery Ritar FT G Series FT12 160G V25A V0 F14 M8
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery Ritar FT G Series FT12 160G V25A V0 F14 M8
$473.33
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery Ritar FT G Series FT12 160G V25A V0 F14 M8

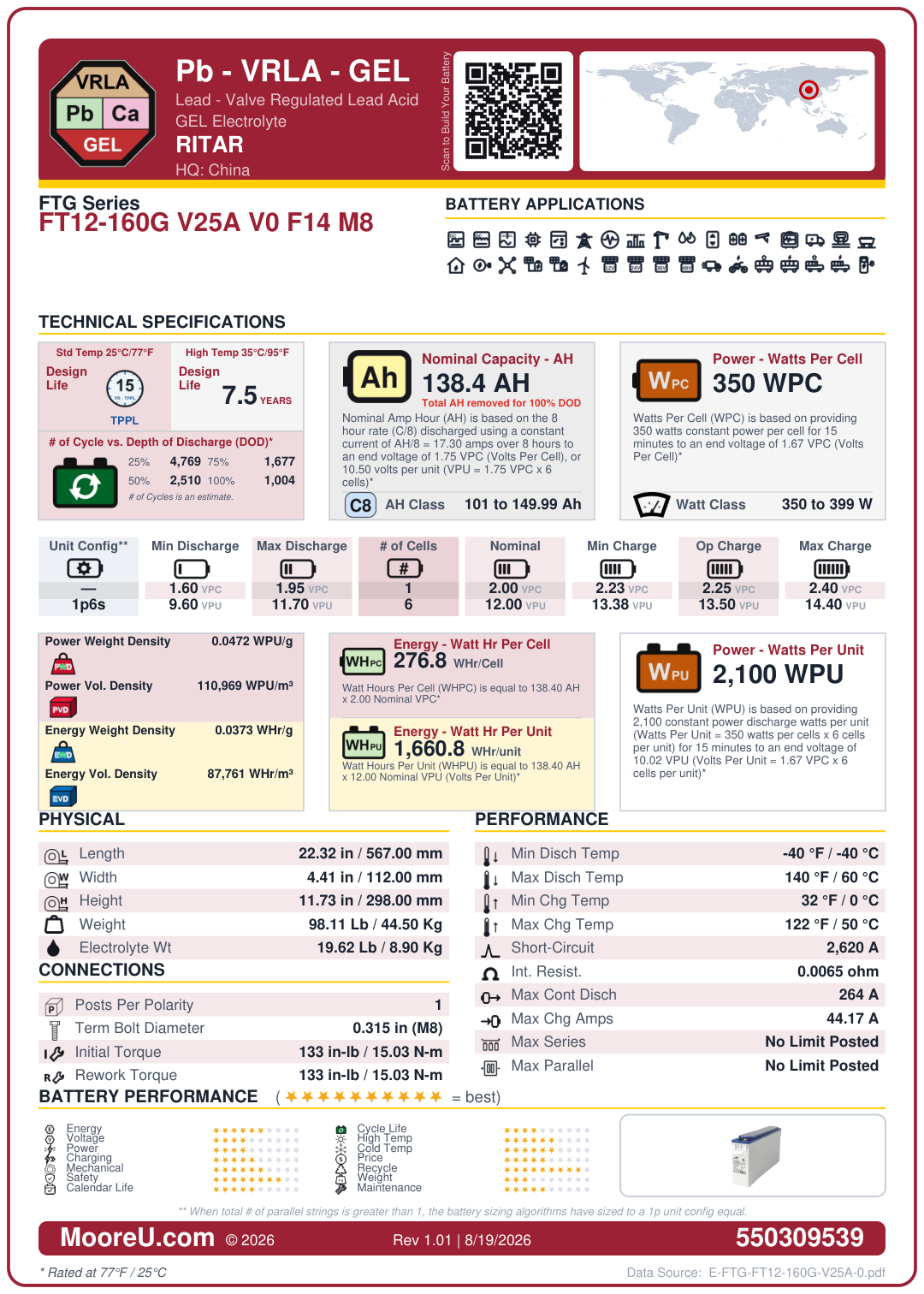

| Battery Model | Ritar FT G Series FT12 160G V25A V0 F14 M8 |
|---|---|
| Adjustment | 1 |
| AH Per String | 138.4 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -40°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 2620 |
| Internal Resistance | 0.0065 Ohms |
| Dimensions (L x W x H) | 22.3228467 x 4.4094512 x 11.7322898 in |
| Weight | 98.10559 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.315 in (M8 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M8 |
| FOB | T |
| Max Continuous Discharge | 264 Amps |
| Max Charge Amps | 44.17021274 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 350 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 19.621118 lbs |
