Furnish New Battery East Penn Deka Unigy I 12AVR130 0982 0 25
Technology: Pb_VRLA_AGM.pngFurnish New Battery East Penn Deka Unigy I 12AVR130 0982 0 25
$401.36
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery

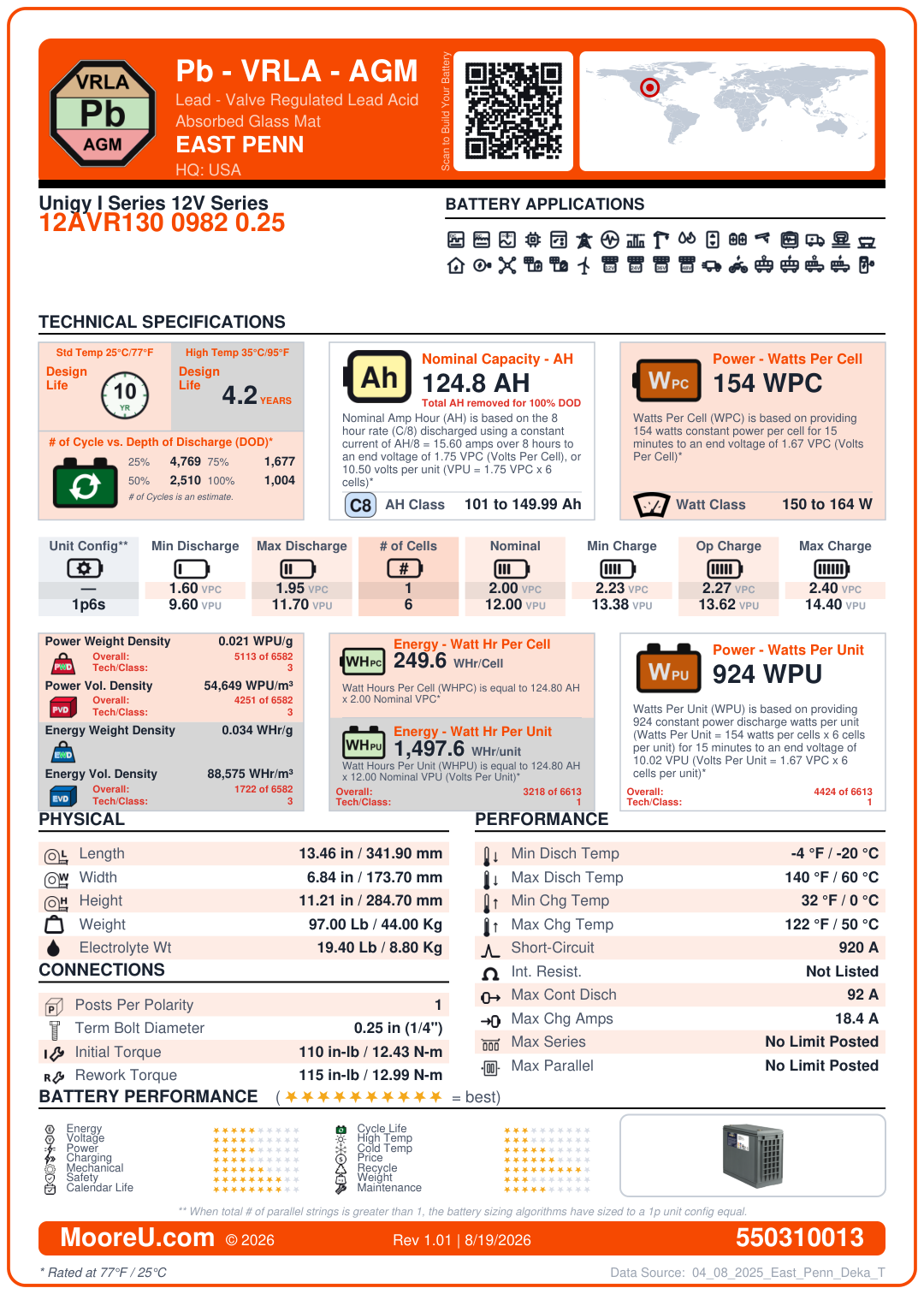

Furnish New Battery East Penn Deka Unigy I 12AVR130 0982 0 25
| Battery Model | East Penn Deka Unigy I 12AVR130 0982 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 124.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 920 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 13.46063719 x 6.83858637 x 11.20866747 in |
| Weight | 97.00328 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | 0_25 |
| FOB | T |
| Max Continuous Discharge | 92 Amps |
| Max Charge Amps | 18.4 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 154 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 19.400656 lbs |
