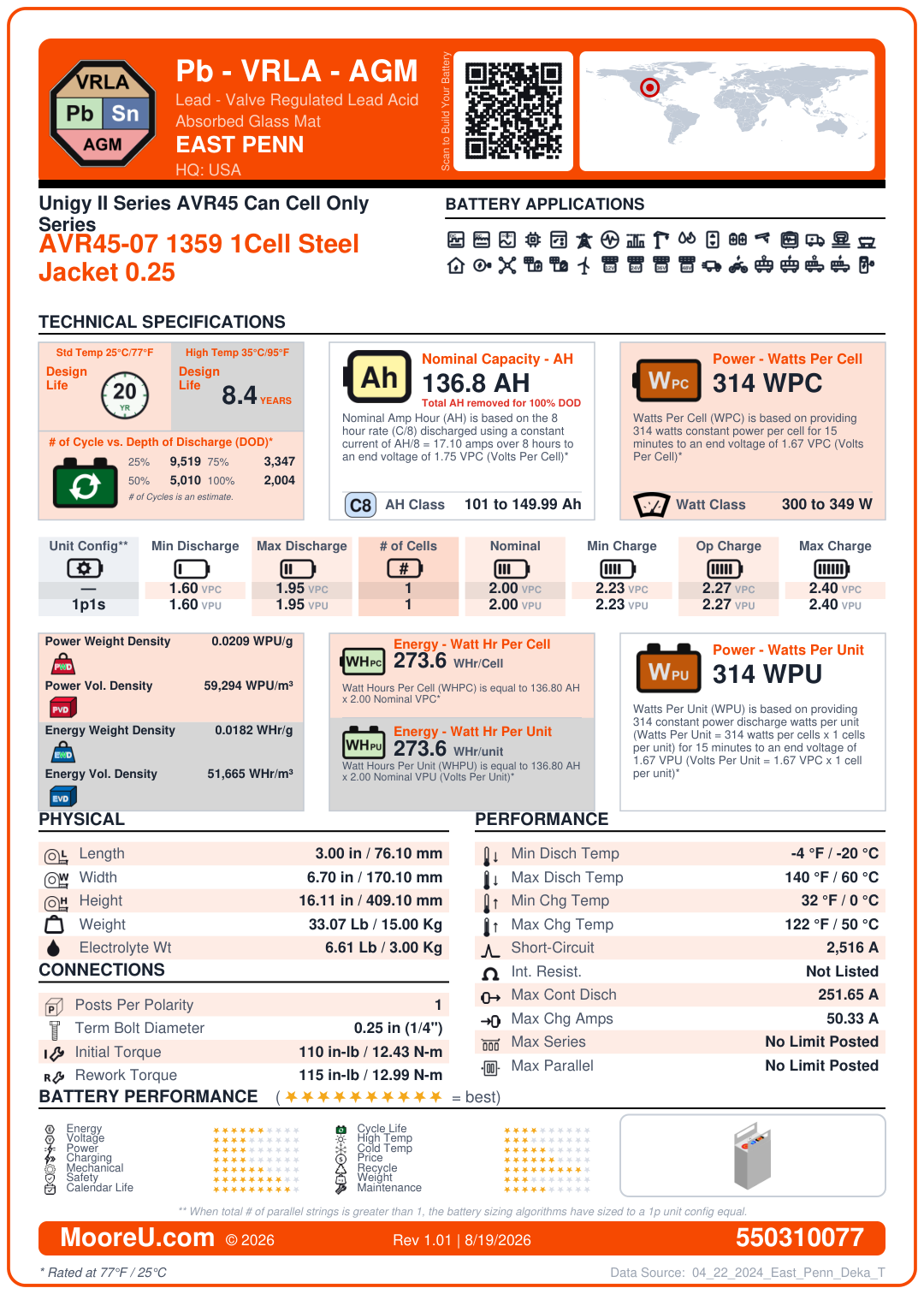

Furnish New Battery East Penn Deka Unigy II AVR45 07 1359 1Cell Steel Jacket 0 25
Technology: Pb_Sn_VRLA_AGM.pngFurnish New Battery East Penn Deka Unigy II AVR45 07 1359 1Cell Steel Jacket 0 25
$113.00
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery East Penn Deka Unigy II AVR45 07 1359 1Cell Steel Jacket 0 25
| Battery Model | East Penn Deka Unigy II AVR45 07 1359 1Cell Steel Jacket 0 25 |
|---|---|
| Adjustment | 1 |
| AH Per String | 136.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 0 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 2516 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 2.99606461 x 6.69685401 x 16.10630791 in |
| Weight | 33.0693 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.25 in (0_25 mm) |
| Torque (Initial / Maintenance) | 110 / 115 in-lbs |
| Container | V0 |
| Terminal | Square Post P |
| FOB | T |
| Max Continuous Discharge | 251.6482036 Amps |
| Max Charge Amps | 50.32964072 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 314 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 6.61386 lbs |
| Part Number | Description | Dimensions (L x W x H) | Max Capacity |
|---|---|---|---|
| Furnish New Battery Enclosure MNBE D (1 shelf) L16 L16 midnitesolar.com | Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br | 34.000 x 15.250 x 16.41 in |
50 units |
| Furnish New Battery Enclosure MNBE C (2 Shelf) L16 L16 midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 16.41 in |
75 units |
| Furnish New Battery Enclosure MNBE CL16 (1 Shelf) L16 L16 midnitesolar.com | MNBE-CL16 Battery Enclosure with locking door and two shelves. Holds eight sealed L-16 batteries. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosure size: 36.5" wide x 16" deep x 55" tall/261 Lbs including pallet (tr | 34.000 x 15.250 x 16.41 in |
50 units |
