Furnish New Battery East Penn Deka Solar G105 09 1581 1Cell Steel Jacket 0 3125
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery East Penn Deka Solar G105 09 1581 1Cell Steel Jacket 0 3125
$206.04
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery East Penn Deka Solar G105 09 1581 1Cell Steel Jacket 0 3125

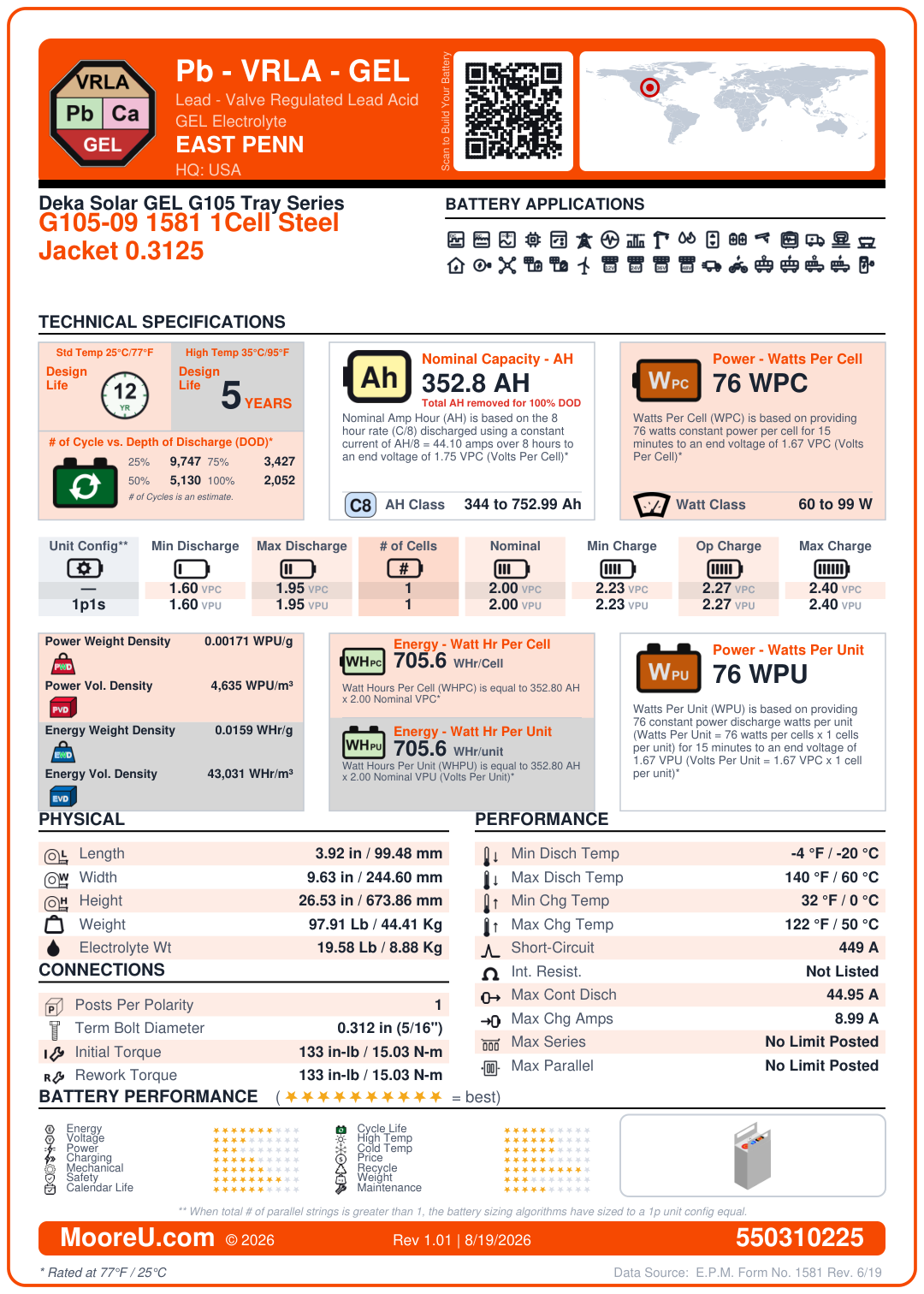

| Battery Model | East Penn Deka Solar G105 09 1581 1Cell Steel Jacket 0 3125 |
|---|---|
| Adjustment | 1 |
| AH Per String | 352.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 449 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 3.916666667 x 9.63 x 26.53 in |
| Weight | 97.90909091 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3125 in (0_31 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | 0_3125 |
| FOB | T |
| Max Continuous Discharge | 44.95 Amps |
| Max Charge Amps | 8.99 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 76 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 19.58181818 lbs |
