Furnish New Battery East Penn Deka Solar GEL 8G22NF 0919 0 3125
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery East Penn Deka Solar GEL 8G22NF 0919 0 3125
$134.09
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery East Penn Deka Solar GEL 8G22NF 0919 0 3125

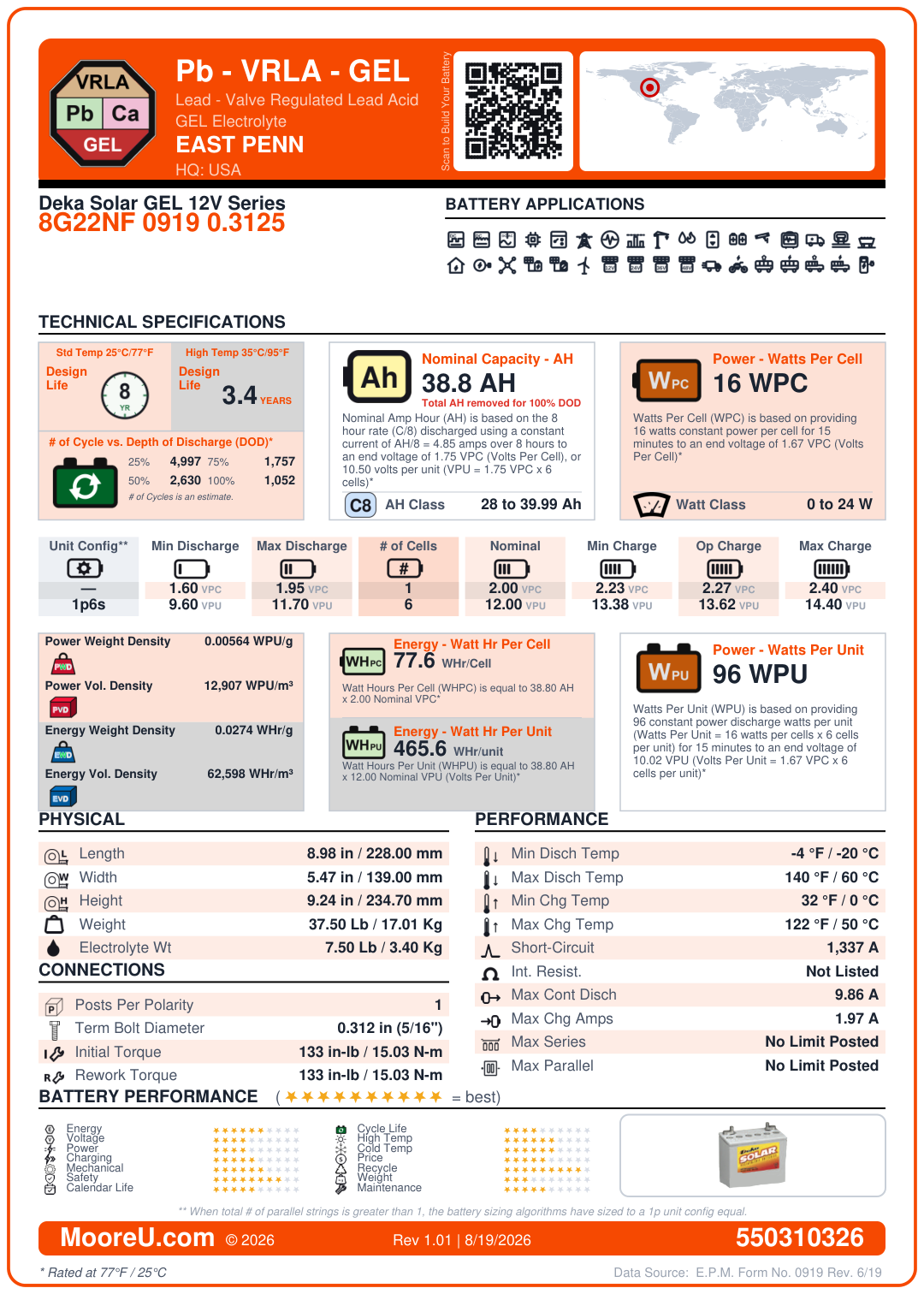

| Battery Model | East Penn Deka Solar GEL 8G22NF 0919 0 3125 |
|---|---|
| Adjustment | 1 |
| AH Per String | 38.8 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 0 |
| Charge VPC | 2.4 (Min: 2.4, Max: 2.5) |
| Discharge VPC | Min: 1.6, Max: 1.9 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 60°C |
| Charge Temp Range | 0°C to 50°C |
| ISC Amps | 1337 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 8.9763828 x 5.4724439 x 12.7952825 in |
| Weight | 37.5 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.3125 in (0_31 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | 0_3125 |
| FOB | T |
| Max Continuous Discharge | 9.86 Amps |
| Max Charge Amps | 1.972 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 16 |
| Watts Per Cell Rating | 15 min @ 1.67 VPC |
| Weight of Electrolyte | 7.5 lbs |
| Part Number | Description | Dimensions (L x W x H) | Max Capacity |
|---|---|---|---|
| Furnish New Battery Enclosure MNBE D (1 shelf) PVX3050 PVX3050 midnitesolar.com | Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br | 34.000 x 15.250 x 12.94 in |
12 units |
| Furnish New Battery Enclosure MNBE D3R (1 shelf) PVX3050 PVX3050 midnitesolar.com | Rain tight white powder coated aluminum battery enclosure with locking door and two shelves. This unit is vented. MNBE-D holds 8 PVX3050T or 8 golf cart or 8 group 31 batteries. Ships knocked down in two boxes. An aluminum outdoor enclosure which is ident | 34.000 x 15.250 x 12.94 in |
12 units |
| Furnish New Battery Enclosure MNBE C (2 Shelf) PVX3050 PVX3050 midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 12.94 in |
18 units |
| Furnish New Battery Enclosure MNBE D (1 shelf) Golf Cart Golf Cart midnitesolar.com | Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br | 34.000 x 15.250 x 12.94 in |
12 units |
| Furnish New Battery Enclosure MNBE D (2 shelf) Golf Cart Golf Cart midnitesolar.com | Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br | 34.000 x 15.250 x 12.94 in |
18 units |
| Furnish New Battery Enclosure MNBE D3R (1 shelf) Golf Cart Golf Cart midnitesolar.com | Rain tight white powder coated aluminum battery enclosure with locking door and two shelves. This unit is vented. MNBE-D holds 8 PVX3050T or 8 golf cart or 8 group 31 batteries. Ships knocked down in two boxes. An aluminum outdoor enclosure which is ident | 34.000 x 15.250 x 12.94 in |
12 units |
| Furnish New Battery Enclosure MNBE C (2 Shelf) Golf Cart Golf Cart midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 12.94 in |
18 units |
| Furnish New Battery Enclosure MNBE D (1 shelf) L16 L16 midnitesolar.com | Our Best Value! Battery Enclosure with locking door and two shelves. MNBE-D holds 8 GVX3050T or 8 golf cart or 8 group 31 batteries. With the optional third shelf, the MNBE-D holds 12 group 31 batteries. MNBE-D battery enclosure accepts MNEDC175 or 250 br | 34.000 x 15.250 x 16.41 in |
12 units |
| Furnish New Battery Enclosure MNBE C (2 Shelf) L16 L16 midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 16.41 in |
18 units |
| Furnish New Battery Enclosure MNBE CL16 (1 Shelf) L16 L16 midnitesolar.com | MNBE-CL16 Battery Enclosure with locking door and two shelves. Holds eight sealed L-16 batteries. Gray powder coated steel. Two cabinets can be stacked horizontal for expansion. Enclosure size: 36.5" wide x 16" deep x 55" tall/261 Lbs including pallet (tr | 34.000 x 15.250 x 16.41 in |
12 units |
