Furnish New Battery LG Battery Energy Cell Prismatic NMC E78 78AH 3 67Vdc 286WH Tab

Name: Furnish_New_Battery_LG_Battery_Energy_Cell_Prismatic_NMC_E78_78AH_3_67Vdc_286WH_Tab
Brand: Li_NMC.png
SKU: Furnish_New_Battery_LG_Battery_Energy_Cell_Prismatic_NMC_E78_78AH_3_67Vdc_286WH_Tab
Price: 254.25 USD
Availability: InStock

Technology: Li_NMC.png
Furnish New Battery LG Battery Energy Cell Prismatic NMC E78 78AH 3 67Vdc 286WH Tab

$254.25

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery Energy Cell Prismatic NMC E78 78AH 3 67Vdc 286WH Tab

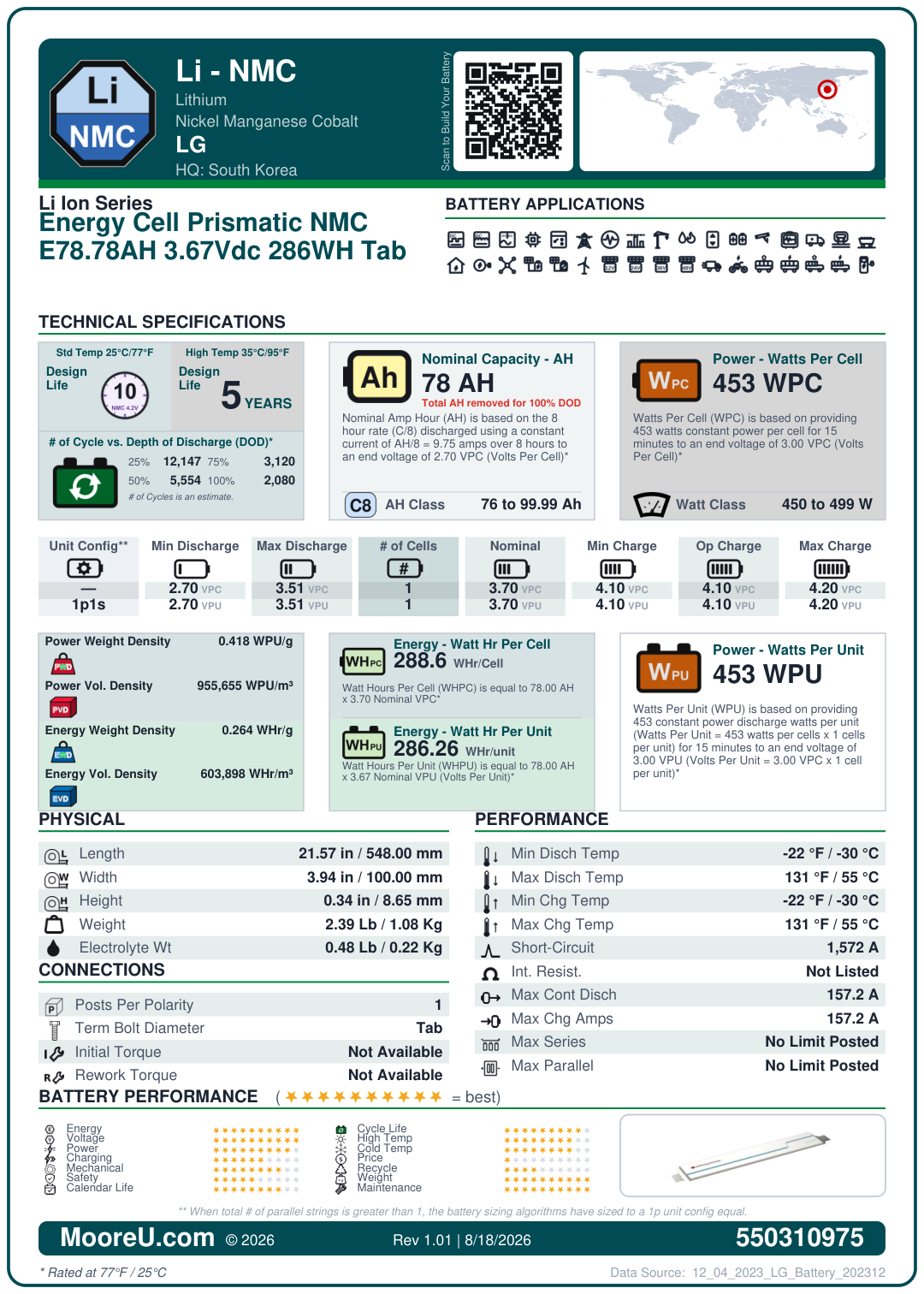

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery Energy Cell Prismatic NMC E78 78AH 3 67Vdc 286WH Tab
Adjustment	1
AH Per String	78
AH Per String Rating	8 hr @ 2.7 VPC
Cells Per Unit	1
Nominal VPC	3.69
Model KWH	0
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 2.7, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-30°C to 55°C
Charge Temp Range	-30°C to 55°C
ISC Amps	1572
Internal Resistance	0 Ohms
Dimensions (L x W x H)	21.5748 x 3.93701 x 0.3405512 in
Weight	2.3876063 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Tab mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	T
Max Continuous Discharge	157.2 Amps
Max Charge Amps	157.2 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	453
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	0.47752126 lbs
