Furnish New Battery LG Battery Energy Cell Prismatic NMCA E79 78AH 3 69Vdc 287WH Tab

Name: Furnish_New_Battery_LG_Battery_Energy_Cell_Prismatic_NMCA_E79_78AH_3_69Vdc_287WH_Tab
Brand: Li_NMC.png
SKU: Furnish_New_Battery_LG_Battery_Energy_Cell_Prismatic_NMCA_E79_78AH_3_69Vdc_287WH_Tab
Price: 254.25 USD
Availability: InStock

Technology: Li_NMC.png
Furnish New Battery LG Battery Energy Cell Prismatic NMCA E79 78AH 3 69Vdc 287WH Tab

$254.25

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery Energy Cell Prismatic NMCA E79 78AH 3 69Vdc 287WH Tab

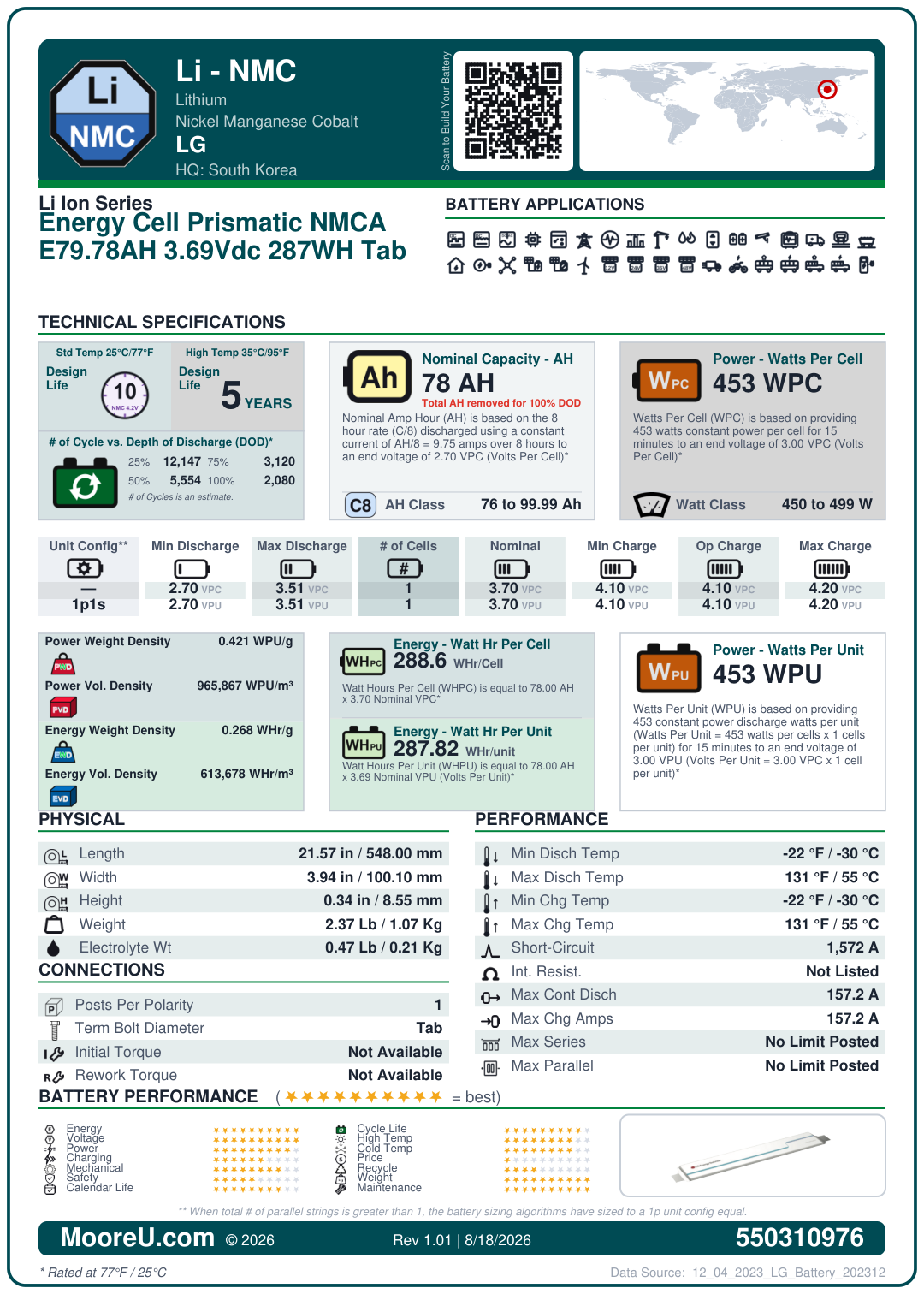

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery Energy Cell Prismatic NMCA E79 78AH 3 69Vdc 287WH Tab
Adjustment	1
AH Per String	78
AH Per String Rating	8 hr @ 2.7 VPC
Cells Per Unit	1
Nominal VPC	3.69
Model KWH	0
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 2.7, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-30°C to 55°C
Charge Temp Range	-30°C to 55°C
ISC Amps	1572
Internal Resistance	0 Ohms
Dimensions (L x W x H)	21.5748 x 3.9409449 x 0.3366142 in
Weight	2.3699693 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Tab mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	T
Max Continuous Discharge	157.2 Amps
Max Charge Amps	157.2 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	453
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	0.47399386 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
