Furnish New Battery LG Battery Energy Cell Prismatic NMCA E56A 56AH 3 66Vdc 205WH Tab

Name: Furnish_New_Battery_LG_Battery_Energy_Cell_Prismatic_NMCA_E56A_56AH_3_66Vdc_205WH_Tab
Brand: Li_NMC.png
SKU: Furnish_New_Battery_LG_Battery_Energy_Cell_Prismatic_NMCA_E56A_56AH_3_66Vdc_205WH_Tab
Price: 181.04 USD
Availability: InStock

Technology: Li_NMC.png
Furnish New Battery LG Battery Energy Cell Prismatic NMCA E56A 56AH 3 66Vdc 205WH Tab

$181.04

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery Energy Cell Prismatic NMCA E56A 56AH 3 66Vdc 205WH Tab

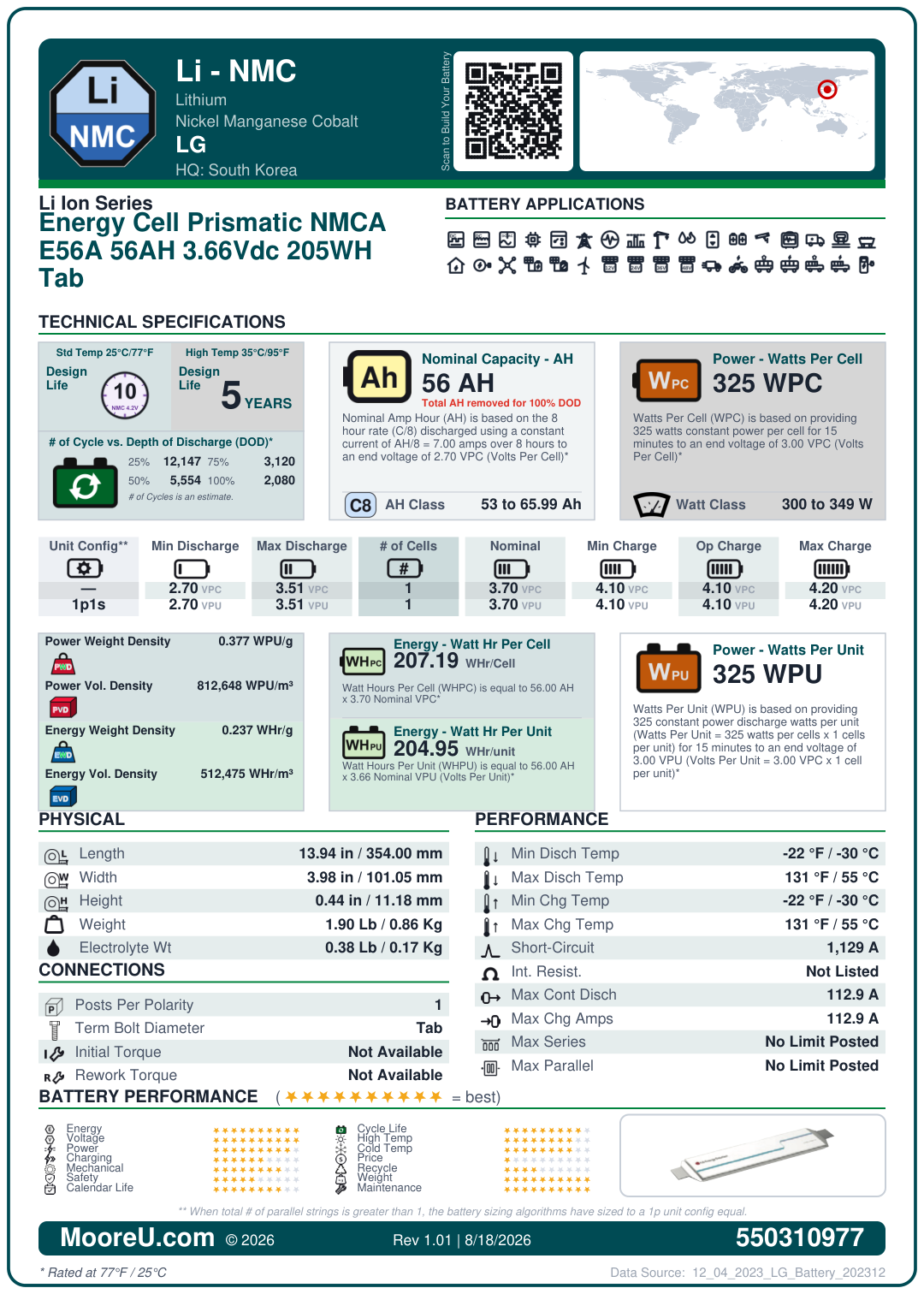

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery Energy Cell Prismatic NMCA E56A 56AH 3 66Vdc 205WH Tab
Adjustment	1
AH Per String	55.998
AH Per String Rating	8 hr @ 2.7 VPC
Cells Per Unit	1
Nominal VPC	3.66
Model KWH	0
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 2.7, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-30°C to 55°C
Charge Temp Range	-30°C to 55°C
ISC Amps	1129
Internal Resistance	0 Ohms
Dimensions (L x W x H)	13.937 x 3.97834646 x 0.44015748 in
Weight	1.902589 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Tab mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	T
Max Continuous Discharge	112.9 Amps
Max Charge Amps	112.9 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	325
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	0.3805178 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
