Furnish New Battery LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab
Technology: Li_NMC.pngFurnish New Battery LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab
$330.02
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery

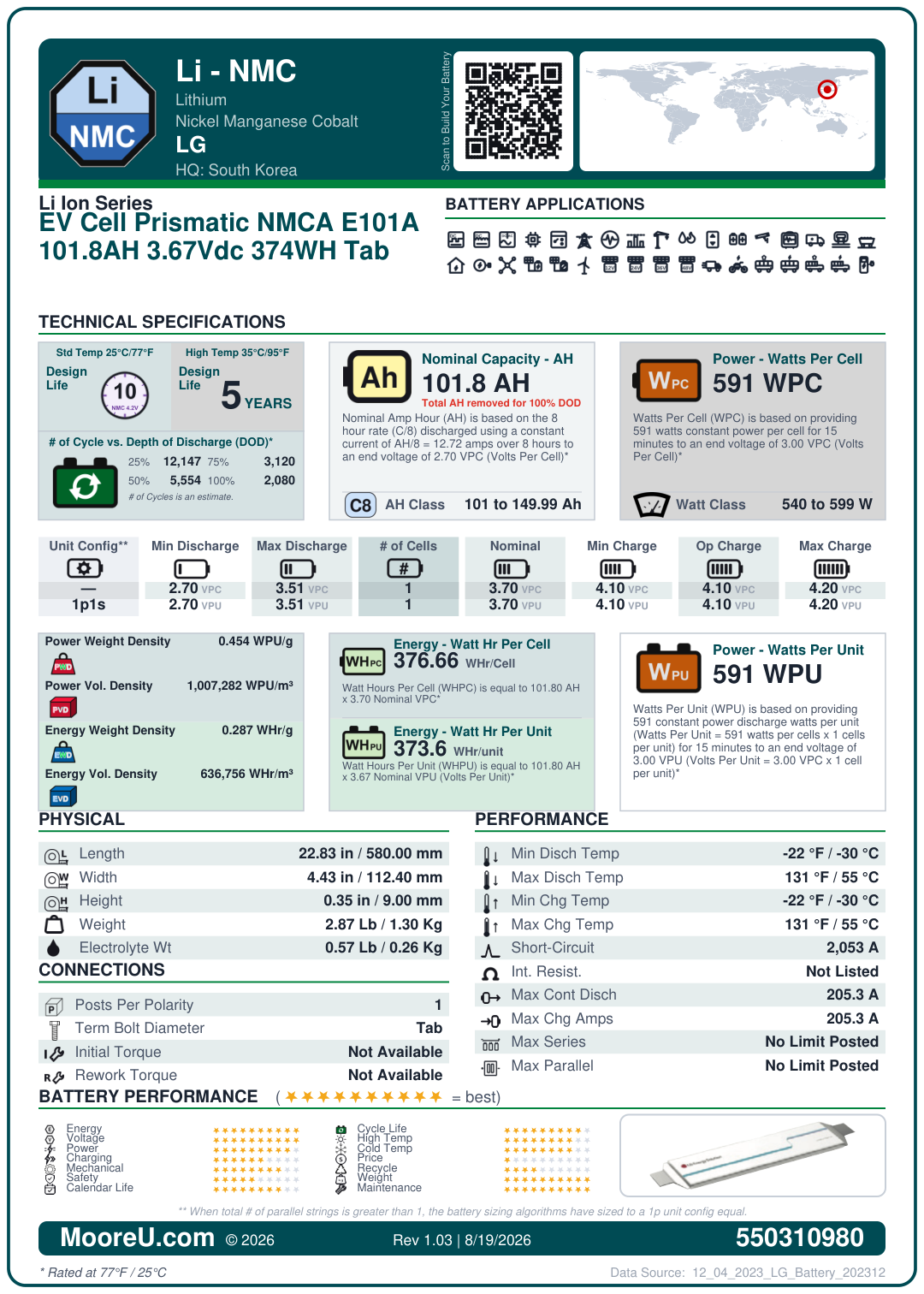

Furnish New Battery LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab
| Battery Model | LG Battery EV Cell Prismatic NMCA E101A 101 8AH 3 67Vdc 374WH Tab |
|---|---|
| Adjustment | 1 |
| AH Per String | 101.799 |
| AH Per String Rating | 8 hr @ 2.7 VPC |
| Cells Per Unit | 1 |
| Nominal VPC | 3.67 |
| Model KWH | 0 |
| Charge VPC | 4.2 (Min: 4.1, Max: 4.2) |
| Discharge VPC | Min: 2.7, Max: 3.51 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -30°C to 55°C |
| Charge Temp Range | -30°C to 55°C |
| ISC Amps | 2053 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 22.8346 x 4.4251969 x 0.354331 in |
| Weight | 2.8726233 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Tab mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Tab |
| FOB | T |
| Max Continuous Discharge | 205.3 Amps |
| Max Charge Amps | 205.3 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 591 |
| Watts Per Cell Rating | 15 min @ 3 VPC |
| Weight of Electrolyte | 0.57452466 lbs |
