Furnish New Battery LG Battery EV Cell Prismatic LFP JF1 56 6AH 3 22Vdc 182 25WH Tab

Name: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_LFP_JF1_56_6AH_3_22Vdc_182_25WH_Tab
Brand: Li_LFP.png
SKU: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_LFP_JF1_56_6AH_3_22Vdc_182_25WH_Tab
Price: 160.99 USD
Availability: InStock

Technology: Li_LFP.png
Furnish New Battery LG Battery EV Cell Prismatic LFP JF1 56 6AH 3 22Vdc 182 25WH Tab

$160.99

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery EV Cell Prismatic LFP JF1 56 6AH 3 22Vdc 182 25WH Tab

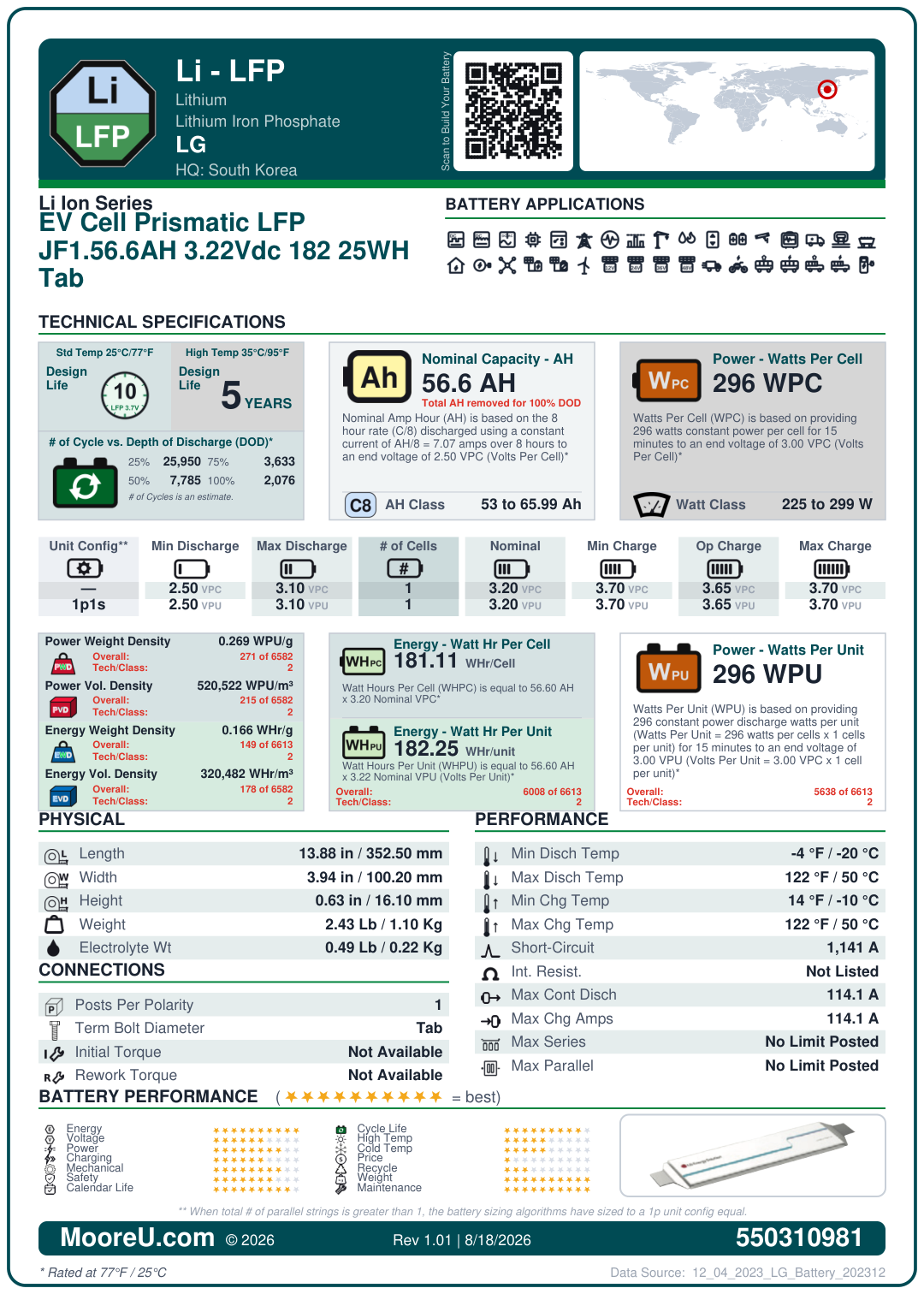

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery EV Cell Prismatic LFP JF1 56 6AH 3 22Vdc 182 25WH Tab
Adjustment	1
AH Per String	56.598
AH Per String Rating	8 hr @ 2.5 VPC
Cells Per Unit	1
Nominal VPC	3.22
Model KWH	0
Charge VPC	3.65 (Min: 3.65, Max: 3.65)
Discharge VPC	Min: 2.5, Max: 3.15
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 50°C
Charge Temp Range	-10°C to 50°C
ISC Amps	1141
Internal Resistance	0 Ohms
Dimensions (L x W x H)	13.877953 x 3.9448819 x 0.6338583 in
Weight	2.42508 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Tab mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	T
Max Continuous Discharge	114.1 Amps
Max Charge Amps	114.1 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	296
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	0.485016 lbs
