Furnish New Battery LG Battery EV Cell Prismatic NMC JH4 70 6AH 4 2Vdc 266WH Tab

Name: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_NMC_JH4_70_6AH_4_2Vdc_266WH_Tab
Brand: Li_NMC.png
SKU: Furnish_New_Battery_LG_Battery_EV_Cell_Prismatic_NMC_JH4_70_6AH_4_2Vdc_266WH_Tab
Price: 249.45 USD
Availability: InStock

Technology: Li_NMC.png
Furnish New Battery LG Battery EV Cell Prismatic NMC JH4 70 6AH 4 2Vdc 266WH Tab

$249.45

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery EV Cell Prismatic NMC JH4 70 6AH 4 2Vdc 266WH Tab

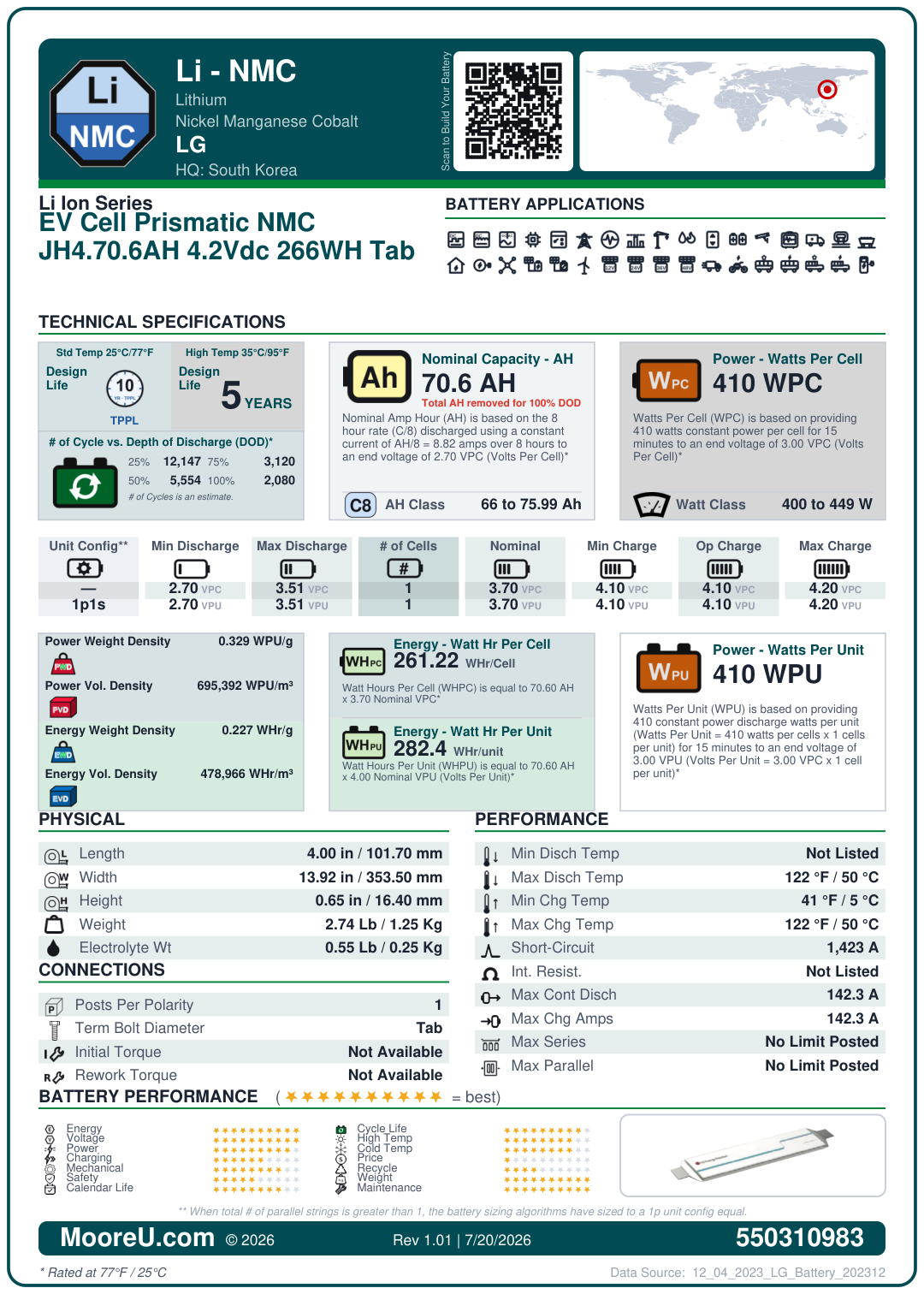

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery EV Cell Prismatic NMC JH4 70 6AH 4 2Vdc 266WH Tab
Adjustment	1
AH Per String	70.599
AH Per String Rating	8 hr @ 2.7 VPC
Cells Per Unit	1
Nominal VPC	4
Model KWH	0
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 2.7, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	0°C to 50°C
Charge Temp Range	5°C to 50°C
ISC Amps	1423
Internal Resistance	0 Ohms
Dimensions (L x W x H)	4.003937 x 13.917323 x 0.6456693 in
Weight	2.7447552 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Tab mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Tab
FOB	T
Max Continuous Discharge	142.3 Amps
Max Charge Amps	142.3 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	410
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	0.54895104 lbs
