Furnish New Battery LG Battery EV Prismatic NMC Module Short Module VDA 390 2p6s 144 4AH 4 2vpc Plug

Name: Furnish_New_Battery_LG_Battery_EV_Prismatic_NMC_Module_Short_Module_VDA_390_2p6s_144_4AH_4_2vpc_Plug
Brand: Li_NMC.png
SKU: Furnish_New_Battery_LG_Battery_EV_Prismatic_NMC_Module_Short_Module_VDA_390_2p6s_144_4AH_4_2vpc_Plug
Price: 468.13 USD
Availability: InStock

Technology: Li_NMC.png
Furnish New Battery LG Battery EV Prismatic NMC Module Short Module VDA 390 2p6s 144 4AH 4 2vpc Plug

$468.13

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery EV Prismatic NMC Module Short Module VDA 390 2p6s 144 4AH 4 2vpc Plug

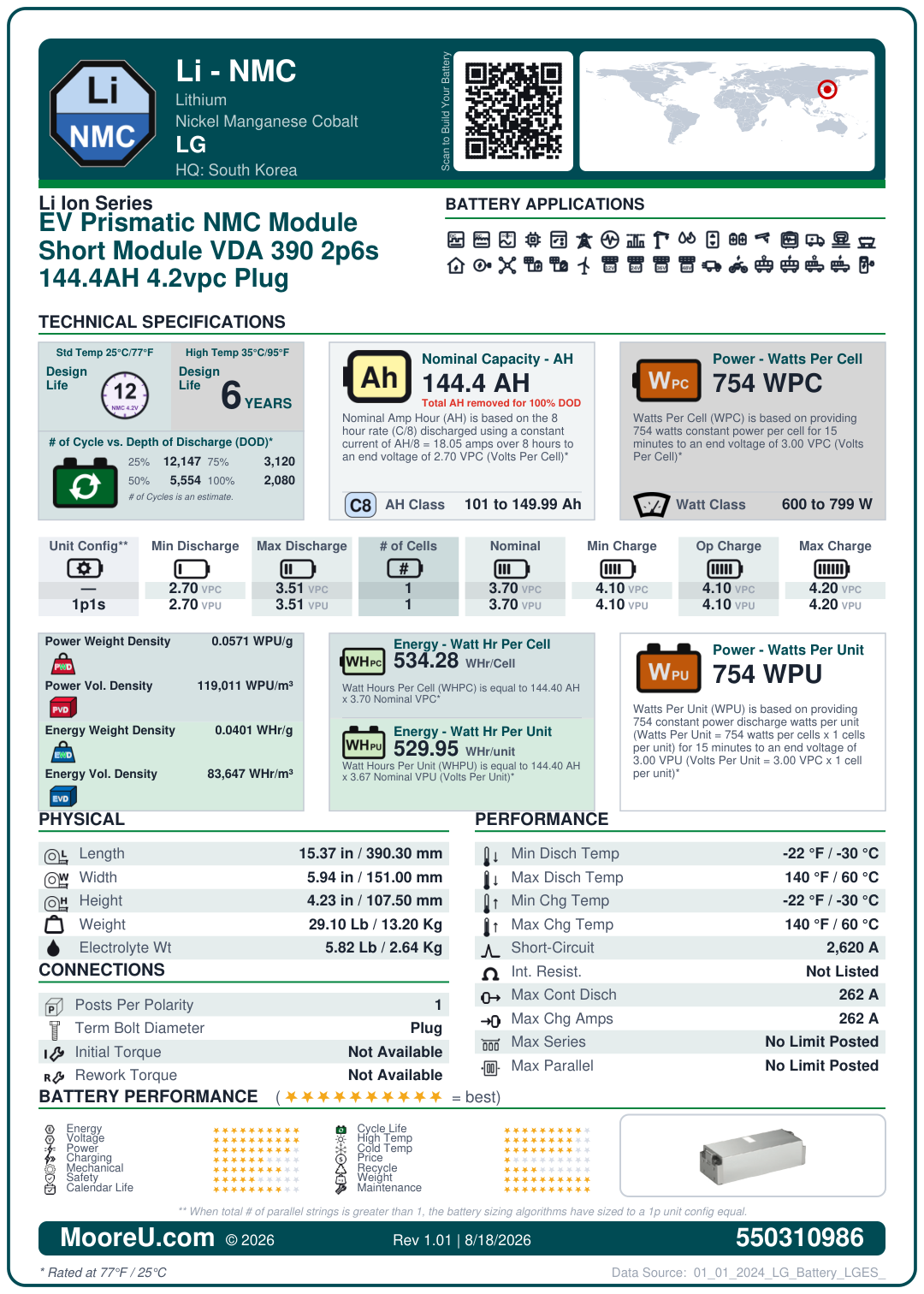

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery EV Prismatic NMC Module Short Module VDA 390 2p6s 144 4AH 4 2vpc Plug
Adjustment	1
AH Per String	144.4
AH Per String Rating	8 hr @ 2.7 VPC
Cells Per Unit	1
Nominal VPC	3.67
Model KWH	1
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 2.8, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-30°C to 60°C
Charge Temp Range	-30°C to 60°C
ISC Amps	2620
Internal Resistance	0 Ohms
Dimensions (L x W x H)	15.366142 x 5.94488 x 4.2322835 in
Weight	29.10102 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Plug mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Plug
FOB	T
Max Continuous Discharge	262 Amps
Max Charge Amps	262 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	754
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	5.820204 lbs
