Furnish New Battery LG Battery EV Prismatic Short Module E66C 3P4S NMC 196 2AH 14 68Vdc 2 88KWH Plug

Name: Furnish_New_Battery_LG_Battery_EV_Prismatic_Short_Module_E66C_3P4S_NMC_196_2AH_14_68Vdc_2_88KWH_Plug
Brand: Li_NMC.png
SKU: Furnish_New_Battery_LG_Battery_EV_Prismatic_Short_Module_E66C_3P4S_NMC_196_2AH_14_68Vdc_2_88KWH_Plug
Price: 2469.61 USD
Availability: InStock

Technology: Li_NMC.png
Furnish New Battery LG Battery EV Prismatic Short Module E66C 3P4S NMC 196 2AH 14 68Vdc 2 88KWH Plug

$2,469.61

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery EV Prismatic Short Module E66C 3P4S NMC 196 2AH 14 68Vdc 2 88KWH Plug

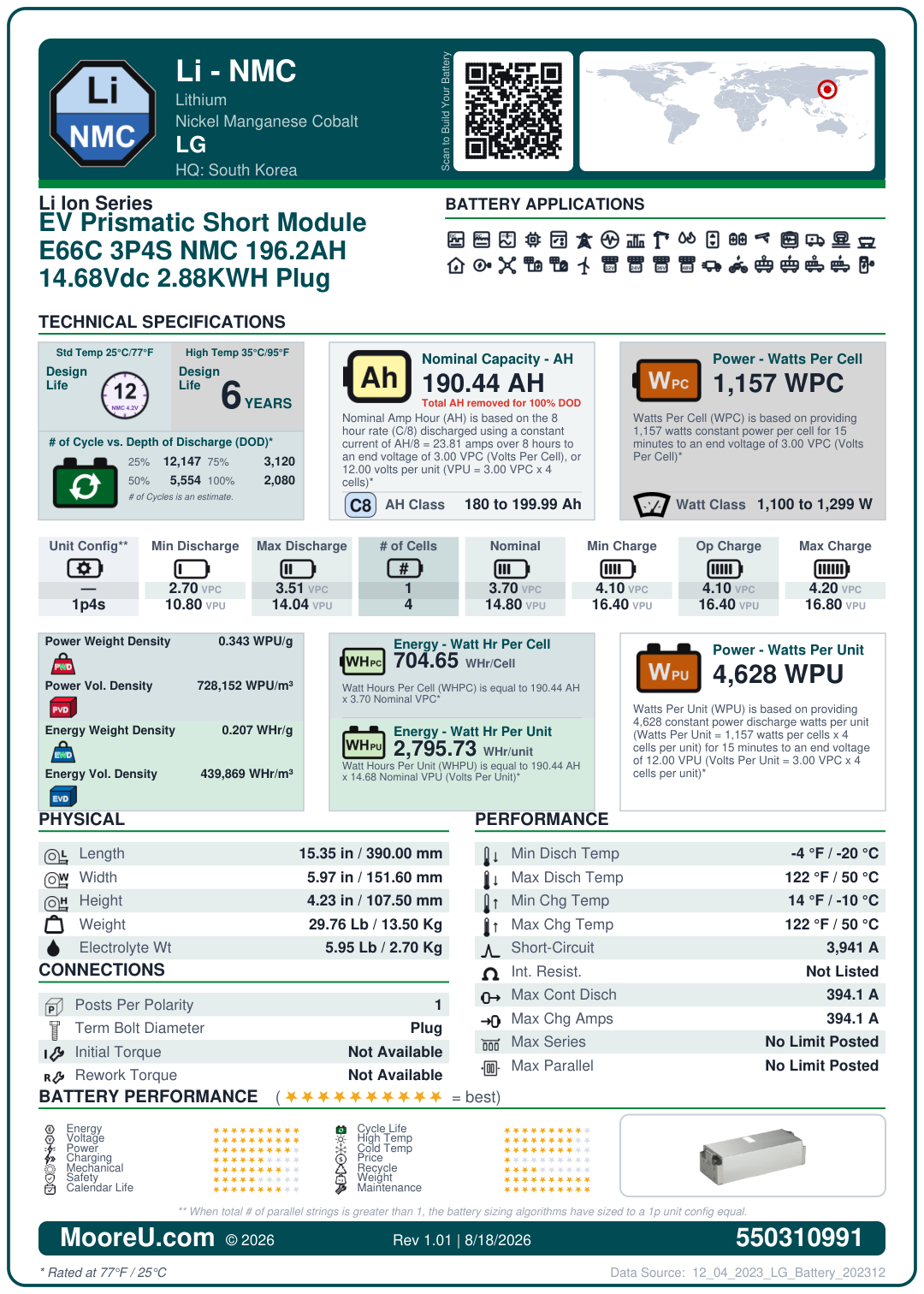

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery EV Prismatic Short Module E66C 3P4S NMC 196 2AH 14 68Vdc 2 88KWH Plug
Adjustment	1
AH Per String	190.4448
AH Per String Rating	8 hr @ 3 VPC
Cells Per Unit	4
Nominal VPC	3.67
Model KWH	3
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 3, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 50°C
Charge Temp Range	-10°C to 50°C
ISC Amps	3941
Internal Resistance	0 Ohms
Dimensions (L x W x H)	15.3543 x 5.9685039 x 4.2322835 in
Weight	29.76241 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Plug mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Plug
FOB	T
Max Continuous Discharge	394.1 Amps
Max Charge Amps	394.1 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	1157
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	5.952482 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
