Furnish New Battery LG Battery EV Prismatic Short Module E72B 2P6S NMC 144 4AH 22 02Vdc 3 17KWH Plug

Name: Furnish_New_Battery_LG_Battery_EV_Prismatic_Short_Module_E72B_2P6S_NMC_144_4AH_22_02Vdc_3_17KWH_Plug
Brand: Li_NMC.png
SKU: Furnish_New_Battery_LG_Battery_EV_Prismatic_Short_Module_E72B_2P6S_NMC_144_4AH_22_02Vdc_3_17KWH_Plug
Price: 2756.35 USD
Availability: InStock

Technology: Li_NMC.png
Furnish New Battery LG Battery EV Prismatic Short Module E72B 2P6S NMC 144 4AH 22 02Vdc 3 17KWH Plug

$2,756.35

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery LG Battery EV Prismatic Short Module E72B 2P6S NMC 144 4AH 22 02Vdc 3 17KWH Plug

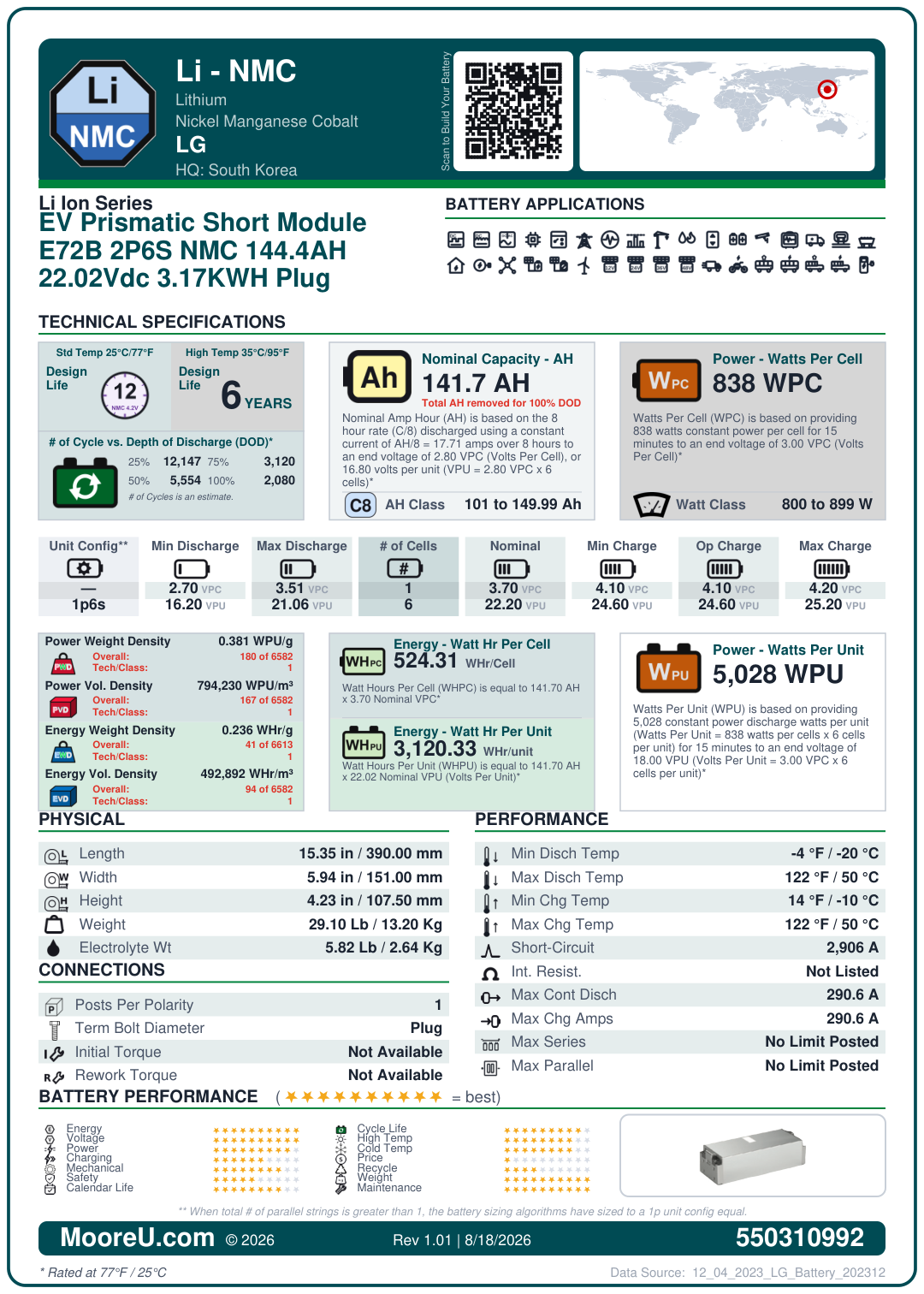

Download Technical Data Sheet

Download Product Safety Data Sheet

Battery Model	LG Battery EV Prismatic Short Module E72B 2P6S NMC 144 4AH 22 02Vdc 3 17KWH Plug
Adjustment	1
AH Per String	141.7045333
AH Per String Rating	8 hr @ 2.8 VPC
Cells Per Unit	6
Nominal VPC	3.67
Model KWH	3
Charge VPC	4.2 (Min: 4.1, Max: 4.2)
Discharge VPC	Min: 2.8, Max: 3.51
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 50°C
Charge Temp Range	-10°C to 50°C
ISC Amps	2906
Internal Resistance	0 Ohms
Dimensions (L x W x H)	15.3543 x 5.94488 x 4.2322835 in
Weight	29.10102 lbs
Number of Posts	1
Terminal Bolt Diameter	0 in (Plug mm)
Torque (Initial / Maintenance)	0 / 0 in-lbs
Container	V0
Terminal	Plug
FOB	T
Max Continuous Discharge	290.6 Amps
Max Charge Amps	290.6 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	838
Watts Per Cell Rating	15 min @ 3 VPC
Weight of Electrolyte	5.820204 lbs
