Furnish New Battery Exide Battery Marathon L XL 6V L6V180 FM6

Name: Furnish_New_Battery_Exide_Battery_Marathon_L_XL_6V_L6V180_FM6
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Exide_Battery_Marathon_L_XL_6V_L6V180_FM6
Price: 388.72 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Exide Battery Marathon L XL 6V L6V180 FM6

$388.72

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Marathon L XL 6V L6V180 FM6

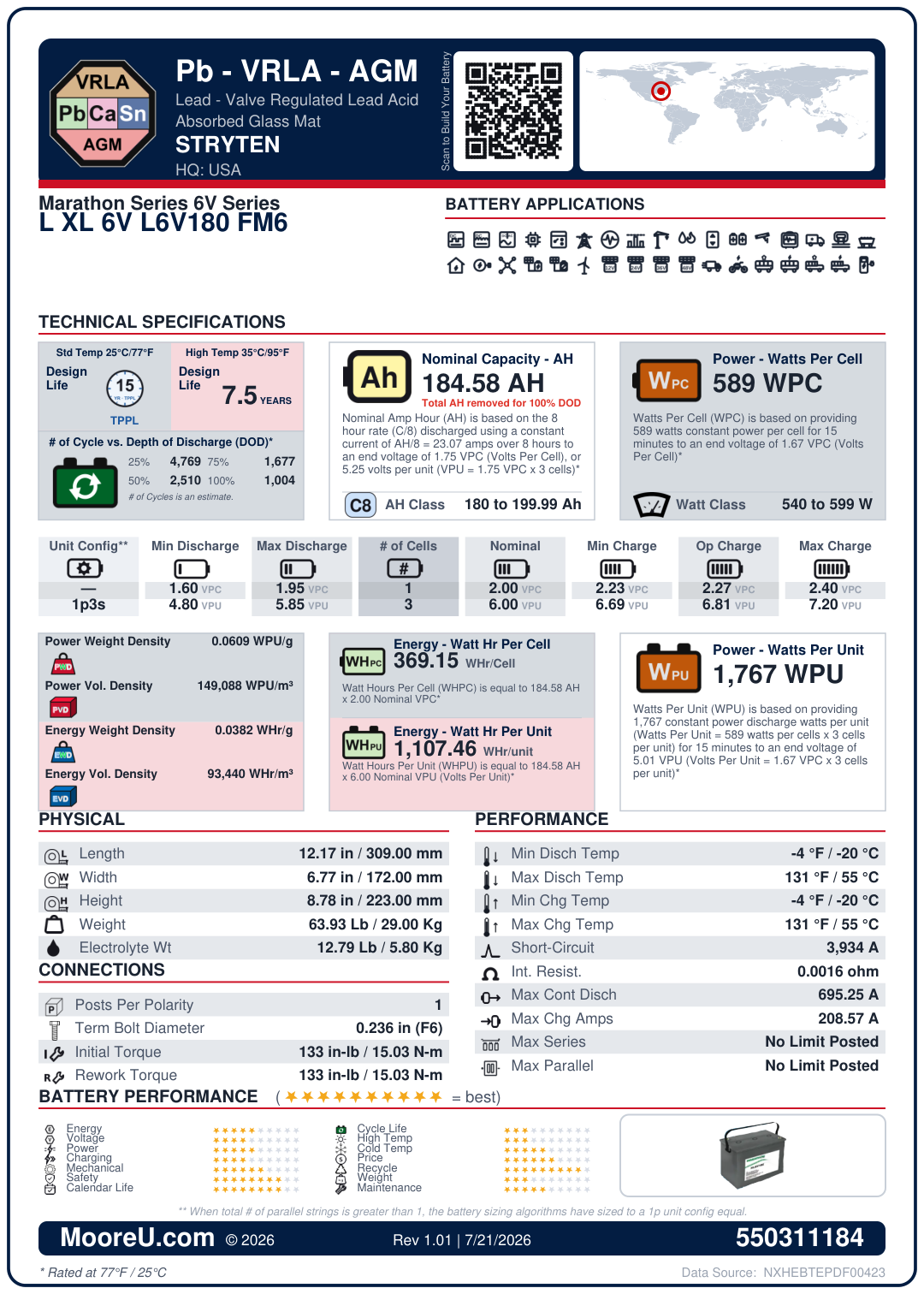

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Exide Battery Marathon L XL 6V L6V180 FM6
Adjustment	1
AH Per String	184.576
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	3
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.95
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	3934
Internal Resistance	0.0016 Ohms
Dimensions (L x W x H)	12.1653609 x 6.7716572 x 8.7795323 in
Weight	63.93398 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (F6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	F6
FOB	T
Max Continuous Discharge	695.25 Amps
Max Charge Amps	208.575 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	589
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.786796 lbs
