Furnish New Battery Exide Battery Marathon L XL 12V L12V85 FM6

Name: Furnish_New_Battery_Exide_Battery_Marathon_L_XL_12V_L12V85_FM6
Brand: Pb_Ca_Sn_Ag_VRLA_AGM_841.png
SKU: Furnish_New_Battery_Exide_Battery_Marathon_L_XL_12V_L12V85_FM6
Price: 374.83 USD
Availability: InStock

Technology: Pb_Ca_Sn_Ag_VRLA_AGM_841.png
Furnish New Battery Exide Battery Marathon L XL 12V L12V85 FM6

$374.83

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Marathon L XL 12V L12V85 FM6

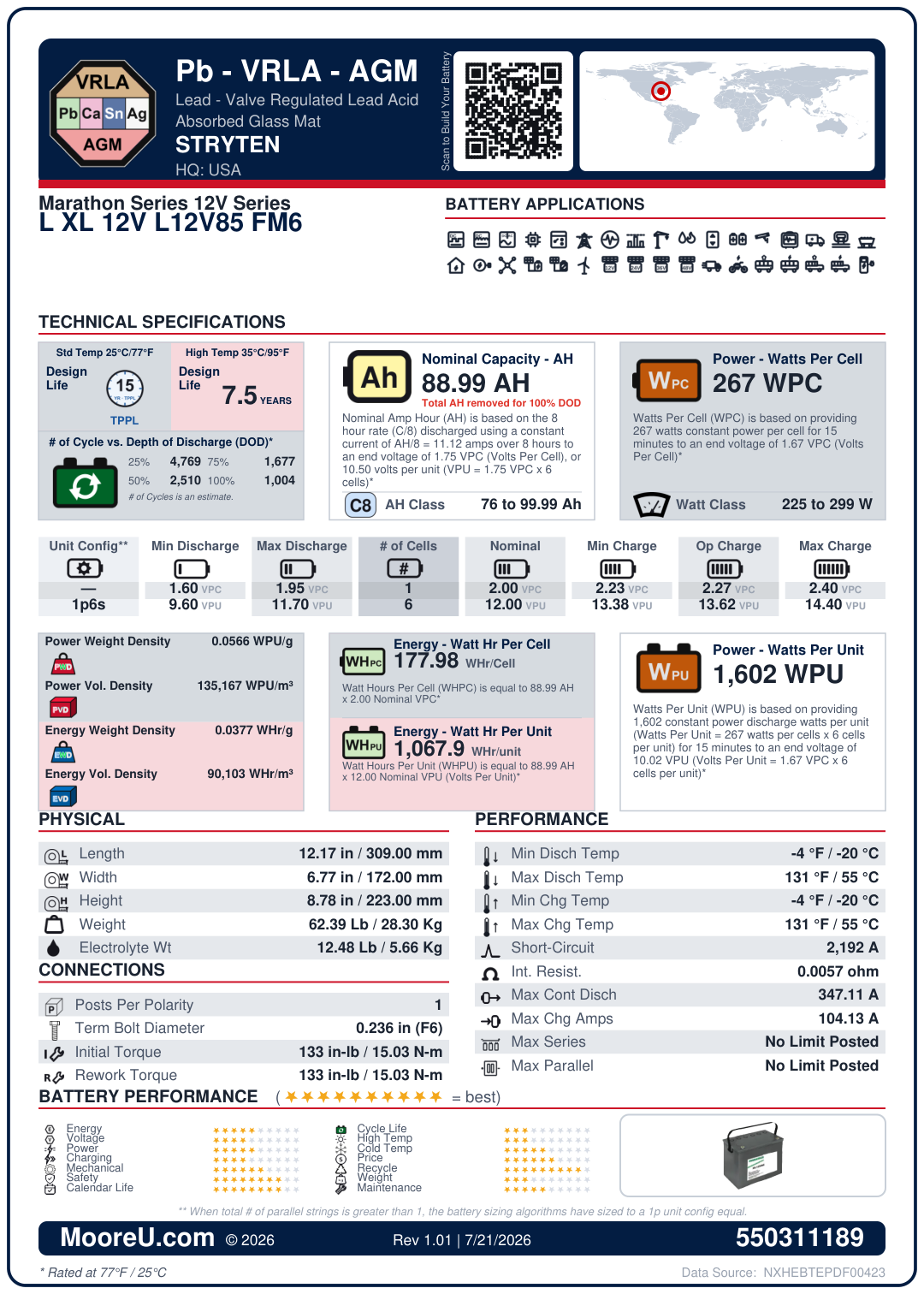

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Exide Battery Marathon L XL 12V L12V85 FM6
Adjustment	1
AH Per String	88.992
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.95
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	2192
Internal Resistance	0.0057 Ohms
Dimensions (L x W x H)	12.1653609 x 6.7716572 x 8.7795323 in
Weight	62.390746 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (F6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	F6
FOB	T
Max Continuous Discharge	347.11 Amps
Max Charge Amps	104.133 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	267
Watts Per Cell Rating	15 min @ 1.67 VPC
Weight of Electrolyte	12.4781492 lbs
