Furnish New Battery Exide Battery Marathon M FT 6V M6V200FT FM6

Name: Furnish_New_Battery_Exide_Battery_Marathon_M_FT_6V_M6V200FT_FM6
Brand: Pb_Ca_Sn_VRLA_AGM.png
SKU: Furnish_New_Battery_Exide_Battery_Marathon_M_FT_6V_M6V200FT_FM6
Price: 430.37 USD
Availability: InStock

Technology: Pb_Ca_Sn_VRLA_AGM.png
Furnish New Battery Exide Battery Marathon M FT 6V M6V200FT FM6

$430.37

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Marathon M FT 6V M6V200FT FM6

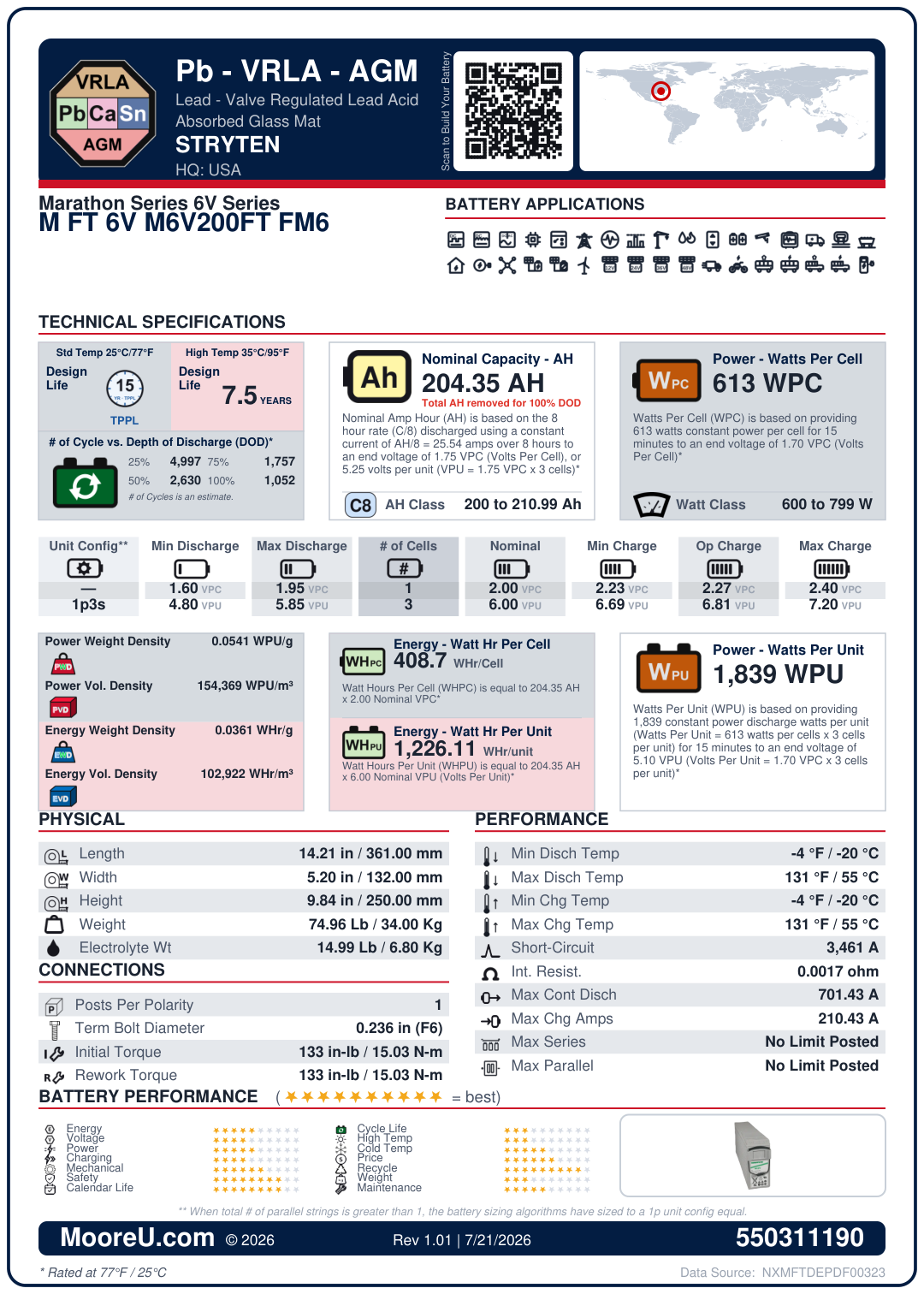

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Exide Battery Marathon M FT 6V M6V200FT FM6
Adjustment	1
AH Per String	204.352
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	3
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.94
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	3461
Internal Resistance	0.0017 Ohms
Dimensions (L x W x H)	14.2126061 x 5.1968532 x 9.842525 in
Weight	74.95708 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (F6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	F6
FOB	T
Max Continuous Discharge	701.43 Amps
Max Charge Amps	210.429 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	613
Watts Per Cell Rating	15 min @ 1.7 VPC
Weight of Electrolyte	14.991416 lbs

Part Number	Description	Dimensions (L x W x H)	Max Capacity
Furnish New Battery Enclosure UBC52 150AH 150AH FT TEL12 145FW ccpower.com	na	36.000 x 31.500 x 10.1 in	60 units Quantity
Furnish New Battery Enclosure UBC64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 31.500 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBC77 150AH 150AH FT TEL12 145FW ccpower.com	na	55.000 x 34.300 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBR64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 30.490 x 10.1 in	75 units Quantity
Furnish New Battery Enclosure BR62 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BR62S 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC40 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC52 150AH 150AH FT TEL12 145FW ccpower.com	na	36.000 x 31.500 x 10.1 in	60 units Quantity
Furnish New Battery Enclosure UBC64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 31.500 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBC77 150AH 150AH FT TEL12 145FW ccpower.com	na	55.000 x 34.300 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBR64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 30.490 x 10.1 in	75 units Quantity
Furnish New Battery Enclosure BC25 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	29.000 x 31.500 x 10.1 in	24 units Quantity
Furnish New Battery Enclosure BR62 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BR62S 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC40 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC52 150AH 150AH FT TEL12 145FW ccpower.com	na	36.000 x 31.500 x 10.1 in	60 units Quantity
Furnish New Battery Enclosure UBC64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 31.500 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBC77 150AH 150AH FT TEL12 145FW ccpower.com	na	55.000 x 34.300 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBR64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 30.490 x 10.1 in	75 units Quantity
Furnish New Battery Enclosure BC25 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	29.000 x 31.500 x 10.1 in	24 units Quantity
Furnish New Battery Enclosure BR62 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BR62S 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC40 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC52 150AH 150AH FT TEL12 145FW ccpower.com	na	36.000 x 31.500 x 10.1 in	60 units Quantity
Furnish New Battery Enclosure UBC64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 31.500 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBC77 150AH 150AH FT TEL12 145FW ccpower.com	na	55.000 x 34.300 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBR64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 30.490 x 10.1 in	75 units Quantity
Furnish New Battery Enclosure BC25 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	29.000 x 31.500 x 10.1 in	24 units Quantity
Furnish New Battery Enclosure BC40 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC25 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	29.000 x 31.500 x 10.1 in	24 units Quantity
Furnish New Battery Enclosure BR62 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BR62S 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC40 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC52 150AH 150AH FT TEL12 145FW ccpower.com	na	36.000 x 31.500 x 10.1 in	60 units Quantity
Furnish New Battery Enclosure UBC64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 31.500 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBC77 150AH 150AH FT TEL12 145FW ccpower.com	na	55.000 x 34.300 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBR64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 30.490 x 10.1 in	75 units Quantity
Furnish New Battery Enclosure BR62 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BR62S 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC40 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC52 150AH 150AH FT TEL12 145FW ccpower.com	na	36.000 x 31.500 x 10.1 in	60 units Quantity
Furnish New Battery Enclosure UBC64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 31.500 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBC77 150AH 150AH FT TEL12 145FW ccpower.com	na	55.000 x 34.300 x 10.1 in	90 units Quantity
Furnish New Battery Enclosure UBR64 150AH 150AH FT TEL12 145FW ccpower.com	na	46.500 x 30.490 x 10.1 in	75 units Quantity
Furnish New Battery Enclosure BC25 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	29.000 x 31.500 x 10.1 in	24 units Quantity
Furnish New Battery Enclosure BC40 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC25 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	29.000 x 31.500 x 10.1 in	24 units Quantity
Furnish New Battery Enclosure BR62 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BR62S 150AH 150AH FT TEL12 145FW ccpower.com	na	50.000 x 25.000 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure UBC40 150AH 150AH FT TEL12 145FW ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com	na	30.500 x 31.500 x 10.1 in	48 units Quantity
Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle	29.000 x 14.500 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com	MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two	34.000 x 15.250 x 10.82 in	16 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a	28.500 x 26.250 x 10.82 in	20 units Quantity
Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com	Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated	28.500 x 26.250 x 10.82 in	20 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com	na	25.300 x 23.150 x 10.82 in	8 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com	na	49.500 x 36.560 x 12.3 in	105 units Quantity
