Furnish New Battery Exide Battery Marathon M FT 12V M12V50FT M6

Name: Furnish_New_Battery_Exide_Battery_Marathon_M_FT_12V_M12V50FT_M6
Brand: Pb_Ca_Sn_Ag_VRLA_AGM_841.png
SKU: Furnish_New_Battery_Exide_Battery_Marathon_M_FT_12V_M12V50FT_M6
Price: 202.69 USD
Availability: InStock

Technology: Pb_Ca_Sn_Ag_VRLA_AGM_841.png
Furnish New Battery Exide Battery Marathon M FT 12V M12V50FT M6

$202.69

Material Value Cost Due from Customer.

Description
Reference Docs
Battery Model
Housing
Build My Battery
Recycle My Battery
Glossary

Build my Battery

Recycle My Battery

Glossary

Furnish New Battery Exide Battery Marathon M FT 12V M12V50FT M6

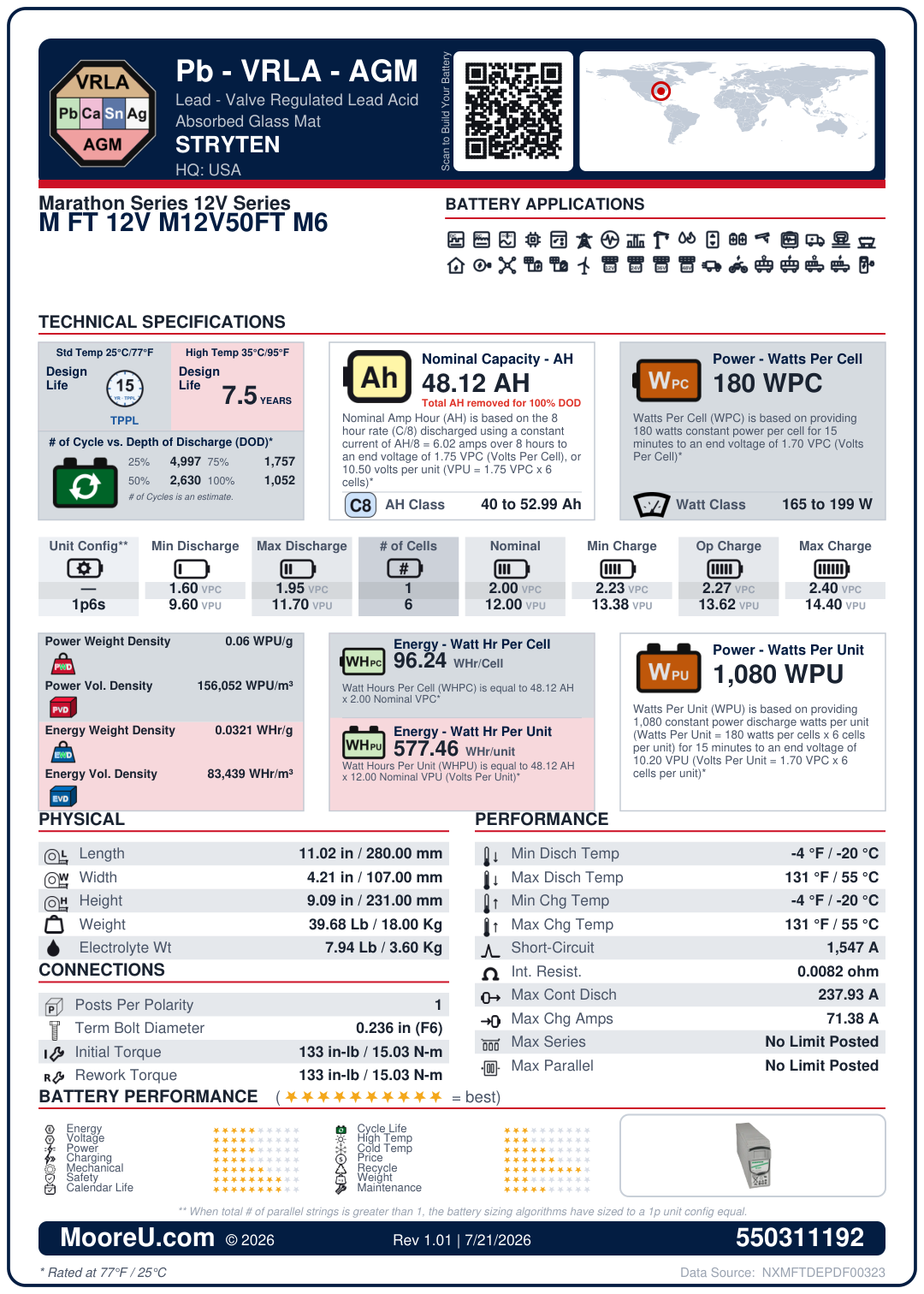

Download Technical Data Sheet

Download Product Safety Data Sheet

Download Marketing Flyer

Download Product Install/Operations Manual

Battery Model	Exide Battery Marathon M FT 12V M12V50FT M6
Adjustment	1
AH Per String	48.1216
AH Per String Rating	8 hr @ 1.75 VPC
Cells Per Unit	6
Nominal VPC	2
Model KWH	1
Charge VPC	2.4 (Min: 2.37, Max: 2.4)
Discharge VPC	Min: 1.6, Max: 1.94
Operational Temp Comp	-0.003 V/°C/cell
Cycle Temp Comp	-0.004 V/°C/cell
Discharge Temp Range	-20°C to 55°C
Charge Temp Range	-20°C to 55°C
ISC Amps	1547
Internal Resistance	0.0082 Ohms
Dimensions (L x W x H)	11.023628 x 4.2126007 x 9.0944931 in
Weight	39.68316 lbs
Number of Posts	1
Terminal Bolt Diameter	0.236 in (F6 mm)
Torque (Initial / Maintenance)	133 / 133 in-lbs
Container	V0
Terminal	F6
FOB	T
Max Continuous Discharge	237.93 Amps
Max Charge Amps	71.379 Amps
Max In Series / Parallel	0 / 0
Watts Per Cell (15min 1.67)	180
Watts Per Cell Rating	15 min @ 1.7 VPC
Weight of Electrolyte	7.936632 lbs
