Furnish New Battery Exide Battery Marathon M FT 12V M12V190FT FM6
Technology: Pb_Ca_Sn_Ag_VRLA_AGM_841.pngFurnish New Battery Exide Battery Marathon M FT 12V M12V190FT FM6
$819.08
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery

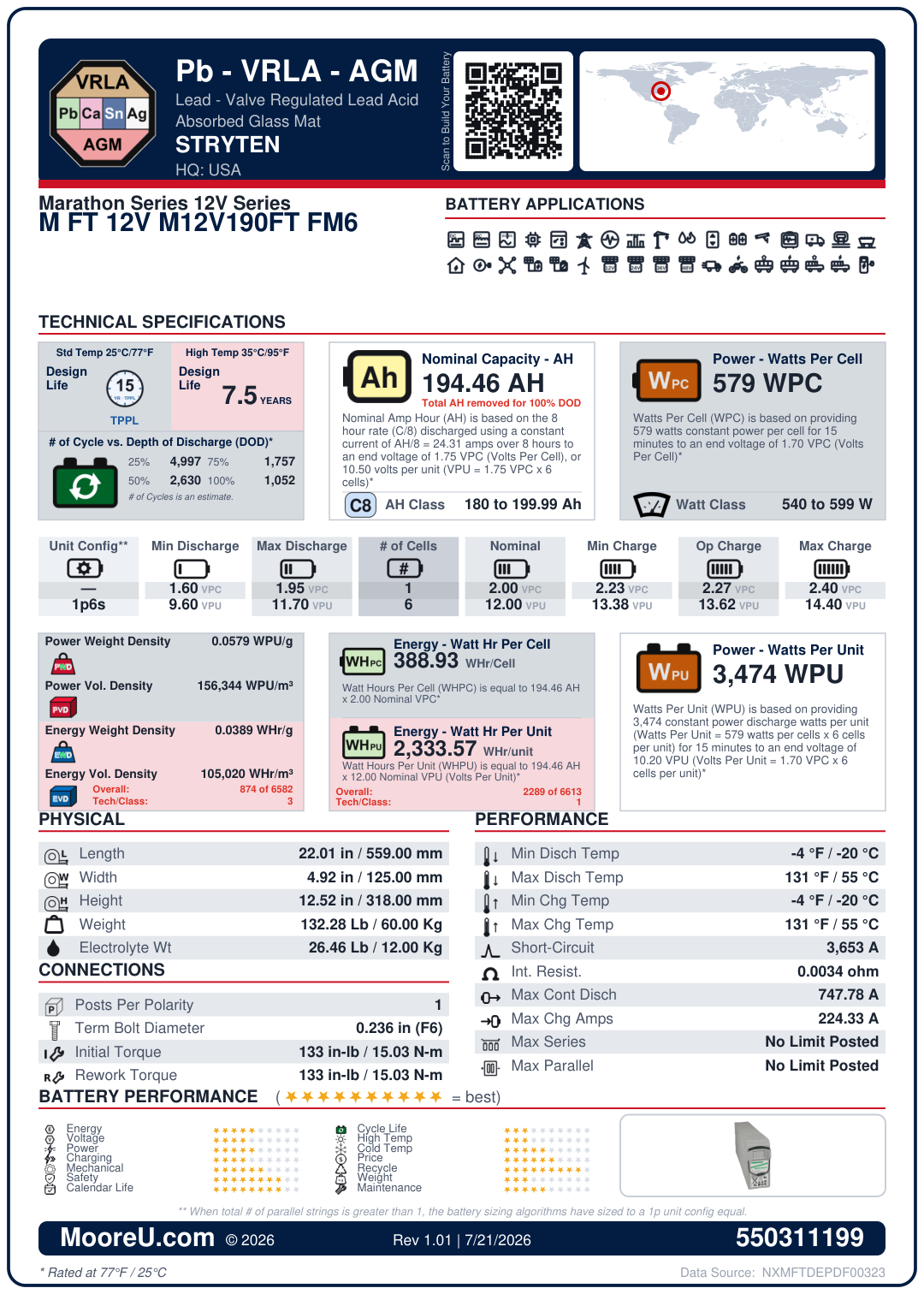

Furnish New Battery Exide Battery Marathon M FT 12V M12V190FT FM6
| Battery Model | Exide Battery Marathon M FT 12V M12V190FT FM6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 194.464 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 2 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 3653 |
| Internal Resistance | 0.0034 Ohms |
| Dimensions (L x W x H) | 22.0078859 x 4.9212625 x 12.5196918 in |
| Weight | 132.2772 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (F6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | F6 |
| FOB | T |
| Max Continuous Discharge | 747.78 Amps |
| Max Charge Amps | 224.334 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 579 |
| Watts Per Cell Rating | 15 min @ 1.7 VPC |
| Weight of Electrolyte | 26.45544 lbs |
