Furnish New Battery Exide Battery Sonnenschein Rail 6V SR6V 180A Post
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery Exide Battery Sonnenschein Rail 6V SR6V 180A Post
$369.04
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery
Furnish New Battery Exide Battery Sonnenschein Rail 6V SR6V 180A Post

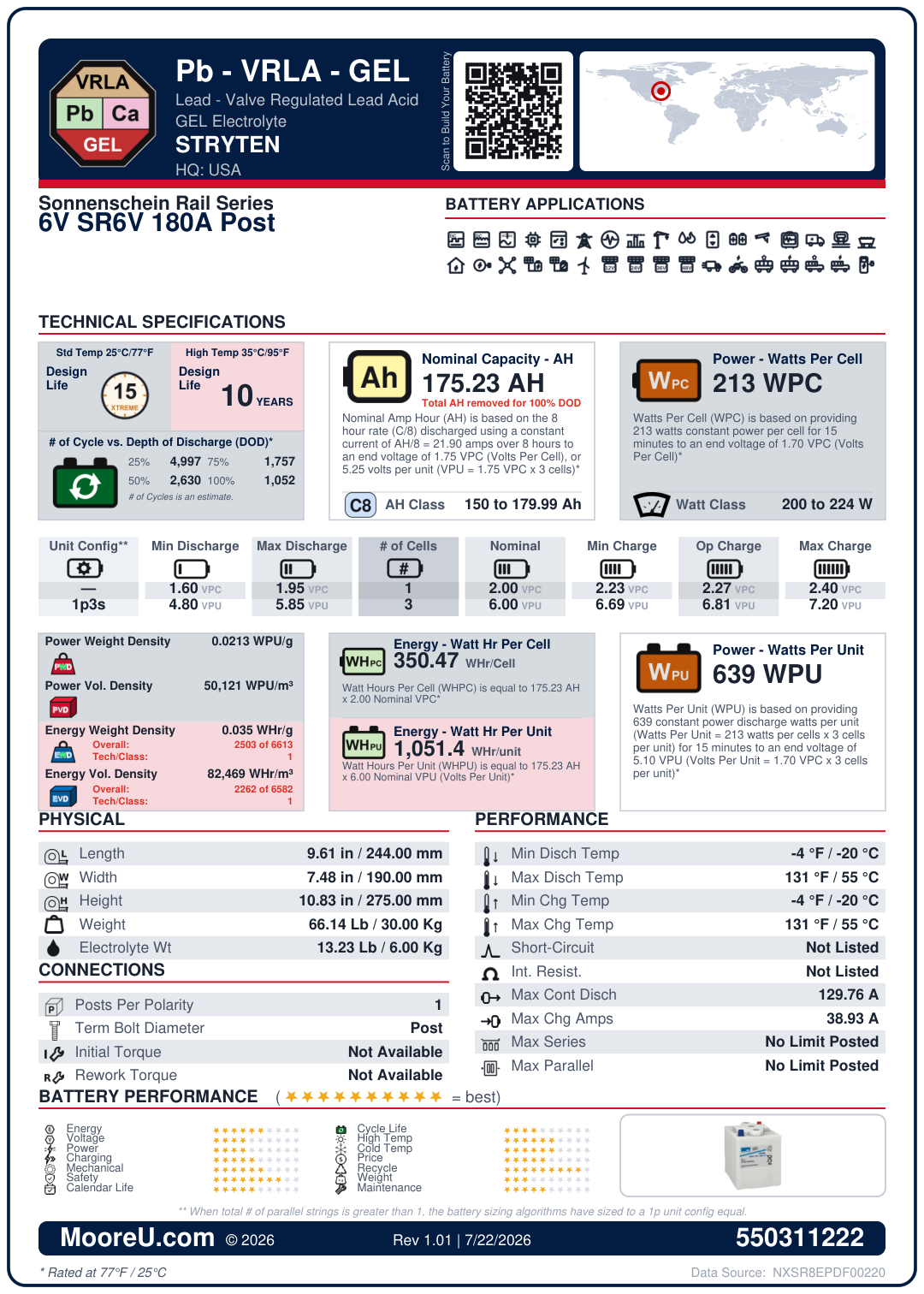

| Battery Model | Exide Battery Sonnenschein Rail 6V SR6V 180A Post |
|---|---|
| Adjustment | 1 |
| AH Per String | 175.2331886 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 3 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 9.6063044 x 7.480319 x 10.8267775 in |
| Weight | 66.1386 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0 in (Post mm) |
| Torque (Initial / Maintenance) | 0 / 0 in-lbs |
| Container | V0 |
| Terminal | Post |
| FOB | T |
| Max Continuous Discharge | 129.7582714 Amps |
| Max Charge Amps | 38.92748143 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 213 |
| Watts Per Cell Rating | 15 min @ 1.7 VPC |
| Weight of Electrolyte | 13.22772 lbs |
