Front of card
Back of card
Furnish New Battery Exide Battery Sonnenschein Rail 12V SR12V 65G PM6
Technology: Pb_Ca_VRLA_GEL.pngFurnish New Battery Exide Battery Sonnenschein Rail 12V SR12V 65G PM6
$266.53
Material Value Cost Due from Customer.
Build my Battery
Recycle My Battery

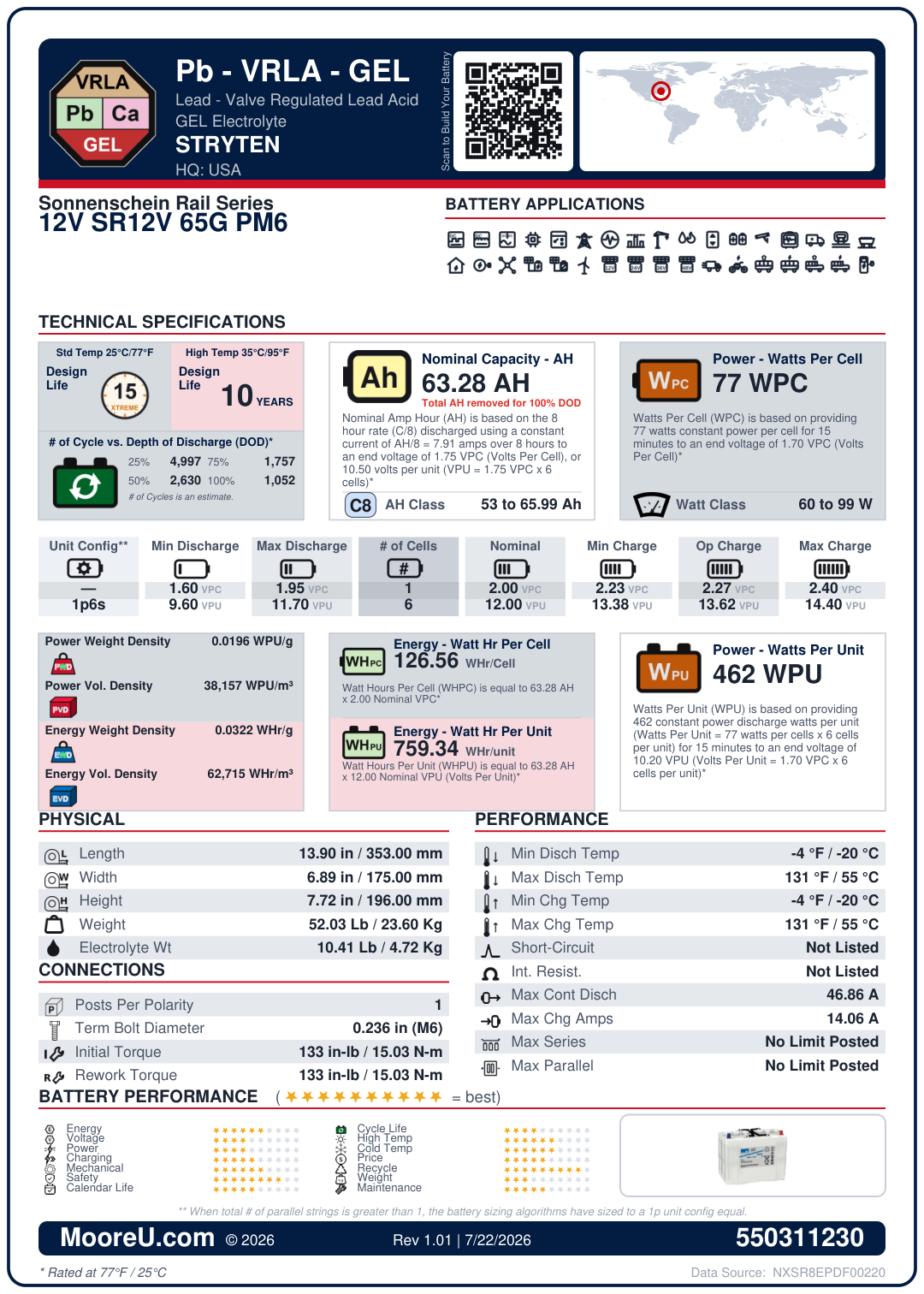

Furnish New Battery Exide Battery Sonnenschein Rail 12V SR12V 65G PM6
| Battery Model | Exide Battery Sonnenschein Rail 12V SR12V 65G PM6 |
|---|---|
| Adjustment | 1 |
| AH Per String | 63.27865143 |
| AH Per String Rating | 8 hr @ 1.75 VPC |
| Cells Per Unit | 6 |
| Nominal VPC | 2 |
| Model KWH | 1 |
| Charge VPC | 2.4 (Min: 2.37, Max: 2.4) |
| Discharge VPC | Min: 1.6, Max: 1.94 |
| Operational Temp Comp | -0.003 V/°C/cell |
| Cycle Temp Comp | -0.004 V/°C/cell |
| Discharge Temp Range | -20°C to 55°C |
| Charge Temp Range | -20°C to 55°C |
| ISC Amps | 0 |
| Internal Resistance | 0 Ohms |
| Dimensions (L x W x H) | 13.8976453 x 6.8897675 x 7.7165396 in |
| Weight | 52.029032 lbs |
| Number of Posts | 1 |
| Terminal Bolt Diameter | 0.236 in (M6 mm) |
| Torque (Initial / Maintenance) | 133 / 133 in-lbs |
| Container | V0 |
| Terminal | M6 |
| FOB | T |
| Max Continuous Discharge | 46.85715357 Amps |
| Max Charge Amps | 14.05714607 Amps |
| Max In Series / Parallel | 0 / 0 |
| Watts Per Cell (15min 1.67) | 77 |
| Watts Per Cell Rating | 15 min @ 1.7 VPC |
| Weight of Electrolyte | 10.4058064 lbs |
| Part Number | Description | Dimensions (L x W x H) | Max Capacity |
|---|---|---|---|
| Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com | na | 30.500 x 31.500 x 10.1 in |
32 units |
| Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com | na | 30.500 x 31.500 x 10.1 in |
32 units |
| Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com | na | 30.500 x 31.500 x 10.1 in |
32 units |
| Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com | na | 30.500 x 31.500 x 10.1 in |
32 units |
| Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com | na | 30.500 x 31.500 x 10.1 in |
32 units |
| Furnish New Battery Enclosure BC40 Spares 180AH 180AH FT UPS12 745MRF ccpower.com | na | 30.500 x 31.500 x 10.1 in |
32 units |
| Furnish New Battery Enclosure MNBE A (1 shelf) 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Holds three group 31 or 27 sealed batteries per shelf side by side or two per shelf end to end. Also holds one 8D per shelf. Two cabinets can be stacked horizontal or vertical for expansion. Remove middle | 29.000 x 14.500 x 10.82 in |
8 units |
| Furnish New Battery Enclosure MNBE C (3 Shelf) 8D 8D midnitesolar.com | MNBE-C Battery Enclosure with locking door and three shelves. Holds twelve group 31 or sealed golf cart sized batteries and even the 14" tall PVX-3050T from Concorde. MNBE-C battery enclosure accepts MNEDC175 or 250 breakers. Gray powder coated steel. Two | 34.000 x 15.250 x 10.82 in |
16 units |
| Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Outdoor 3R rain type design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated a | 28.500 x 26.250 x 10.82 in |
12 units |
| Furnish New Battery Enclosure MNBE 8D2x2 (1 shelf) Deluxe e/w 250A Breaker and 4/0 cabling 8D 8D midnitesolar.com | Battery Enclosure with locking door and one shelf. Outdoor 3R rain proof design. This enclosure is not listed as a 3R enclosure but it is built to 3R standards, so while it is a listed enclosure it is not officially listed for outdoor use. Powder coated | 28.500 x 26.250 x 10.82 in |
12 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
6 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
6 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
6 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
6 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
6 units |
| Furnish New Battery Enclosure 8G8D 8D 8D ccpower.com | na | 25.300 x 23.150 x 10.82 in |
6 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 800WPC 800W 16V 16HX800F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
| Furnish New Battery Enclosure UBC84 925WPC 925W 16V 16HX925F FR ccpower.com | na | 49.500 x 36.560 x 12.3 in |
75 units |
